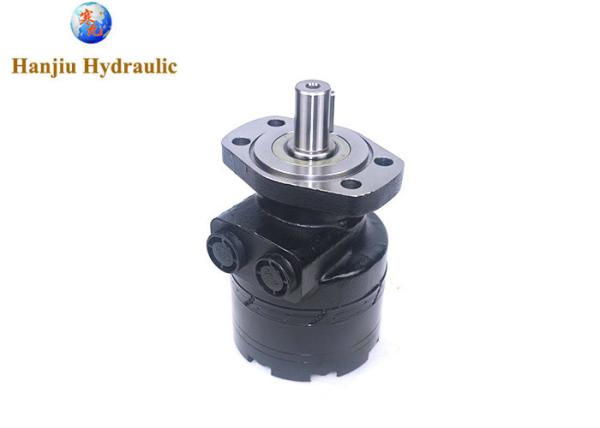

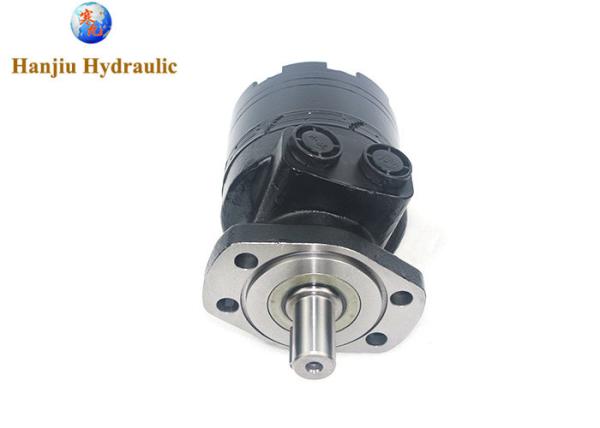

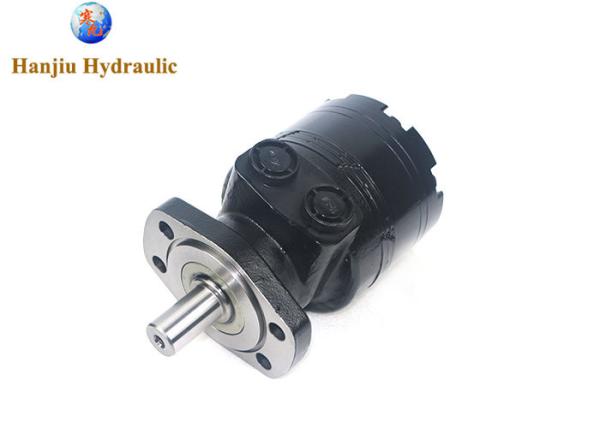

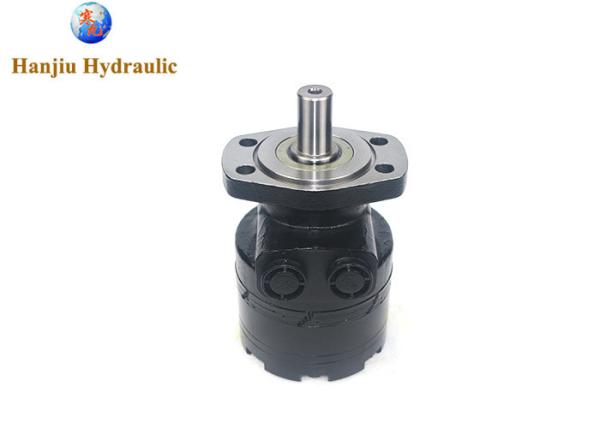

BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030
BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030
BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030
BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030
BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030
BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030
BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030
BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030
Specifications
Brand Name :
HANJIU
Model Number :
BMER-2-350-MS-RW
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
170 usd/pc
Payment Terms :
T/T,Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
box, pallet
Product :
Low Speed High torque Hydraulic Motor
Model No. :
BMER-2-350-MS-RW
Size :
350ml/r
Flange :
Magneto Mount 4-Hole flange
Shaft :
25.4 mm key shaft
Rotation :
CCW
Port :
7/8-14UNF
Material :
Cast iron
Description

BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030


Quick review:


Model no.:

TG0335MS030=BMER-2-350-ms-RW

matching White motor RE530/531 ;Parker TG series motor


displacement 350 ml/r
flange Magneto mount 4-hole
pilot 82.55*2.8
ports BMER-2-350-MS-RW
output shaft
25.4 mm straight shaft
rotation right
paint black


Specification:


Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.)
118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90


BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030


BMER-350 magneto 4hole flange 1inch key shaft high torque motor for auger drilling TG0335MS030

The high performance of the Hanjiu orbital motor is based on three core design principles:

Differential gearing in conjunction with eccentricity: forces planetary motion and creates a variable-volume chamber;

Precise flow timing: ensures that oil flows in and out of the motor in precise phase; Compact space integration: all components work together precisely to achieve high torque density and low noise. Precise flow sequencing: ensures that oil enters and exits the motor precisely in accordance with the phase of motion;

Compact space integration: all components are precisely coordinated to achieve high torque density and low noise.


The outstanding performance of orbital motor is based on the in-depth mastery of the core elements such as stator and rotor tooth shape, eccentricity, motion conversion mechanism and synchronization of flow distribution. As an outstanding supplier of orbital motors, Hanjiu relies on many years of specialized production experience and continuous process innovation to ensure the precise fit and durability of the internal structure of each motor, providing customers around the world with efficient and stable hydraulic drive solutions.
