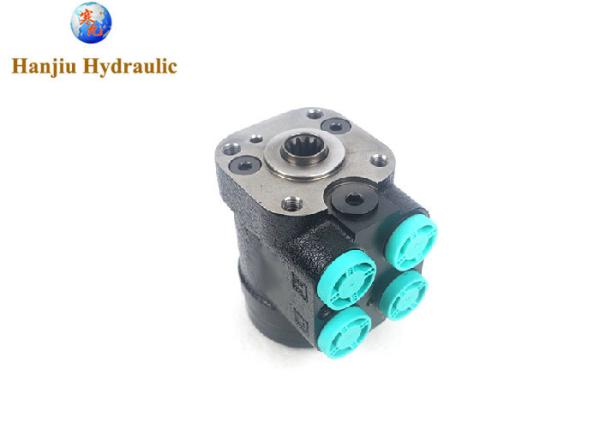

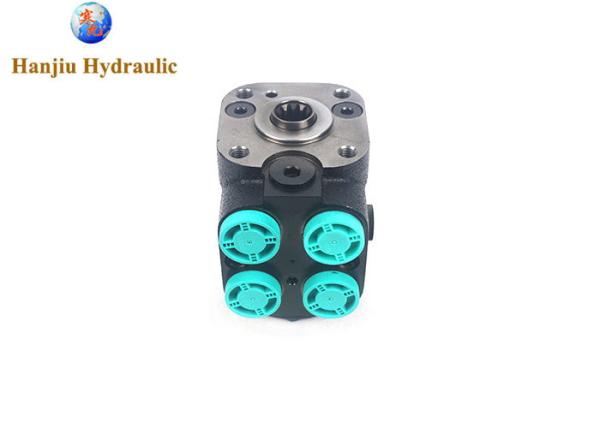

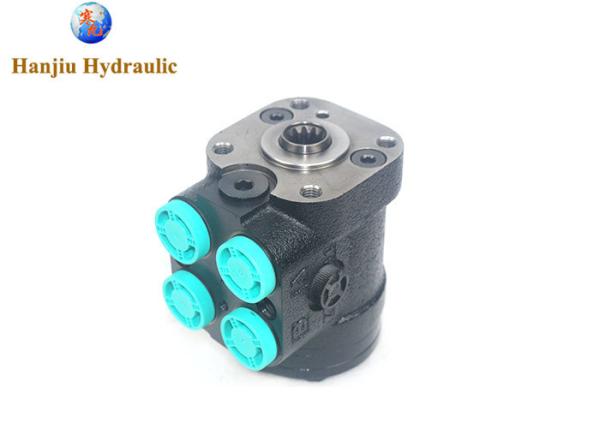

Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Specifications
Brand Name :
HANJIU
Model Number :
101S-5T-80
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 Sets
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000000 Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Product Name :
Hydrostatic unit,steering valve
Oil port :
M20
Quality :
oem quality
Material :
cast iron
Displacement :
80cc
Applications :
tractors,loaders
Description


Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports



Hanjiu hydraulic supply OSPB ON, CN ,LS series hydraulic steering units,


used on wheel loaders, backhoe loaders, pushback tractors, forklifts....


same quality, high performance


specification:


Parameters Series
101-*-***-**-*
Function code 1,2,4 1,4
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 17.5
Relief Valve Pressure Settings ( MPa) 06,07,08,10,12,14,15,16,17.5
Shock Valve Pressure Settings ( MPa) 12,13,14,16,18,20,21,22,23.5
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176



displacement 80cc
type 101s series
control type load sensing
max pressure 17.5mpa
max back pressure 2.5mpa
port threads M20*1.5 o-ring
LS ports M12*1.5o-ring


Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports

Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports

Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports


Hanjiu technology produce the a series hydraulic steering units/hydraulic orbitrols,

with the same specification as OSPM, OSPB, OSPC, HKU, HKUS,XCEL-45

widely used on tractors, backhoe loaders, wheelloaders...


109 series

101 series

101s series

060 series



Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
