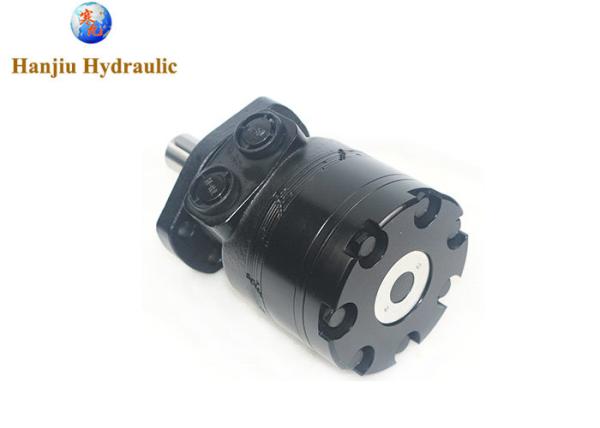

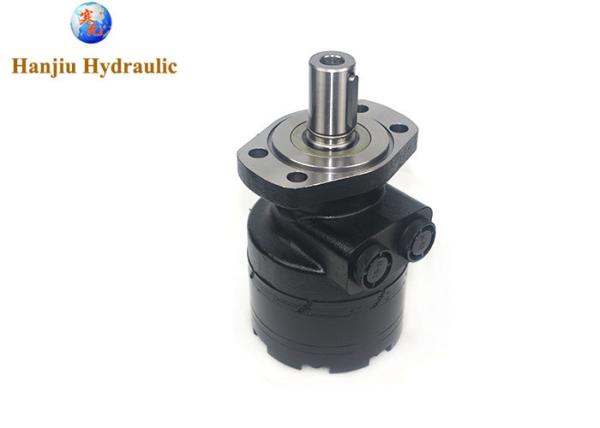

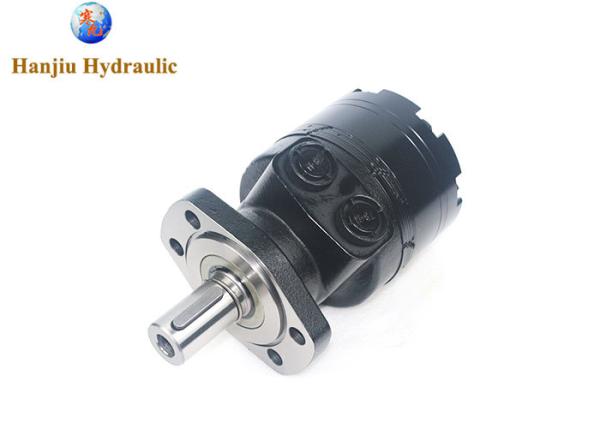

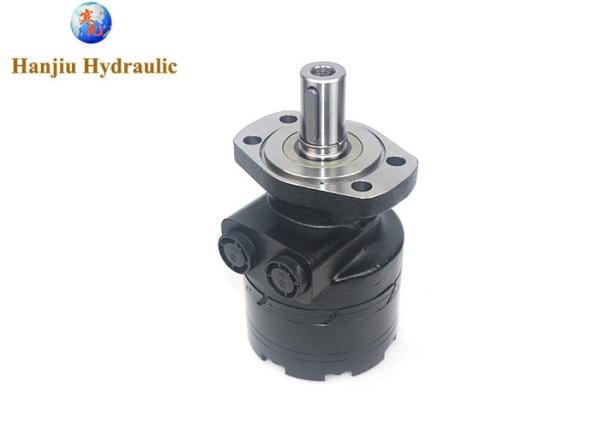

TG0335MS020 hydrotorque motor, 4 bolts flange, straight shaft with G1/2 ports BMER-335

Quick review:

Model no.:

TG0335MS020=BMER-2-350-ms-g2

matching White motor RE530/531 ;Parker TG series motor

Specification:

Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
	int.	60	75	85	85	90	95	95	90	90	90	90

orbital motor has many significant advantages. Its ingenious and compact design makes it small and lightweight, and it can be easily adapted to all kinds of equipment with strict space layout requirements. In terms of power output, the orbital motor excels in providing high torque output, even at low speeds, and is able to steadily provide strong power to the equipment, ensuring efficient operation. Meanwhile, orbital motor has a good speed regulation performance and can realize stepless speed regulation, which can precisely adjust the speed according to different working conditions to meet diversified working requirements. In addition, orbital motor runs very smoothly and produces very little noise and vibration, creating a stable and low-noise operating environment for the equipment, which effectively prolongs the service life of the equipment.

Hanjiu has been deeply cultivating in the orbital motor field for many years, and has accumulated profound technical background and rich practical experience. The company has gathered a group of professional R&D talents, who focus on the research and innovation of orbital motor, keep up with the cutting-edge technology of the industry, and constantly optimize the product design and manufacturing process, just to create a better performance and more reliable quality of orbital motor, from the careful selection of raw materials, to the strict quality control during the production process, to the comprehensive testing of the products before leaving the factory, Hanjiu insists on the attitude of excellence to ensure that no detail is overlooked. HANJIU upholds the attitude of excellence and does not spare any detail to ensure that every orbital motor that leaves the factory can meet or even exceed the expectations of customers.

The orbital motor supplied by Hanjiu is widely used in many fields. In the field of construction machinery, orbital motor drives the slewing mechanism of excavators, the working device of loaders, etc., which helps these large-scale machines work efficiently; in the field of agricultural machinery, it provides stable power for seeders, harvesters, etc., which promotes the mechanization process of agricultural production; in the field of logistic equipments, orbital motor drives conveyor belts, stackers, etc., which improves the efficiency of logistics and transportation. In logistics equipment, orbital motor drives conveyor belts, stacker cranes, etc. to improve the efficiency of logistics transportation. With excellent performance and stable quality, Hanjiu orbital motor has won the trust and praise of many customers.

If you are looking for high quality and high performance orbital motor, HANJIU is undoubtedly your best choice. With professional technology, high quality products and perfect service, we will provide strong power for your equipment and help you stand out in the industry.
