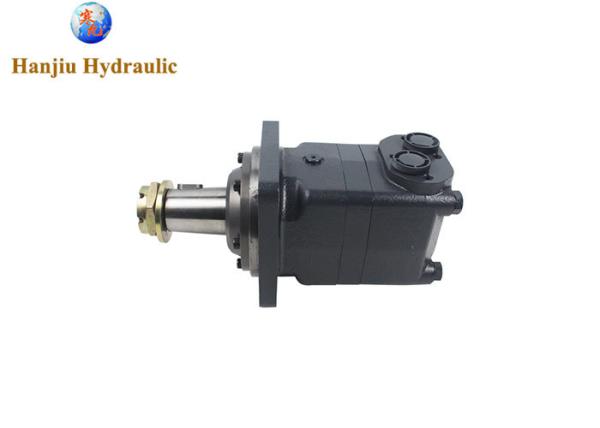

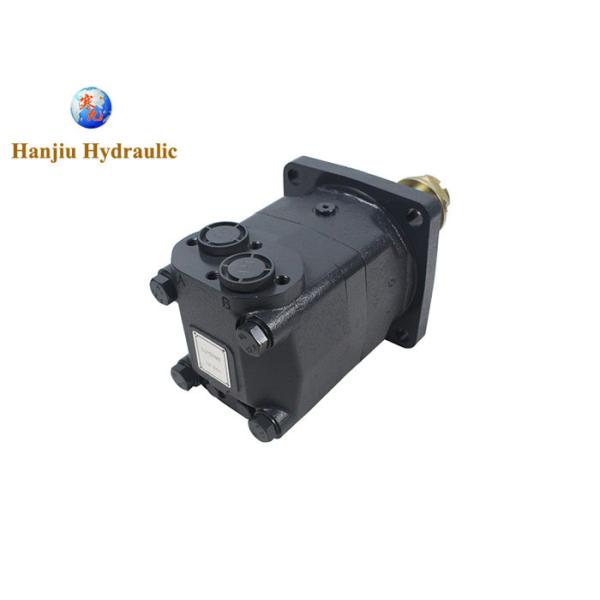

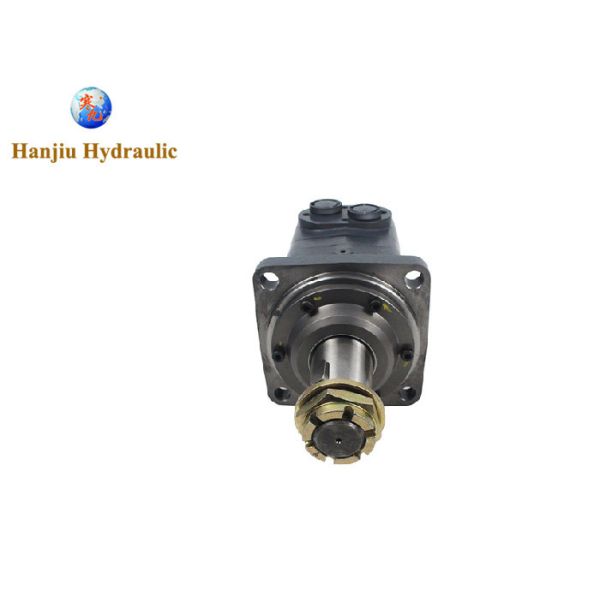

hydraulic orbital motor OMV800,BMV800 drive motor with tapered shaft for beet harvesters

The HANJIU OMV800,BMV800 hydraulic gerotor motor is installed on Holmer and Ropa sugar beet harvesters,

type code no.272115

Details as below

Geometrical displacement (cm3/r): 801.8
Max. Speed (min-1 [rpm]): 250/300
Max. Torque (Nm [lbf·in]): 1880 [16640]
Max. Output (kW [hp]): 42.5 [57.0]
Max. Oil flow (l/min [USgal/ min]): 200 [52.8]
Max. Inlet pressure (bar [psi]): 210 [3050]

Main Specifications:

orbital motor is widely used in several core systems of harvesters:

Walking drive system: In the hydrostatic transmission system, it utilizes its low-speed and high-torque characteristics to drive the walking wheels or tracks of the harvester either directly or through a simple deceleration mechanism. By adjusting the hydraulic oil flow, the travel speed can be infinitely adjusted to ensure the flexibility and stability of the machine in complex terrain such as slopes and mud.

Cutting platform control system: Provide strong and smooth driving force for the rapid elevation of the cutting platform, and support the automatic profiling function of the cutting platform according to the terrain (control the elevation cylinder).

Material Conveyor System: Drive the conveyor chain, agitator, elevator and other mechanisms between the cutting platform to the threshing drum and the cleaning device to the grain bin to provide continuous and stable speed and torque to ensure the smooth and unobstructed flow of crop materials.

Attachment drives: for bin unloading agitators, straw chopping devices or baling devices, etc. The modular design facilitates integration and installation.
