P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic
P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic
P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic
P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic
P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic
P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic
P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic
P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic
Specifications
Brand Name :
HANJIU
Model Number :
2P50DC
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
Contact the seller to get a quote
Payment Terms :
L/C,T/T,Western Union,Western Union
Supply Ability :
300000 sets per year
Delivery Time :
25 - 35 work days
Packaging Details :
Carton, Box, Pallets
Item :
monoblock valve
Material :
cast iron
Apply to :
tractors,loaders
Spool :
2banks
Max operation pressure :
250 bar
control type :
electric control type
Description

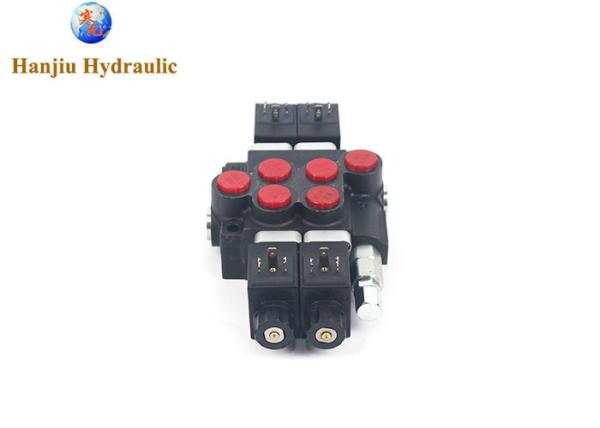

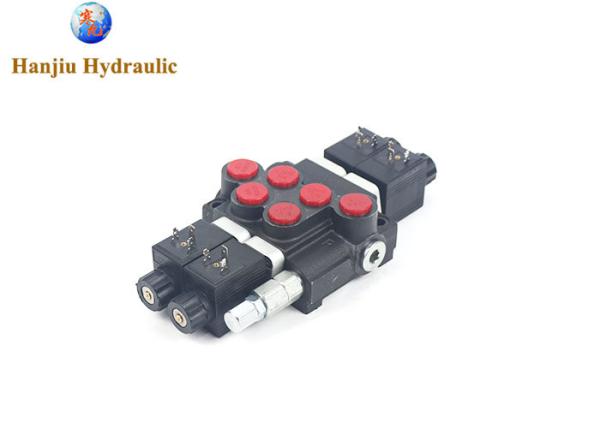

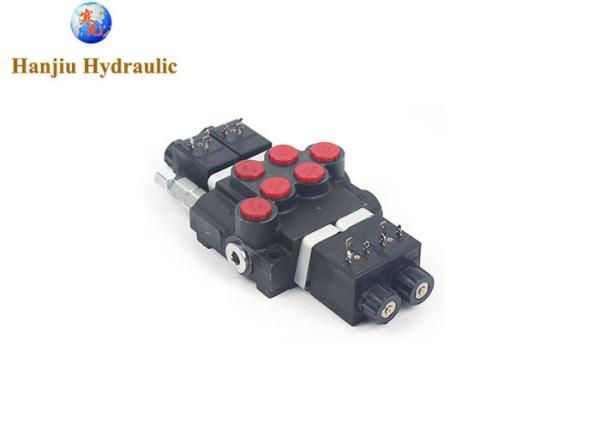

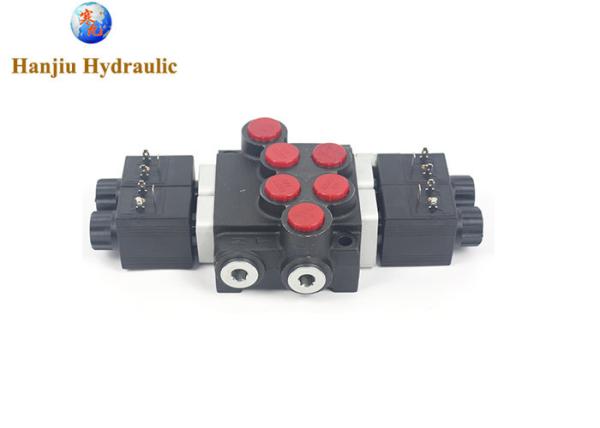

P50 Solenoid 2 Spool Monoblock Directional Valve 12VDC,250Bar hydraulic electric valve


type details


flow rate:50liters

spool type:2spools

pressure:200bar

inlet port:G1/2

working port:G3/8

control: 3position double acting

outlet port:G1/2

voltage:12VDC



Control type:
electro-hydraulic,solenoid


Circuit type: parallel


Application :


Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles



flow rate 50 liters
number of spools 2 banks
inlet section valve side inlet, with relief valve
relief valve set pressure 200bar
inlet port size G1/2
spool type 3 positon, double acting
handle side arrangement standard type
spool cap side arrangement 3position, spring return,manual control,detent control,
working section arrangement standard type
work port size G3/8
outlet section type top outlet,side
outlet port size G1/2



P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic

P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic

P50 2 Spool Monoblock Directional Valve 12VDC 250Bar HydraulicP50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic


similar order code

Z50-A-ES3-12VDC-G
Z50-A-ES3-24VDC-G
2Z50-AA-ES3-12VDC-G
2Z50-AA-ES3-24VDC-G
3Z50-AAA-ES3-12VDC-G
3Z50-AAA-ES3-24VDC-G
4Z50-AAAA-ES3-12VDC-G
4Z50-AAAA-ES3-24VDC-G
5Z50-AAAAA-ES3-12VDC-G
5Z50-AAAAA-ES3-24VDC-G
6Z50-AAAAAA-ES3-12VDC-G
6Z50-AAAAAA-ES3-24VDC-G
7Z50-AAAAAAA-ES3-12VDC-G
7Z50-AAAAAAA-ES3-24VDC-G




P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic



P50 2 Spool Monoblock Directional Valve 12VDC 250Bar Hydraulic

As a core component in a hydraulic system, the stability and reliability of the hydraulic directional valve is critical to the operation of the entire system. Through regular maintenance and repair, as well as effective treatment of common failures, you can ensure that the hydraulic directional valves continue to play a good performance in the complex and changing conditions. If the directional valve is seriously damaged, it needs to be replaced in time, Hanjiu company produces and sells high-quality hydraulic valves, the quality of these products is guaranteed, after-sales service in place, if you need, you can go to the official website of Hanjiu company to browse the relevant information, look forward to working with you.
