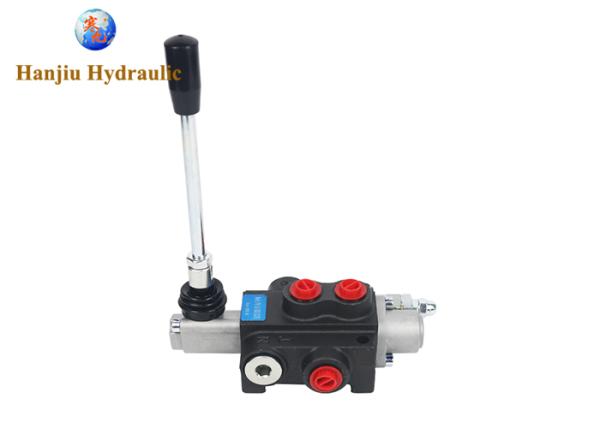

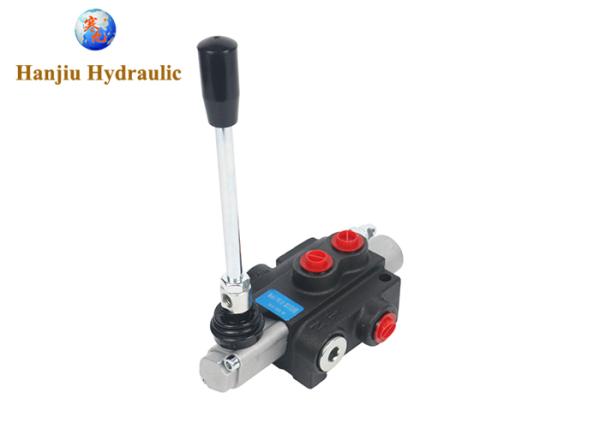

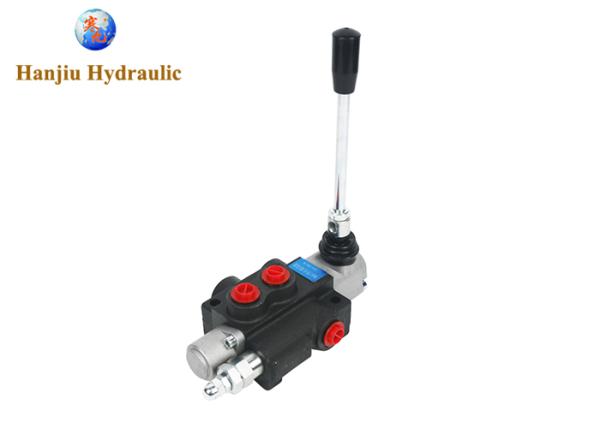

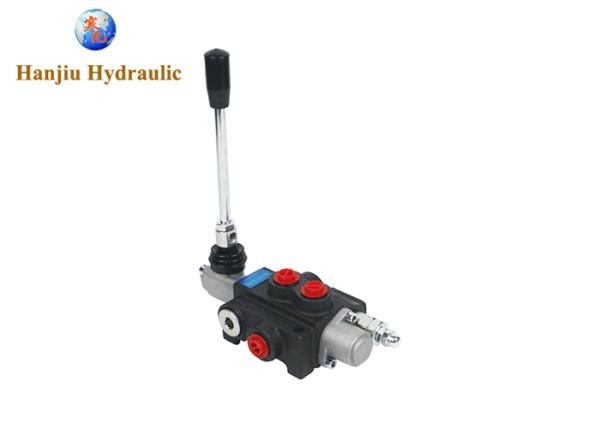

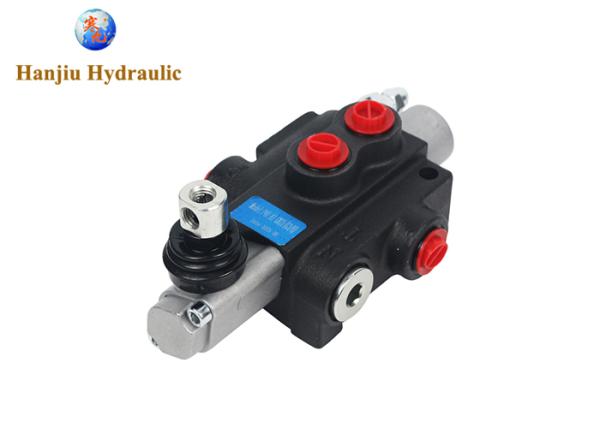

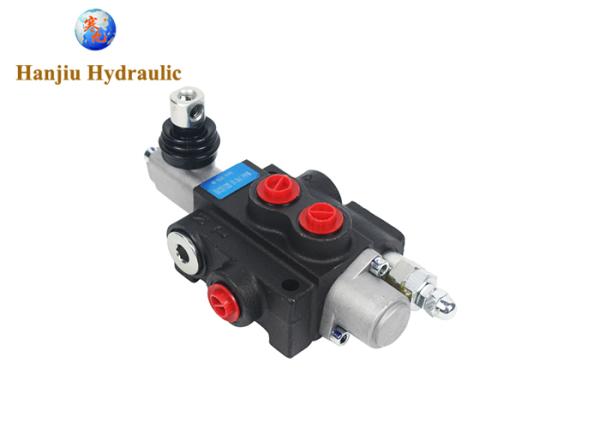

1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return
Specifications
Brand Name :
HANJIU
Model Number :
1P40
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
24.7 usd
Payment Terms :
T/T
Supply Ability :
300000 sets per year
Delivery Time :
10 - 15 work days
Packaging Details :
Carton, Box, Pallets
Item :
Directional Control Valve
Model :
1P40
Bank :
1 bank
Flow rate :
40 LPM
Operating pressure max :
250 Bar
Dividing Flow :
8 - 12 LPM
Control :
Manual
Application :
Agriculture Machine
Function :
Open center
Power Beyond Port :
Yes
Description


Welcome to China Hanjiu Hydraulic
The company manufacture MANY TYPE, MANY FLOW, hydraulic control valves for agriculture, engineering, special equipment

Serve OEM, hydraulic distributors
Welcome to contact us to learn how we can better assist your business



This product is P40 series hydraulic valve
Please see the product introduction below



1. Product parameters

Model No. 1 P40
Function Open center
Section 1 Spool
Flow Nominal flow rate 40 lpm ( 10.6 US GPM )
Pressure 250 bar max ( 3626 psi )
Temperature range -40℃ ~ 80℃ ( -40℉ ~ 176 ℉ )


1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return


1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return



2. Features & More function:

P40 series Hydraulic Directional Control Valves are economical monoblock type valves with various applications and features of

compact structure, low price, stable performance and high versatility.

Control type: manual, cable, pneumatic, electro-hydraulic, solenoid, joystick, etc.

Circuit type: parallel connection
Structure: Monoblock struction , 1-7 section



1P40 Monoblock Hydraulic Valve 40L Flow, 1 Spool, BSP Port G3/8, 3 Position Spring Return







3. Application

Tractors, both ends, flatbed trucks, truck-mounted cranes, agricultural equipment




4. More recommended products


Series Type Control
P40 Monoblock Manual
P40 Monoblock Solenoid
P40 Monoblock Electro-hydraulic
P40 Monoblock Electro-pneumatic
P40 Monoblock Pneumatic
P80 Monoblock Manual
P80 Monoblock Solenoid
P80 Monoblock Electro-hydraulic
P80 Monoblock Electro-pneumatic
P80 Monoblock Pneumatic
P120 Monoblock Manual
HSV Sectional Solenoid
HDCF50 Sectional
1 - 8		 Solenoid
DCV20 Sectional
1-6		 Manual
DCV40 Sectional
1 - 8		 Manual
DCV60 Sectional
1-12		 Manual
DCV100 Sectional
1-12		 Manual
DCV140 Sectional
1-12		 Manual
DCV200 Sectional
1-12		 Manual
DCV40 Sectional
1 - 8		 Pneumatic
DCV60 Sectional
1-12		 Pneumatic
DCV100 Sectional
1-12		 Pneumatic
DCV140 Sectional
1-12		 Pneumatic
DCV200 Sectional
1-12		 Pneumatic
DCV40 Sectional
1-8		 Electro-pneumatic
DCV60 Sectional
1-12		 Electro-pneumatic
DCV100 Sectional
1-12		 Electro-pneumatic
DCV140 Sectional
1-12		 Electro-pneumatic
DCV200 Sectional
1-12		 Electro-pneumatic
DCV40 Sectional
1-8		 Electro-hydraulic
DCV60 Sectional
1-12		 Electro-hydraulic
DCV100 Sectional
1-12		 Electro-hydraulic
DCV140 Sectional
1-12		 Electro-hydraulic
DCV200 Sectional
1-12		 Electro-hydraulic
Flow Regulator 　 　
ZT12 ZT12-1 Manual
ZT12-2
ZT12-3
ZT12-4
ZT12-5
ZT20 ZT20-1 Manual
ZT20-2
ZT20-3
ZT20-4
ZT20-5
CDB15 CDB15.1 Manual
CDB15.2
CDB15.3
CDB15.4
CDB15.5
CDB15.6
CDB20 CDB20.1 Manual
CDB20.2
CDB20.3
CDB20.4
CDB20.5
CDB20.6
