Specifications
Brand Name :
HANJIU
Model Number :
BMK2-65-E2-A-D-B
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
82 usd/pc
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
0 - 35 work days
Packaging Details :
box, pallet
Product :
Gerotor Hydraulic Motors
Model No. :
BMK2-65-E2-A-D-B
Size :
65 ml/r
Rotation :
Left and Right
Description

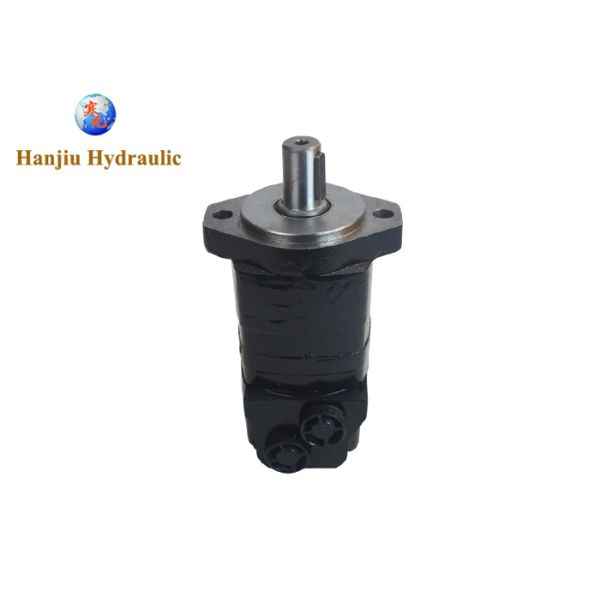

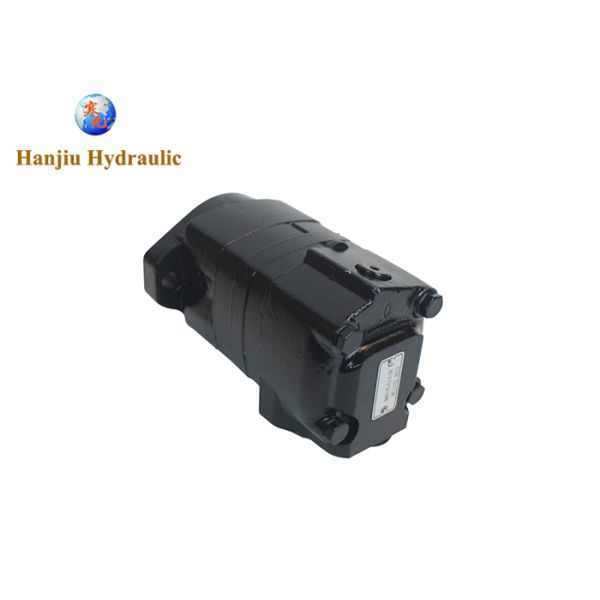

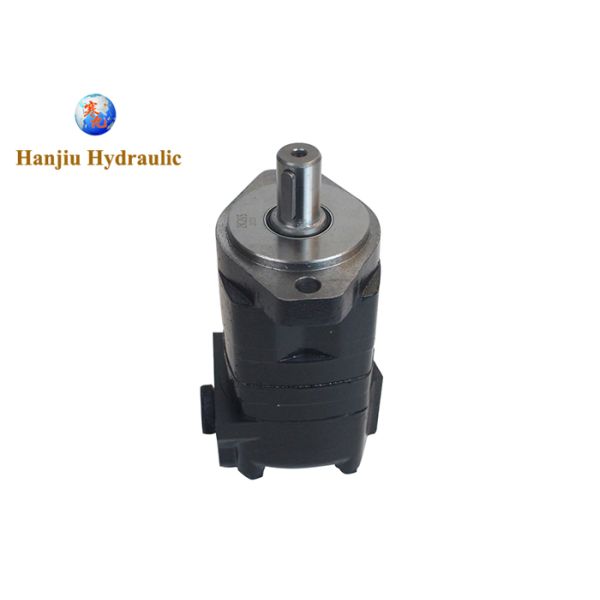

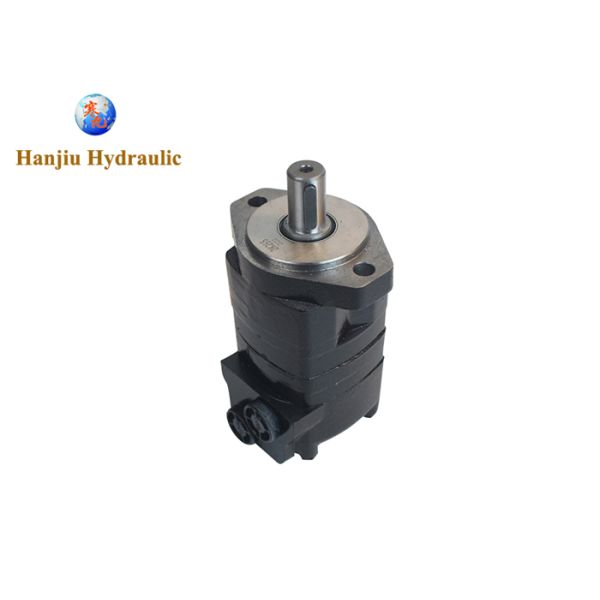

BMK2-65-E2-A-D-B Geroler Motor, 1:1 interchange with Eaton Charlynn 2000 series, 65cc, 2 bolt mounting, 25mm key shaft


Quick review:

BMK2 / 2K／2000 – Orbital Motors
Orbital Hydraulic Motor
Sizes: 65 to 475cc/rev
Max. Pressure up 210Bar


Model No.:

BMK2-65-E2-A-D-B



Features:

Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offer capacities
of high pressure and high torque in the wide of applications.
Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency
and long life, provide smooth and reliable operation.
The new series motor is suitable for vehicles with greater loads and pressure drop.



BMK2-65-E2-A-D-B



Specification:

Main Specifications:
Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250 315 400 475
Geometric displacement
(cm3 /rev.)		 65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
int. 27.5 31 31 31 26 26 26 24 17 14
peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.



BMK2-65-E2-A-D-B Geroler Motor with 65cc Displacement 2 Bolt Mounting and 25mm Key Shaft


BMK2-65-E2-A-D-B Geroler Motor with 65cc Displacement 2 Bolt Mounting and 25mm Key Shaft


BMK2-65-E2-A-D-B Geroler Motor with 65cc Displacement 2 Bolt Mounting and 25mm Key Shaft







The BMK2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.




More BMK2 series to match Danfoss Eaton Charlynn drive motors


EATON CHAY-LYNN Hydraulic Motors
  • J (129-)
  • H (101-)
  • S (103-)
  • T (158-)
  • W (162-)
  • 2000 (104-, 105-, 106-, 193-)
  • 4000 (109-, 110-, 111-)
  • 6000 (112-, 113-, 114-)
  • 10000 ( 119-)



BMK2-65-E2-A-D-B Geroler Motor with 65cc Displacement 2 Bolt Mounting and 25mm Key Shaft





Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
