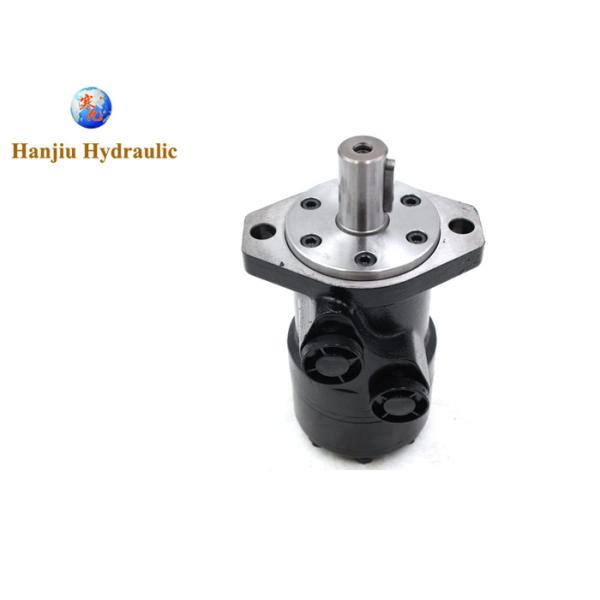

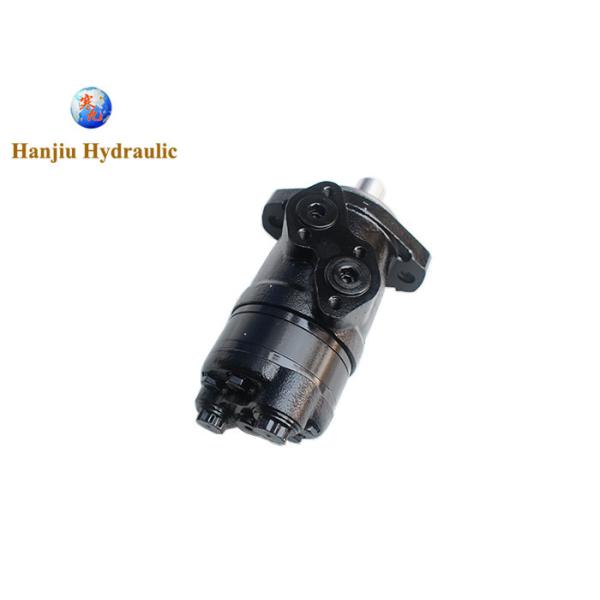

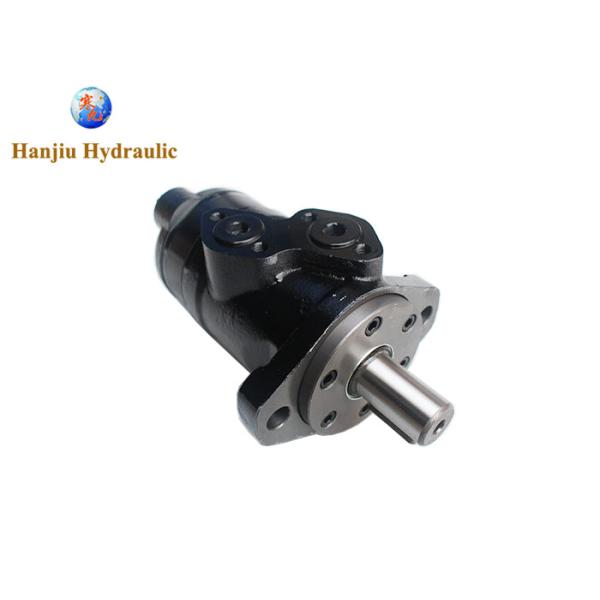

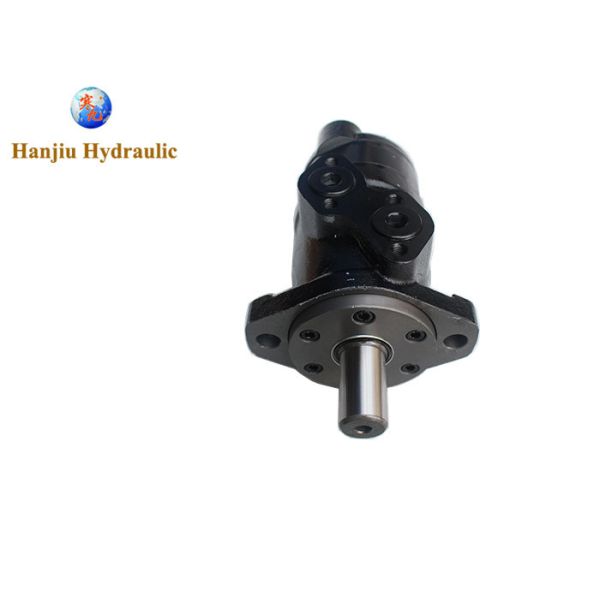

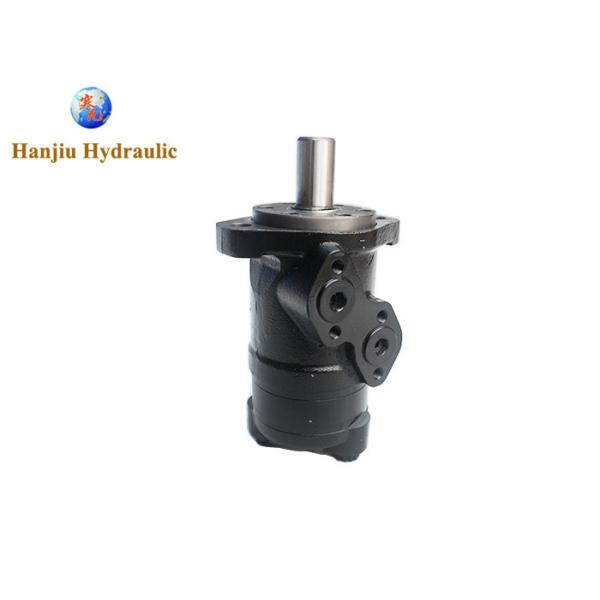

X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
Specifications
Brand Name :
HANJIU
Model Number :
OMPX160
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
47 - 60 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type :
Geroler and Gerotor motor
Warranty :
12months
Model No. :
BMP200
Feature :
Replace OMP, M+S MP, EATON H series
Application :
Plastic, Agricultural, Forestry, Industrial, etc.
Port :

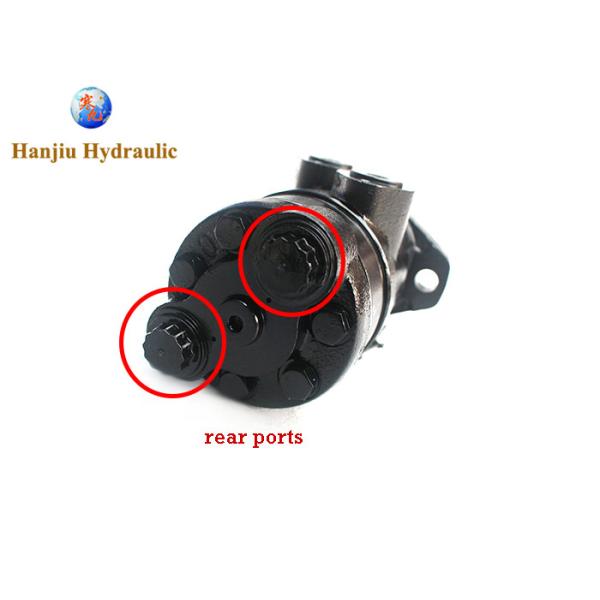

Rear Port
Description

OMP MOTOR X 160 SHAFT Ø25MM Rear Port Cylindrical Shaft A2 2 Bolt flange

Description:


Hanjiu BMPX160 = Danfoss OMPX160 Rear Port

Specifications:

Type BMPX
Displacement 160CC
Shaft 25MM Cylindrical
Flange A2 (2 Bolt 106.1 pcd)
Port Position End
Shaft Seal High Pressure
Drain Yes

Hanjiu offers range of geroler and gerotor motors that are compatible with Danfoss on form, fit and function.

We are experts when it comes to all Danfoss Orbital Motors, including the below BMP motors with SAE A 2 Bolt

Cylindrical Shaft 1/2" BSP Ports.

Type BMP
36		 BMP
50		 BMP
80		 BMP
100		 BMP
125		 BMP
160		 BMP
200		 BMP
250		 BMP
315		 BMP
400		 BMP
500
displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4

8

X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt FlangeX 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange

X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
