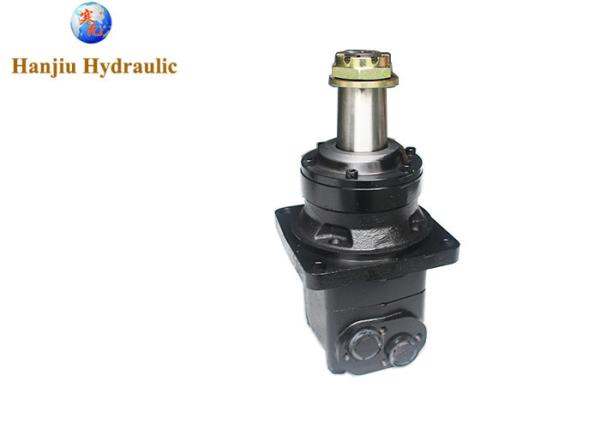

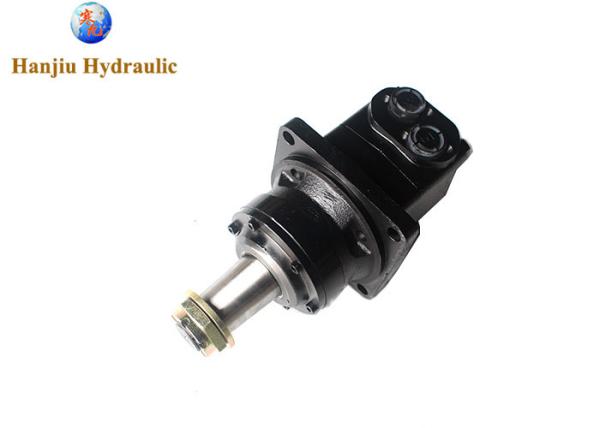

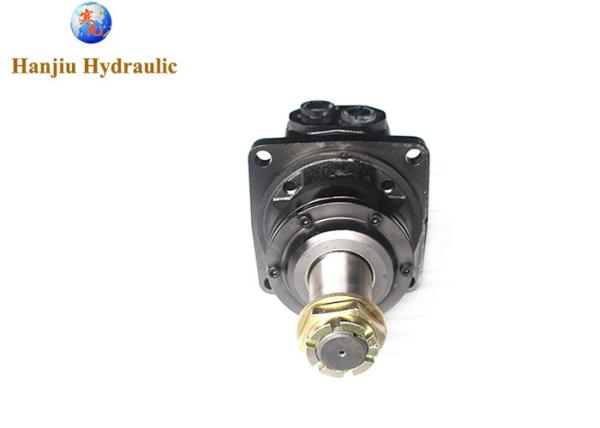

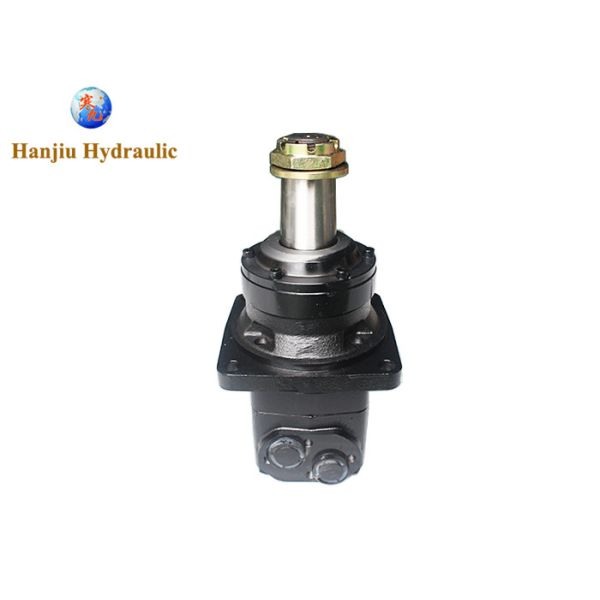

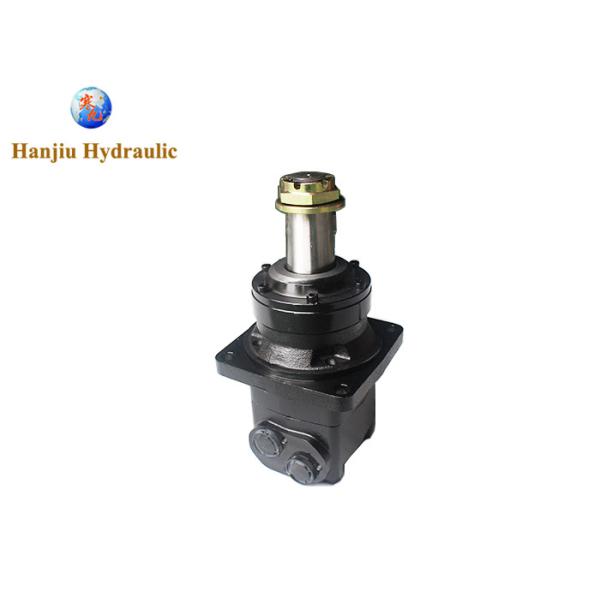

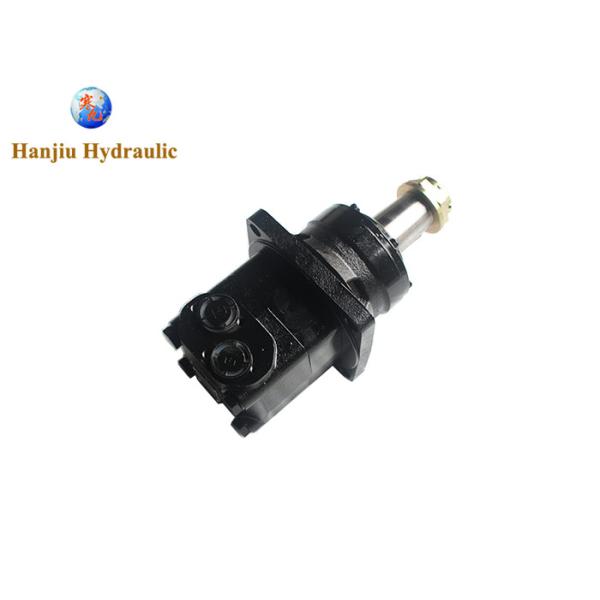

OMVW630HD Danfoss Hydraulic Motor Harvester Head Spare Parts 151B3158
OMVW630HD Danfoss Hydraulic Motor Harvester Head Spare Parts 151B3158
OMVW630HD Danfoss Hydraulic Motor Harvester Head Spare Parts 151B3158
OMVW630HD Danfoss Hydraulic Motor Harvester Head Spare Parts 151B3158
OMVW630HD Danfoss Hydraulic Motor Harvester Head Spare Parts 151B3158
OMVW630HD Danfoss Hydraulic Motor Harvester Head Spare Parts 151B3158
Specifications
Brand Name :
HANJIU
Model Number :
BMVW MOTOR
Certification :
CE
Place of Origin :
CHINA
MOQ :
10pieces
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A, L/C
Supply Ability :
300000PCS PER YEAR
Delivery Time :
25-30DAYS
Packaging Details :
2PCS IN ONE CARTON,800PCS IN 20'FCL
displacement :
630cc
Max.speed(rpm) :
cont.320rpm/int.380rpm
Max.torque(N.m) :
cont.1660N.m/int.1940N.m
Max.pressure drop :
cont.18mpa/int.21Mpa
flow :
cont200/int240l/min
Viscosity :
42-74mm2/s
Description

OMVW630HD ORBITAL MOTOR HARVESTER HEAD SPARE PARTS DANFOSS 151B3158 TAPERED 1:10 KEY SHAFT

Description
Manufacturer: HANJIU
Country of origin: CHINA
Condition: NEW packaging
Materialnumber: 151B3158
Modelcode: BMVW
Motorseries: O-Series
Displacement: 630
Mounting Flange: wheel flange
Mounting Thread Dimension:φ60mm
Shaft Style: tapered shaft
Shaft Size: 1-10
Shaft Key: B16 X10X32 mm (DIN 6885)
Port Size: Side port
Port Dimension: G 1
Drain Port Style: Standard
Drain port Dimension: G 1/4
Brake Release Port: None
Brake Release Port Dimension: None
Painted: BLACK
Special Features External 1: None
Special Features External 2: None
Special features External 3: None
Dust Seal: Standard
Shaft Seal: NBR - Standard
Front bearing: Tapered roller bearing
Rear bearing: Tapered roller bearing
Gear wheel set: Standard
Check valve: Yes
Valve function: None
Special Features Internal 1: None
Special Features Internal 2: None
Packaging: Single pack
Option Type: Standard

HANJIU Motor BMVW inerchange OMVW 630 HD 151B3158 Rotor


The hydraulic motor is used as the hydraulic motor for the traction roller on the

Waratah (John Deere) 758HD and HTH470HD harvester heads.


The working volume is 630 cc/rev, and the working pressure is 200 bar.

Waratah (John Deere) order codes F034495, F069034.


A similar product is the MVW630KLLHD hydraulic motor manufactured by M+S.

Main Specification:

Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6
