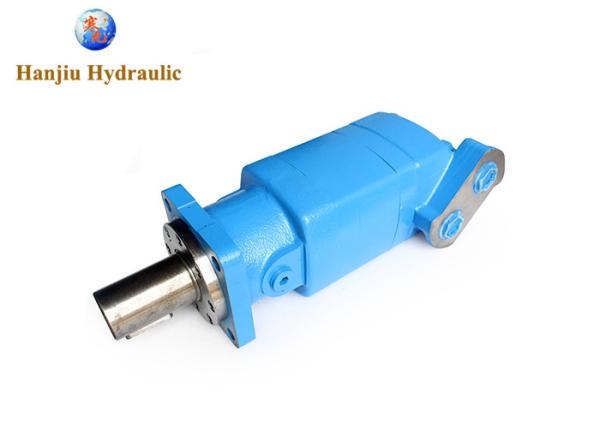

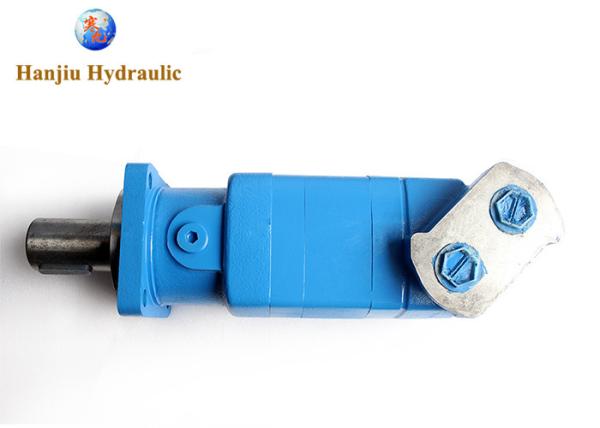

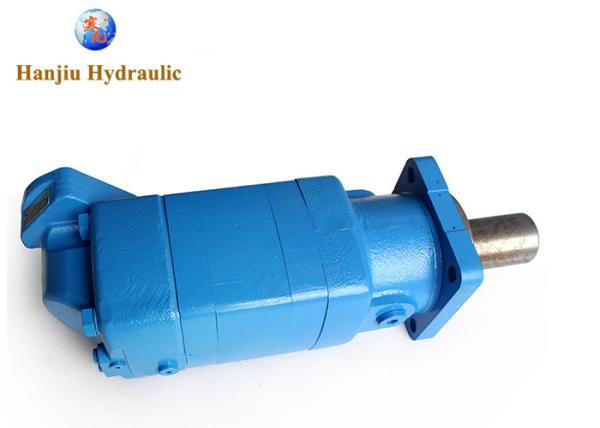

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
Specifications
Brand Name :
HANJIU
Model Number :
119-1030
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
350
Payment Terms :
L/C, T/T, Western Union, Western Union
Supply Ability :
300000 sets per year
Delivery Time :
35 - 45 work days
Packaging Details :
Carton, Box, Pallets
Item :
LSHT motors
Model :
119-1030
Displacement :
665.3 CM3/R [40.60 IN3/R]
Flange :
127.0 [5.00] PILOT DIA.
Shaft :
57.15 [2.250] DIA. STRAIGHT SHAFT WITH .500-20 UNF-2B THREAD IN END
Port :
1.3125-12 UN-2B SAE O-RING STAGGERED PORTS
Description

Hydraulic Geroler Disc Valve MotorChar-Lynn (Eaton) 119-1030-003 10000 - Standard, 665.3 cm³/r Geometric Displacement

OVERVIEW
Lowest pressure drop motor in the industry

* This is an Aftermarket CHAR-LYNN 119-1030-003 / EATON 119-1030 MOTOR

NOTE

Delivery time estimates are based on real-time product availability and standard ground shipping.

SPECIFICATIONS
Series 10000 - Standard
Displacement 40.60 in³/r, 665.3 cm³/r
Mounting Type 4-Bolt Flange - 5 in Pilot
Shaft Type Straight
Maximum Operating Temperature 180 °F
Output Shaft Size 2-1/4 in Straight - Straight Key
Overall Height 5.79 in
Overall Length 17.74 in
Overall Width 5.91 in
Seal Type Standard
Operation Mode Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute
Drain Connection Size .5625-18 Unf-2b O-ring Port Size -6

PARAMETERS

Displacement cc/rev 345 480 665 940
Max. Speed* rpm 501 354 254 179
Flow lpm 170 170 170 170
Torque* Nm 1040 1475 2085 2700
Press. ∆bar** bar 205 205 205 190

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000

More AFTERMARKET CHAR-LYNN / EATON MOTOR

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
