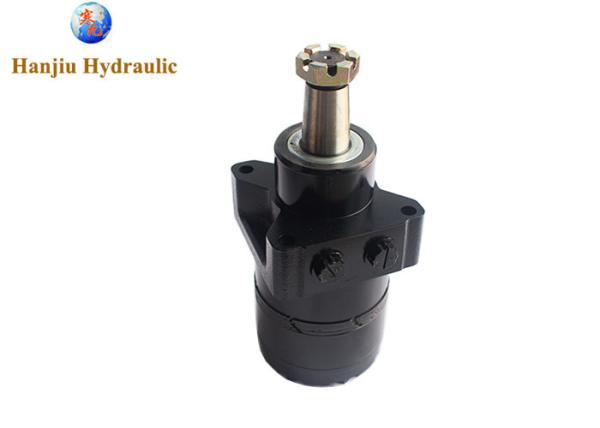

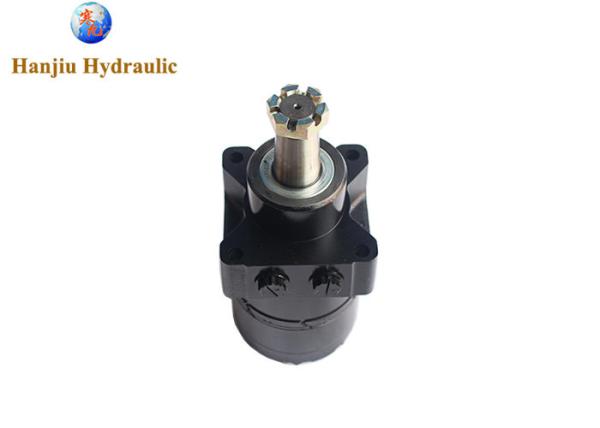

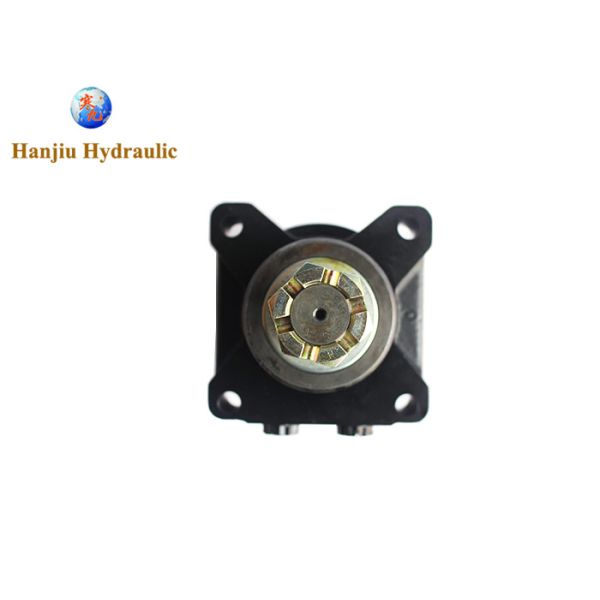

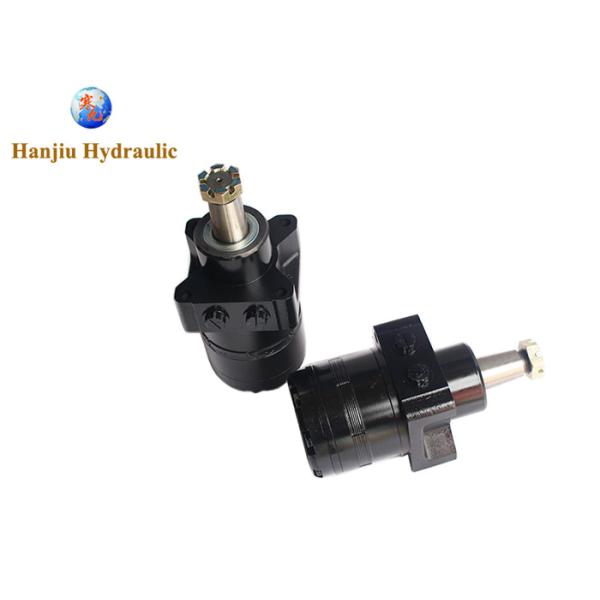

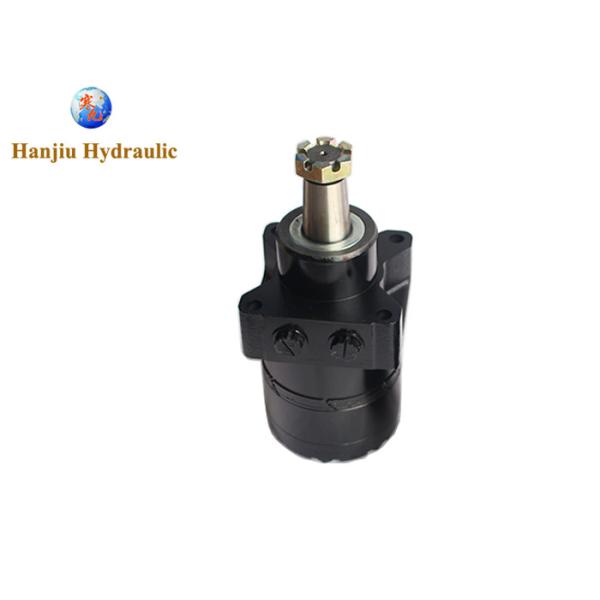

M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque
M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque
M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque
M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque
M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque
M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque
Specifications
Brand Name :
HANJIU
Model Number :
BMER-470
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Type :
hydromotor
Speed :
160rpm1950rpm
Displacement :
470cc
torque :
1085N.M-1180N.M
output :
14.5kw-16.5kw
pressure :
24mpa-27.6mpa
Description

M+S HW470 orbit motor wheel mounting flange hydromotor dynamic low speed high torque hydraulic motor

This type of hydraulic motors are widely used on sweeper machines, sweeper brush,hydraulic scissors lift, platforms


matching brand:

PARKER TORQMOTOR

WHITE TORQMOTOR

ROSS TORQMOTOR
DANFOSS 500/530 MOTORS

1, model number BMER-3-475
2, displacement 475ml/r
3, flange wheel Mount
4, shaft cone shaft
5, oil port G1/2
6, drain ---
7, rotation Standard
8, paint Black
9, replace Parker TG ,white 500/530

Main Specifications:

Type

BMER

125

BMER

160

BMER

200

BMER

230

BMER

250

BMER

300

BMER

350

BMER

375

BMER

475

BMER

540

BMER

750

Geometric displacement

(cm3 /rev.)

 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N*m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90


M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque

M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque

M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque

M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque


M+S HW470 Hydraulic Orbit Motor Wheel Mounting Flange Hydromotor Dynamic Low Speed High Torque

HANJIU TECHNOLOGY not only has superb technology and innovative ideas in manufacturing products, but also put a lot of thoughts and efforts in customer communication and after-sales service. After the customer purchases the relevant mechanical devices, HANJIU TECHNOLOGY will pay regular return visits with the customer, give the customer some suggestions for use and help the customer solve the problems that may arise in the use of the product. If a customer encounters a problem with the product during the use of the product, HANJIU TECHNOLOGY will also have professional technical personnel to communicate with the customer and conduct regular inspections and maintenance.

No matter when and where, HANJIU TECHNOLOGY can always provide you with higher quality hydraulic rail motors, how can you miss it?
