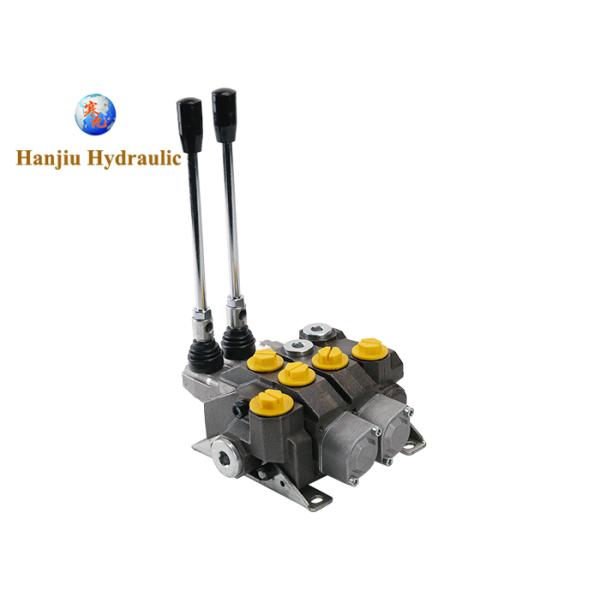

Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Bucher Hds15 Sectional Directional Control Valve 60 Lpm 250 Bar Manual Control
Specifications
Brand Name :
HANJIU
Model Number :
HSSD15
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
Contact the seller to get a quote
Payment Terms :
L/C, T/T, Western Union, Western Union
Supply Ability :
300000 sets per year
Delivery Time :
25 - 35 work days
Packaging Details :
Carton, Box, Pallets
Item :
Directional Control Valve
Model :
HSSD15
Bank :
2 bank
Flow rate :
60LPM
Thread :
1/2"BSP
Spool :
1 to 8 sections
Description

Bucher HDS15 Sectional Valve replacement, 60 LPM 250BAR manual control



Quick View:

HSSD15 is a compatible option for Bucher HDS15 directional control valve, it have a wide successful experience in a wide range of different applications for agricultural, material handling and eath moving machine sectors. It has the same look, fit and functionality as the Bucher, OEM grade, more favorable price, fast delivery. If you are importers, distributors or OEM manufacturers, welcome contact us talk details.

Specification:

SERIES HDS15
MAX FLOW LPM 60
MAX PUMP FLOW l/min 60
MAX WORKING PRESSURE bar 320
CONSTRUCTION SYMMETRICAL
NUMBER OF SECTIONS 1 TO 10
SPOOL ACTUATION MANUAL, MECHANICAL JOYSTICK, CABLE, PNEUMATIC, HYDRAULIC PILOT
SECTIONAL STYLE YES
SECTIONAL LOAD CHECK VALVE YES
SERVICE PORT RELIEF YES

General Specifications:

Technical specification Metering unit system 　
Max flow rate l/min
U.S.G.P.M.

60

15
Max operating pres-sure bar
PSI

320

4600
Max back pressure bar
PSI

30

400
Oil temperature °C
°F

-10 to +80

14 to 180
Oil viscosity °E
cSt

2.4 to 10

16 to 75
Oil filtration u ≤30


More series available:

Type Number of sections Nominal flow rate Max. inlet pressure (P) Max. work port press. (A/B)
　 　 l/min bar bar
HDS11 1-8 45 250 320
HDS15 1-8 60 250 320
HDS16 1-8 60 290 320
HDS14 1-8 70 280 320
HDS21 1-8 80 290 320
HDS24 1-8 130 280 320
HDS30 1-8 120 250 320
HDS34 1-8 180 300 350


About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.

Hydraulic directional control valve is one of our specialties, we are good at Bucher HDS11, HDS15, HDS16, HDS14, HDS21, HDS24, HDS30, HDS34 , LV-A1-95 and more. Below is a selection of our high-end compatible hydraulic directional control valves for Bucher dealers and users for your reference. We also offer more hydraulic directional control valves

Welcome to contact us, send your demand list and quantity, understand our quotation, discuss cooperation.
