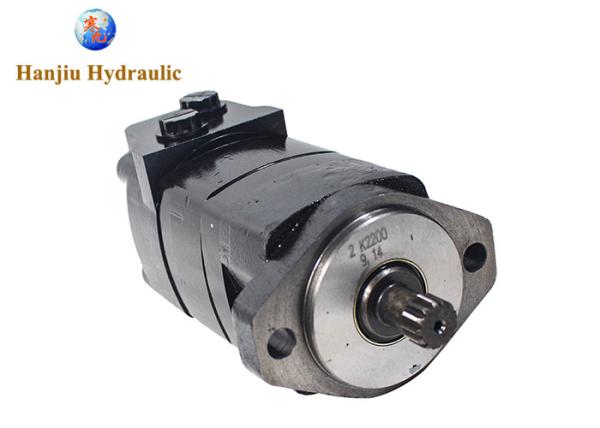

2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
Specifications
Brand Name :
HANJIU
Model Number :
BMK2-200-E2-I-SU
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
10000 pieces per months
Delivery Time :
20 - 25 work days
Packaging Details :
36x32x18cm/ 2 pcs/ carton, 720 pcs/ 20' GP.
Type :
Hydraulic Drive Motor
Manufacturer :
HANJIU
Model No. :
BMK2-200-E2-I-SU
Size :
200 ml/r
Replace :
Char-lynn 2000 Series
Flange :
2-hole Flange
Shaft :
22mm Spline key
Oil Port :
7/8-14 UNF
Drain :
7/16-20 UNF
Application :
Any place need hydraulic drive
Description

2000 Series, 2 Bolt A Flange, 22mm sub-shaft, splined 13-DP16/32, 7/8-14 UNT O-RING, 3000 PSI

Quick review:

1, model number BMK2-200-E2-I-SU
2, displacement 200 ml/r

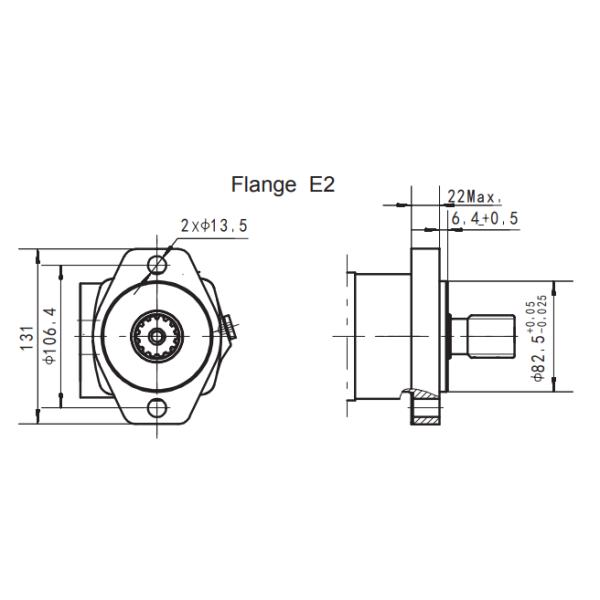

3, flange 2 - hole standard mounting

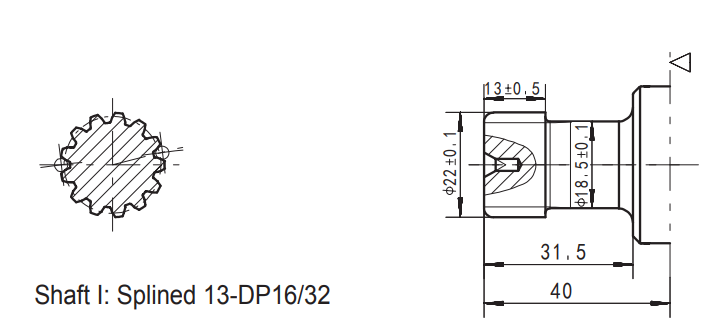

4, shaft 22 mm straight shaft, splined 13-DP16/32
5, oil port 7/8-14 UNF
6, drain 7/16-20 UNF
7, rotation Standard
8, paint Black
9, replace Char-lynn 2K

Specifications:

Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250 315 400 475
Geometric displacement
(cm3 /rev.)		 65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
int. 27.5 31 31 31 26 26 26 24 17 14
peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI

2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI


Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners

About Hanjiu:

Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We can vast your business.
We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Send your request to get our latest quote.

2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI

2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI
