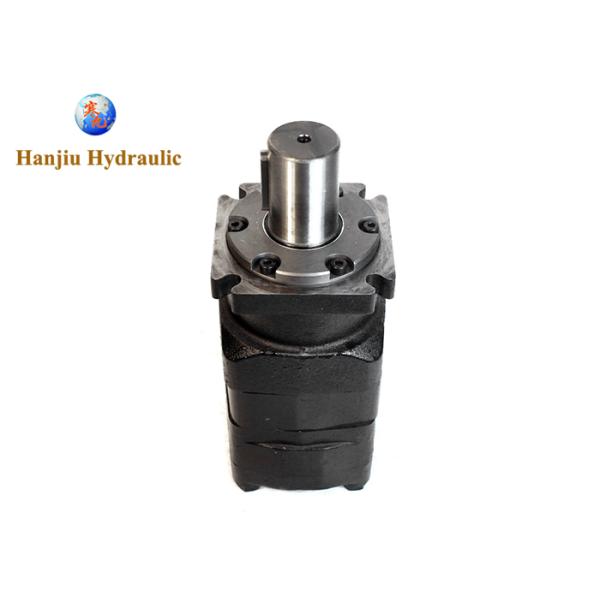

Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series
Specifications
Brand Name :
HANJIU
Model Number :
119-1030-003
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
10000 pieces per months
Delivery Time :
20 - 25 work days
Packaging Details :
36x32x18cm/ 2 pcs/ carton, 720 pcs/ 20' GP.
Type :
Hydraulic Drive Motor
Manufacturer :
HANJIU
Model No. :
119-1030-003
Size :
630 ml/r
Replace :
Char-Lynn 10000 Series
Flange :
4-hole Flange
Shaft :
57.15mm key shaft
Oil Port :
1.3125-12 UN-2B SAE O-RING
Drain :
.5625-18 UNF-2B
Application :
Any place need hydraulic drive
Description

119-1030-003 Char-Lynn 10000 Series Interchange Hydraulic Motor

Quick review:

1, model number 119-1030-003
2, displacement 665.3 CM3/R
3, flange 4 - hole flange
4, shaft 57.15mm DIA. STRAIGHT
5, oil port 1.3125-12 UN-2B SAE O-RING
6, drain .5625-18 UNF-2B
7, rotation Standard
8, paint Black
9, replace

HANJIU Hydraulics deliver BMV SERIES orbit motors for replacement. A lot of builds from the US have special engine from Char-lynn 10000 series mounted. We are able to deliver a large number of compatible engines on a short notice.

HANJIU 10000 series = Char-lynn 10000 series

HANJIU BMV = Char-lynn 119-

Specifications:

Main Specifications:

Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Interchange Hydraulic Motor 119-1030-003 Char Lynn 10000 Series


Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
