Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
Specifications
Brand Name :
HANJIU
Model Number :
OMTS200 - 151B3037
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
10000 pieces per months
Delivery Time :
20 - 25 work days
Packaging Details :
36x32x18cm/ 2 pcs/ carton, 720 pcs/ 20' GP.
Type :
Hydraulic Drive Motor
Manufacturer :
HANJIU
Model No. :
OMTS200 - 151B3037
Size :
200 ml/r
Replace :
Danfoss OMT Series
Flange :
4-hole Flange
Shaft :
No
Oil Port :
3/4 BSP
Drain :
1/4 BSP
Application :
Any place need hydraulic drive
Description

Orbital Motor OMTS200 - 151B3037, Low Speed High Torque motor, Geometric Displacement 201.4 cm3

Quick review:

1, model number 151B3037
2, displacement 200 ml/r

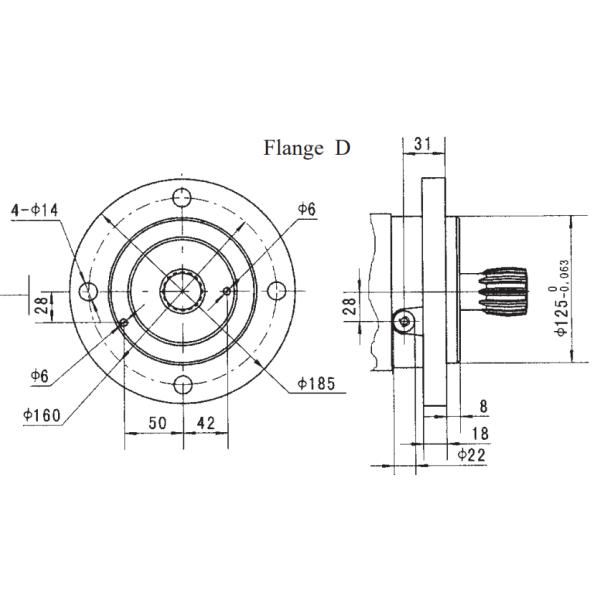

3, flange 4 - hole flange
4, shaft No
5, oil port 3/4 BSP
6, drain 1/4 BSP
7, rotation Standard
8, paint Black
9, replace Danfoss OMTS

HANJIU Hydraulics deliver OMT SERIES orbit motors for replacement. A lot of builds from the EUROPE have special engine from Danfoss OMTS mounted. We are able to deliver a large number of compatible engines on a short notice.

HANJIU OMTS/BMTS = Danfoss OMTS

Specifications:

Main Specifications:
Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)		 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)		 cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3


Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners

About Hanjiu:

Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We can vast your business.
We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Send your request to get our latest quote.

Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3

Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3
