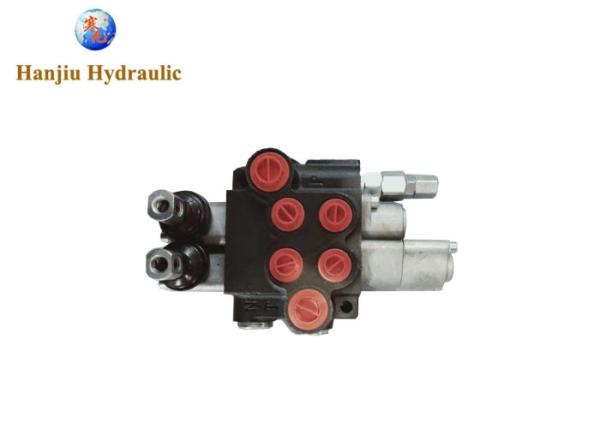

Float Function 2 Spool 40 Liters Monoblock Valves 3/8 Spring Return
Float Function 2 Spool 40 Liters Monoblock Valves 3/8 Spring Return
Float Function 2 Spool 40 Liters Monoblock Valves 3/8 Spring Return
Float Function 2 Spool 40 Liters Monoblock Valves 3/8 Spring Return
Float Function 2 Spool 40 Liters Monoblock Valves 3/8 Spring Return
Float Function 2 Spool 40 Liters Monoblock Valves 3/8 Spring Return
Specifications
Brand Name :
HANJIU
Model Number :
2P40
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
1000000 sets per year
Delivery Time :
25 - 35 work days
Packaging Details :
Inner carton / Outer carton / Pallet
Products Name :
Loader Control Valve
Model No. :
2P40
Warranty :
Come with 1 year warranty
Spool :
2
Flow :
40 liters/ min
Rated Pressure :
16 MPa
Spool Function :
'O'
Position :
'T'
P,T,N :
1/2' BSP
A, B :
3/8' BSP
Description

Float Function 2 Spool 40 liters monoblock valves 3/8'' spring return

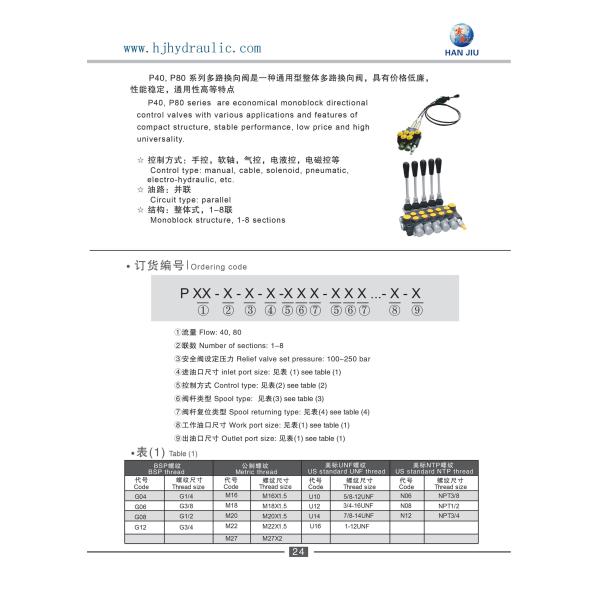

We are professional manufacturer to produce Hydraulic Monoblock and Sectional Directional Control Valves to suit hydraulic systems of agricultural, forestry, construction, minging, transport, industrial, drilling machine, sanitation and many more

We have many options for the monoblock and sectional types

It's available from 40 liters - 200 liters, and upto 1 spools are also provided by us

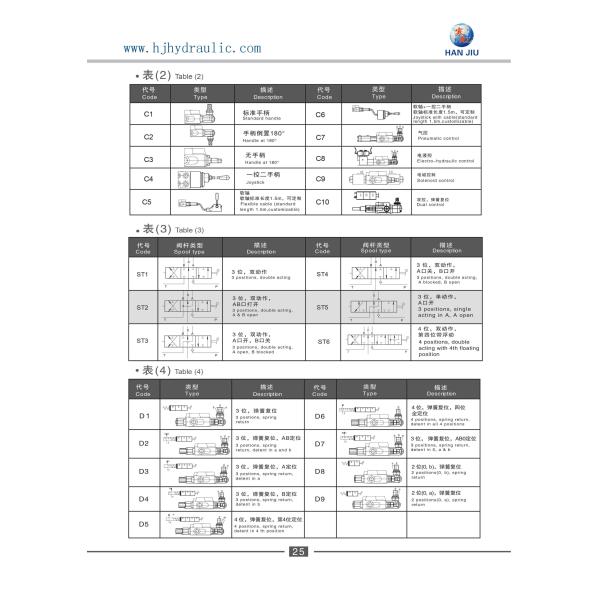

Also manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic control types

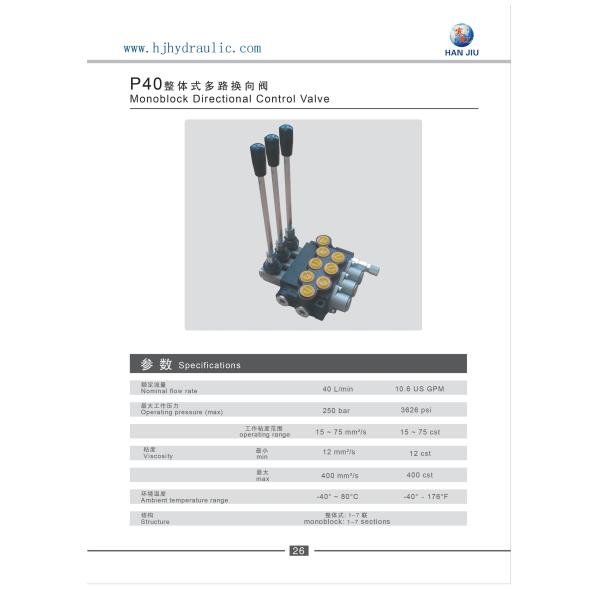

Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke +/-7 mm
Actuating force < 200 N
Modification/ Spools 1 to 8

Monoblock valve Flow Nom. Pressure Spool
P40 40L/Min

E 16 MPa

F 20 MPa

 1
P40 40L/Min

E 16 MPa

F 20 MPa

 2
P40 40L/Min

E 16 MPa

F 20 MPa

 3
P40 40L/Min

E 16 MPa

F 20 MPa

 4
P40 40L/Min

E 16 MPa

F 20 MPa

 5
P40 40L/Min 6
P80 80L/Min

E 16 MPa

F 20 MPa

 1
P80 80L/Min

E 16 MPa

F 20 MPa

 2
P80 80L/Min

E 16 MPa

F 20 MPa

 3
P80 80L/Min

E 16 MPa

F 20 MPa

 4
P80 80L/Min

E 16 MPa

F 20 MPa

 5
P80 80L/Min

E 16 MPa

F 20 MPa

 6
P120 120L/Min

E 16 MPa

F 20 MPa

 1
P120 120L/Min

E 16 MPa

F 20 MPa

 2
P120 120L/Min

E 16 MPa

F 20 MPa

 3
P120 120L/Min

E 16 MPa

F 20 MPa

 4
P120 120L/Min

E 16 MPa

F 20 MPa

 5
P120 120L/Min

E 16 MPa

F 20 MPa

 6

Float Function 2 Spool 40 Liters Monoblock Valves 3/8
Float Function 2 Spool 40 Liters Monoblock Valves 3/8
Float Function 2 Spool 40 Liters Monoblock Valves 3/8
Float Function 2 Spool 40 Liters Monoblock Valves 3/8
Float Function 2 Spool 40 Liters Monoblock Valves 3/8
Float Function 2 Spool 40 Liters Monoblock Valves 3/8
Float Function 2 Spool 40 Liters Monoblock Valves 3/8
Float Function 2 Spool 40 Liters Monoblock Valves 3/8
