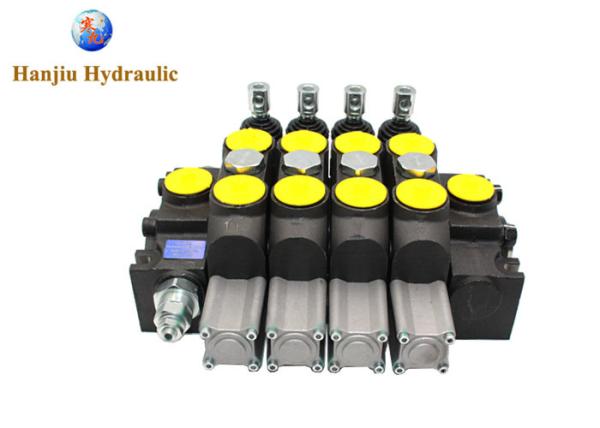

Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves
Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves
Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves
Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves
Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves
Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves
Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves
Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves
Specifications
Brand Name :
HANJIU
Model Number :
DCV200
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Model No. :
DCV200
Warranty :
12-18 months
Spool :
1, 2, 3, 4, 5, 6, ...
Flow :
40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool function :
O/Y/A
Description

specialized fabrications hydraulic products heavy duty sectional control valve crushers hydraulic directional valves

DCV directional control valve have the features of high pressure, compact construct, stable over load valve
performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.
like mobile crushers,mobile screens,crusher screen ,track pugmill mobile cement silo, track blender , track conveyors,wheel conveyors, feed hoppers,conveyor systerms, truck mounted cranes,hoists, grab bucket cranes....

Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed center hydraulic systems.

Fitted with a main pressure relief valve and a load check valve on every working section.
Available with parallel or series circuit.
Optional carry-over port.
A wide variety of service ports and circuit valves.
Available manual, pneumatic, hydraulic, electro-hydraulic and remote with flexible cables spool control kits.
Diameter 25 mm (0,98 in.) interchangeable spools.

  • Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
  • Spool function:A, O, Y, P, etc.
  • Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
  • Circuit type:parallel,series-parallel
  • C port(oil bridge) as hydraulic source for other parts
  • Structure:Sectional
Norminal Flow
200 L/min
Max Flow
200L/min
Max Pressure
350bar
Control Type
manual, pneumatic, hydraulic, electro-hydraulic
Allowed back pressure
≤1 mpa
Oil port size
customizable
ambient temperature range -40°-80°C
Structure sectional: 1-12sections

Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves

Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves

oil ports

BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U10 5/8-12UNF N06 NPT3/8
G06 G3/8 M18 M18X1.5 U12 3/4-16UNF N08 NPT1/2
G08 G1/2 M20 M20X1.5 U14 7/8-14UNF N12 NPT3/4
G12 G3/4 M22 M22X1.5 U16 1-12UNF
M27 M27X2

spool functional

Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves

Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves

Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves

Hydraulic Products Heavy Duty Sectional Control Valve Crushers Hydraulic Directional Valves

Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
