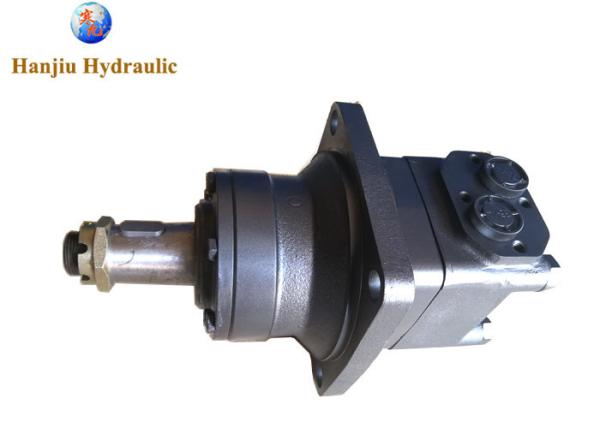

Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
Specifications
Brand Name :
HANJIU
Model Number :
BMTW
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100,000 Sets per year
Packaging Details :
Carton Packing, and finally with pallet or wooden box
Categories :
Hydraulic Wheel Motor
Name :
OMTW MTW500K
Max.output :
cont.31.2kw/int.35kw
max torque :
cont.1080N.m/int.1260N.m
Flange :
φ200mm wheel motors
Shaft :
Cone shaft 1:10
Description

BMTW / OMTW 4 Bolts Hydraulic Wheel Drive Motors type #151B3034 11116527

  • Output volume (cc/rev): 410,9
  • Shaft: Konuswelle 45 mm
  • max r.p.m.: 305
  • Torque max. (Nm): 1080
  • Power max. (kW): 30,0
  • Pressure difference (bar): 180
  • Inlet pressure (bar): 210
  • Volume flow max. (l/min): 125
  • Engine version: with non-return valves
  • Connection: G 3/4"
  • Leakage oil connection: G 1/4"

Main Specifications:

Type BMTW
160		 BMTW
200		 BMTW
230		 BMTW
250		 BMTW
315		 BMTW
400		 BMTW
500		 BMTW
630		 BMTW
800
displacement (cm3/rev. ) 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed
(rpm)		 cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max.pressure drop (MPa) cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) rated 80 100 100 100 100 100 100 100 100
cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet
pressure (Mpa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527

Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527

other types we supply same as Danfoss

151B3009 OMT 315

151B3010 OMT 400

151B3011 OMT 500

151B3012 OMT 160

151B3013 OMT 200

151B3014 OMT 250

151B3015 OMT 315

151B3016 OMT 400

151B3017 OMT 500

151B3018 OMT 160

151B3019 OMT 200

151B3020 OMT 250

151B3021 OMT 315

151B3022 OMT 400

151B3023 OMT 500

151B3024 OMTW 160

151B3025 OMTW 200

151B3026 OMTW 250

151B3027 OMTW 315

151B3028 OMTW 400

151B3029 OMTW 500

151B3030 OMTW 160

151B3031 OMTW 200

151B3032 OMTW 250

151B3033 OMTW 315

151B3034 OMTW 400

151B3035 OMTW 500

151B3036 OMTS 160

151B3037 OMTS 200

151B3038 OMTS 250

151B3039 OMTS 315

151B3040 OMTS 400

151B3041 OMTS 500

151B3042 OMT 160

151B3043 OMT 200

151B3044 OMT 250

151B3045 OMT 315

151B3056 OMT 250

151B3057 OMT 400

151B3062 OMT 500

Bmtw / Omtw 4 Bolts Hydraulic Wheel Drive Motor Type 151b3034 11116527
