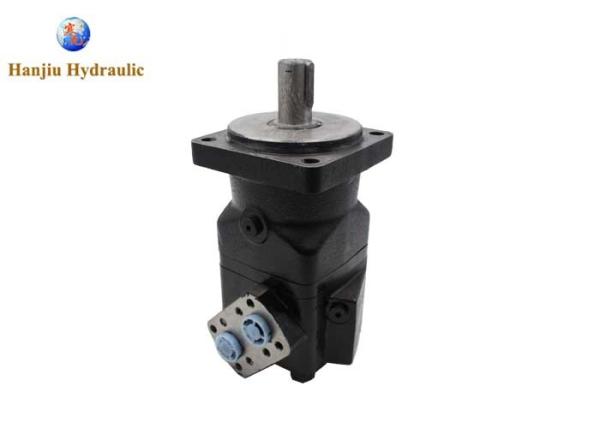

Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor
Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor
Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor
Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor
Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor
Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor
Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor
Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor
Specifications
Brand Name :
HANJIU
Model Number :
BMTE-250-CCG1SFB
Certification :
CE
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ wooden box, wooden pallet for sea shipping
Product :
High Torque Hydraulic Motor
Type :
BMT Series
Applications :
Mining & Drilling Equipment
Used on :
Hydraulic System
Rotary :
Left & Right
Features :
High Torque
Description

BMTE-250-CCG1SFB Heavy Duty Hydraulic Motor Torque 1036 n*m 31.75mm shaft

Main Specifications:
Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)		 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)		 cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMT is the most common one used on mining & drilling machines.
Flange
4 4-Ø14 Square-flangeØ160,pilotØ125×9 BMT
K6 4-Ø14.5Square-flangeØ162,pilotØ127×9
W 4-Ø18 Wheel-flangeØ200,pilotØ160×7
D 4-Ø14 Circle-flange Ø160,pilot Ø125×8 BMTS
E 4-Ø14.5 Square-flange Ø162, pilot Ø127×10
Output Shaft
M Shaft Ø40,parallel key 12×8×70 BMT
G Shaft Ø38.1,parallel key 9.52×9.52×57.15
F Shaft Ø38.1,splined tooth 17-DP12/24
FD Shaft Ø38.1,splined tooth 17-DP12/24
T Cone-shaft 1:10 Ø45,parallel key B12×8×28
T1 Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75
SL shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64
G1 shaftØ31.75,parallel key 7.96×7.96×40
F1 Shaft Ø31.75,splined tooth 14-DP12/24
Omit Short shaft 16-DP12/24 BMTS
Port and Drain Port
D G3/4 Manifold Mount,4-M10 , G1/4
M M27×2 Manifold Mount,4-M10, M14×1.5
S 1-1/16-12UN O-ring, 9/16-18UNF
S1 1-1/16-12UN O-ring, 7/16-20UNF
G G3/4,G1/4
M3 M27×2,M14×1.5
Hanjiu produce and supply hydraulic motors to kind of mining drilling equipments.
Orbital Hydraulic Motors, Low Speed High Torque type
totally we have 7 type motors available, for heavy duty drilling work, we recommend our BMS, BMT, BMV series. These motors used on:
  • rock drill rig,
  • multipurpose drill rig,
  • coring investigation drill rig,
  • soil investigation drill rig,
  • piling grouting drill rig,
  • jet grounting drill rig,
  • water well drill rig,

Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor

Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
