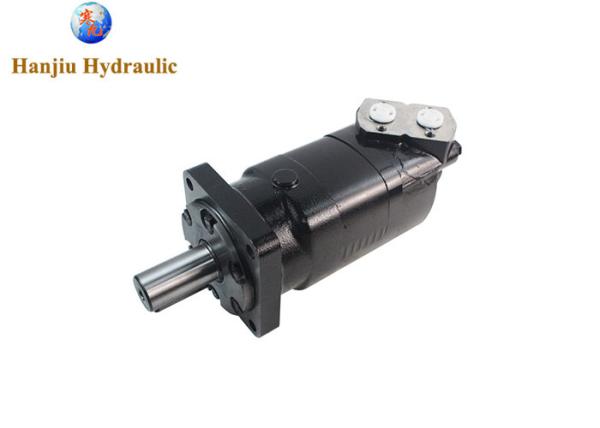

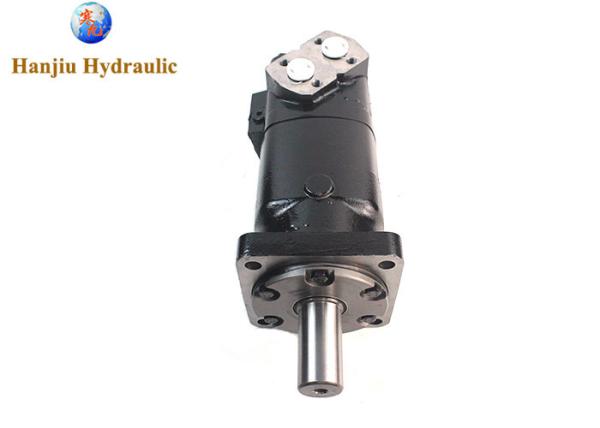

Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports
Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports
Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports
Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports
Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports
Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports
Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports
Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports
Specifications
Brand Name :
HANJIU
Model Number :
BMK6-630
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
300000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type :
Hydraulic heavy disc Motor
Material :
cast iron
Max.torque(N.m) :
cont.1480N.m/int.1890N.m
Max.speed(rpm) :
cont. 240rpm/int. 360rpm
Max pressure drop :
cont.17.5Mpa/int.22.5Mpa
Max flow :
cont.150l/min/int.225l/min
Description

Eaton 6K Motor 612-0096, Low speed high torque heavy motor, 40mm key shaft, Φ16 Manifold Mount ports

Product details:

612-0096==BMK6-630

displacement:625cc

shaft :ShaftΦ40,parallel key12×8×63

ports:Φ16Manifold Mount4×M12,M14×1.5

Main Specification

Type

BMK6

200

BMK6

250

BMK6

315

BMK6

400

BMK6

500

BMK6

630

BMK6

800

BMK6

1000
Geometric displacement
(cm3 /rev.)		 195.6 246.1 311.6 391.3 490.8 623 802.4 981.6
Main speed(rpm)

cont.

765

 610 480 382 304 240 186 152
int. 865 830 690 570 455 360 280 230
Max torque N.M

cont.

 565 710 920 1160 1445 1480 1580 1675
int. 840 1080 1325 1625 1880 1890 1880 1860
Max pressure drop (Mpa) cont. 20 20 20 20 20 17.5 14 14
int. 30 30 30 30 27.5 22.5 15.5 14
Weight (kg) 26.3 26.8 27.3 28 28.8 29.6 30.5 32

Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount PortsEaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports

Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports

Eaton 6K Motor 612-0096 Low Speed High Torque Heavy Motor, 40mm Key Shaft, Φ16 Manifold Mount Ports

OTHER TYPES:

Displacement 195 245 310 390 490 625 800 985
code 112-1064 112-1065 112-1066 112-1067 112-1068 112-1107 612-0188 112-1069
112-1094 112-1095 112-1096 112-1097 112-1098 612-0029 612-0208 112-1099
612-0091 612-0092 612-0093 612-0094 612-0095 612-0096 612-0097 612-0098
612-0061 612-0062 612-0063 612-0064 612-0065 612-0066 612-0067 612-0068
612-0151 612-0152 612-0153 612-0154 612-0155 612-0156 612-0157 612-0158
