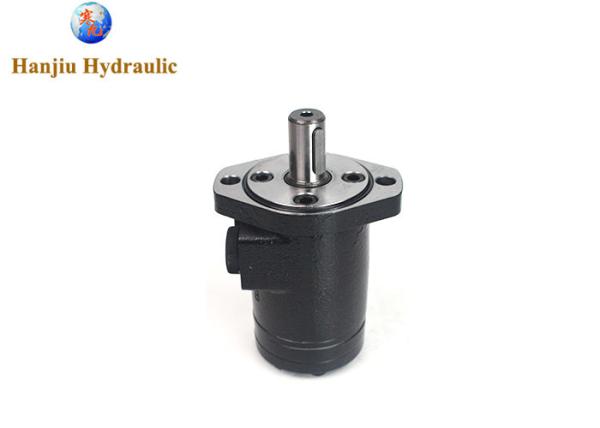

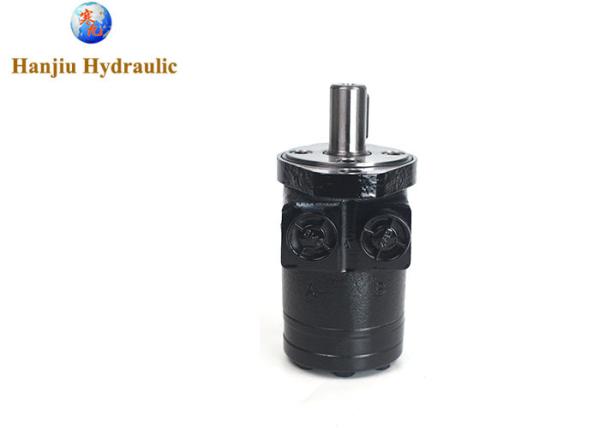

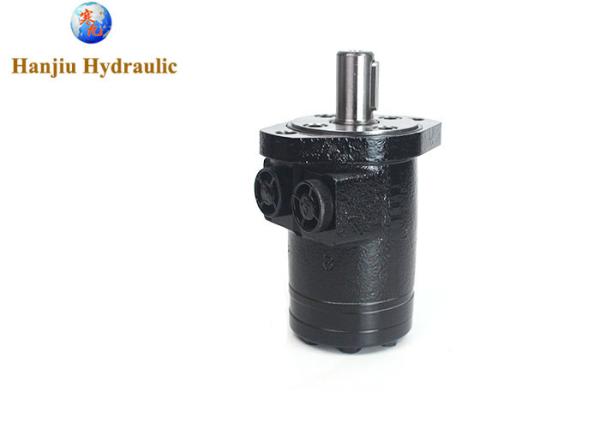

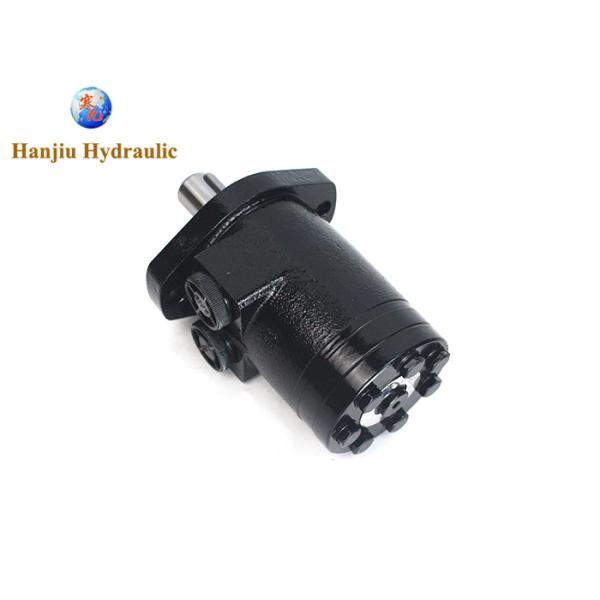

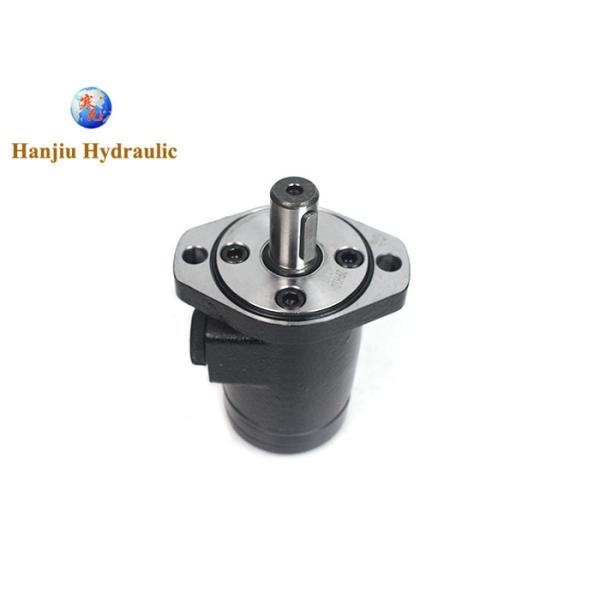

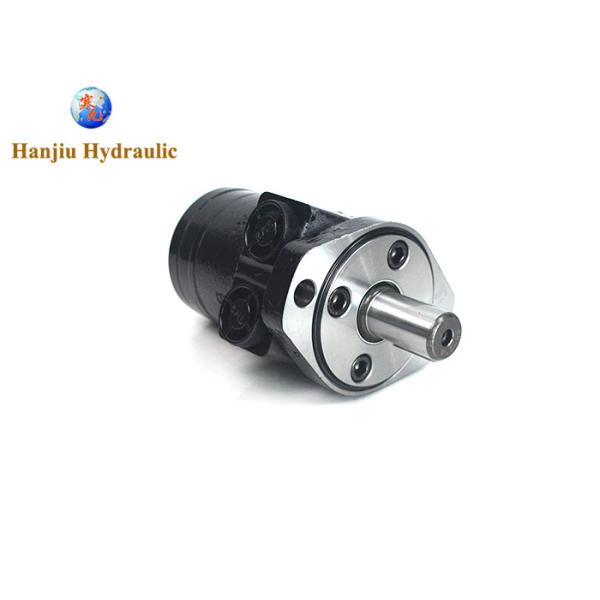

Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor
Specifications
Brand Name :
HANJIU
Model Number :
BMPH
Certification :
CE
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Model No. :
BMPH100
Displacement :
100cc
Speed :
615/770rpm
Torque :
182/227 Nm
Max Power :
11/13KW
Max Flow :
60/75LPM
Description

charlynn 101-1195-009 hydraulic gerotor motor, 100cc, 2 bolts flange with straight key shaft high torque motor

HANJIU Technology supply the BMPH series motors, code BMPH-100-H2R-A-G, matching Eaton charlynn H series 101-1195-009

with needle bearing , high torque motor,and flange rotate 90 degrees

Details:
- Displacement: 100cc
- Flange H4 Ø82.55mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35,with crosshole ∅10.3
- Ports: G1/2 (A & B), G1/4(T)

Geometric displacement (cm3/rev.) 100cc
Max. speed (rpm) cont. 615
int. 770
Max. torque (N•m) cont. 182
int. 227
peak 264
Max. output (kW) cont. 11.0
int. 13
Max. pressure drop(MPa) cont. 14
int. 17.5
peak 22.5
Max. flow (L/min) cont. 60
int. 75
Weight (kg) 5.9


Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque MotorCharlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque MotorCharlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque MotorCharlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor

Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor

  • Benefits:
    • High efficiency
    • Powerful compact
    package
    • Design flexibility
    • Extended leak-free
    performance
    Applications:
    • Agricultural augers,
    harvesters, seeders
    • Car wash brushes
    • Food processing
    • Railroad maintenance
    equipment
    • Machine tools
    • Conveyors
    • Industrial sweepers and
    floor polishers
    • Saw mill works
    • Turf equipment
    • Concrete and asphalt
    equipment
    • Skid steer attachments
EATON Hydraulic Motors
  • J (129-)
  • H (101-)
  • S (103-)
  • T (158-)
  • W (162-)
  • 2000 (104-, 105-, 106-, 193-)
  • 4000 (109-, 110-, 111-)
  • 6000 (112-, 113-, 114-)
  • 10,000 (119-, 120-, 121-)
