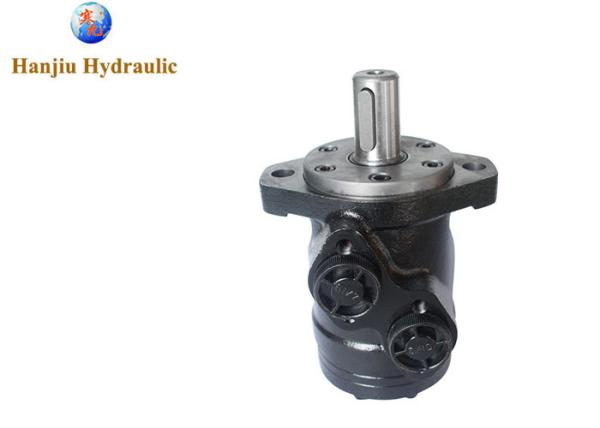

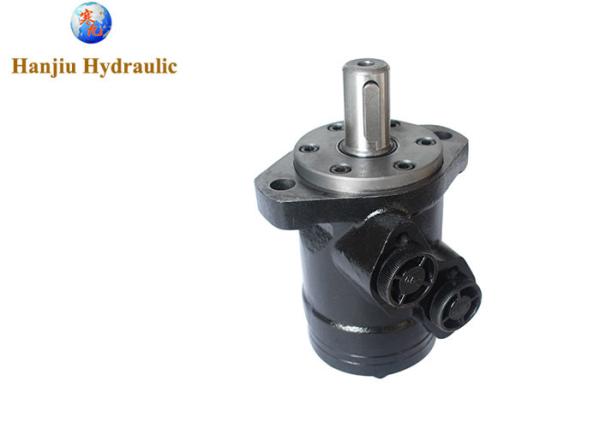

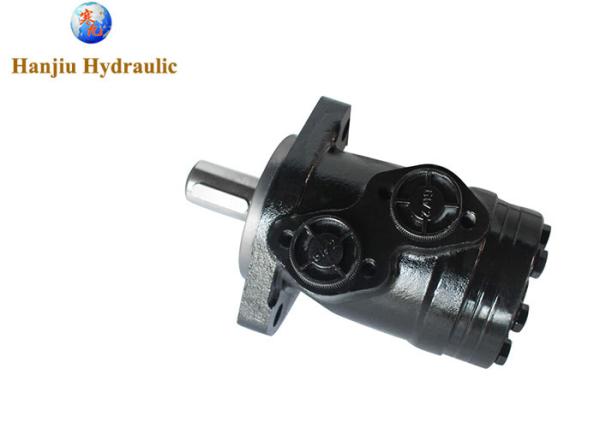

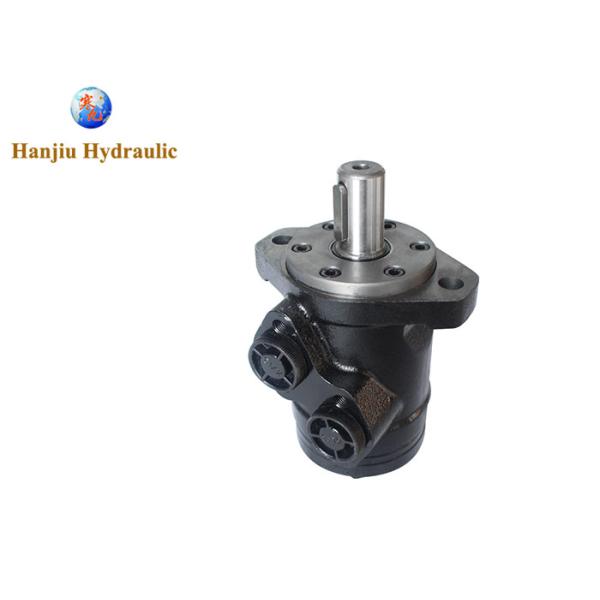

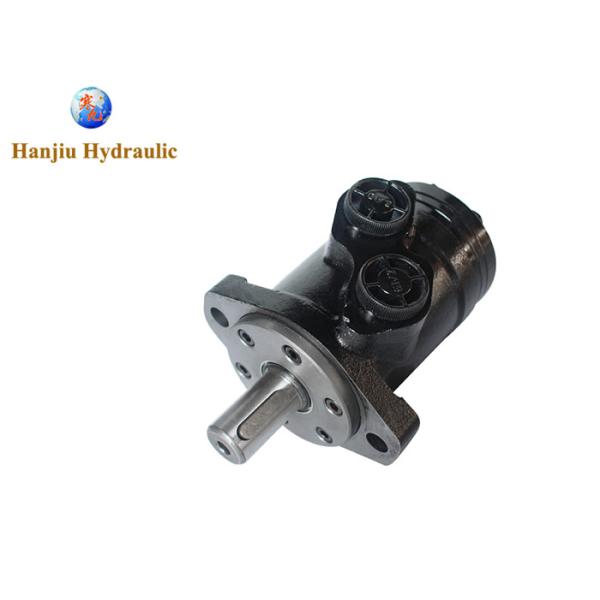

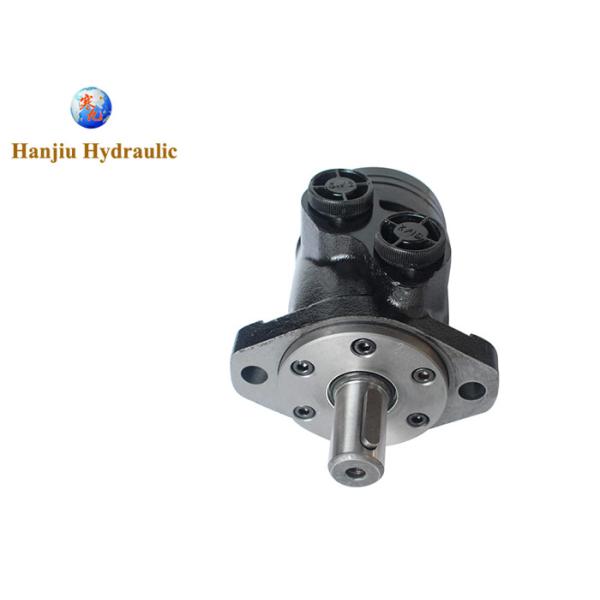

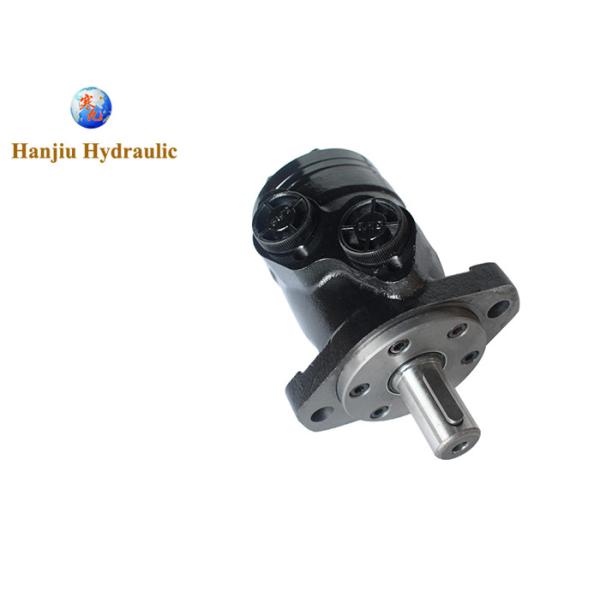

#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts
#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts
#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts
#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts
#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts
#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts
Specifications
Brand Name :
HANJIU
Model Number :
BMP
Certification :
CE
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiable
Supply Ability :
90000 Pieces One Year
Packaging Details :
Carton Box
Product Name :
drive motor
Features :
High pressure oil seal
Displacement :
50cc - 500cc
Application :
grape harvesters part
Description

grape harvester spare parts #84122562 hydraulic drive motors

► Characteristic Features

Hydraulic Motor BMP same as OMP and M+S MP Motors

1. Low pressure of start up, provide smooth reliable operation and high efficiency.

2. Special design in the driver-linker and prolong operating life.

3. Compact volume and easy installation.


4. High pressure oil seals


5. The output shaft with the deep groove ball bearing, can bear certain axial force and radial force.

widely used on grape harvesters,---destemmer belt 7030 M , 8030 L , 9000 M/L/X , VN 2090

grape harvester--9040L

► Specification

BMP / OMP Motors

Type BMP
36		 BMP
50		 BMP
80		 BMP
100		 BMP
125		 BMP
160		 BMP
200		 BMP
250		 BMP
315		 BMP
400		 BMP
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts

#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts#84122562 Hydraulic Drive Motors Grape Harvester Spare Parts
