Specifications
Brand Name :
HANJIU
Model Number :
TG0475UM050AAAA
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact the seller to get a quote
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
55 work days
Packaging Details :
Box, Pallet
Item :
LSHT motor
OEM # :
TG0475UM050AAAA
Manufacturer :
Hanjiu
Displacement :
475 ml/r
Mounting flange :
wheel flange
Shaft type :
1 1/4'' 14T spline shaft
Description

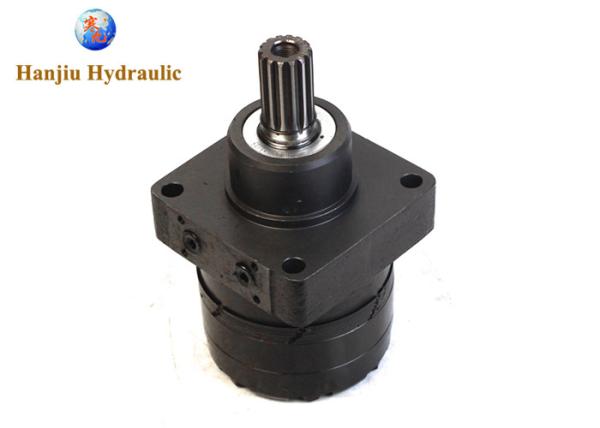

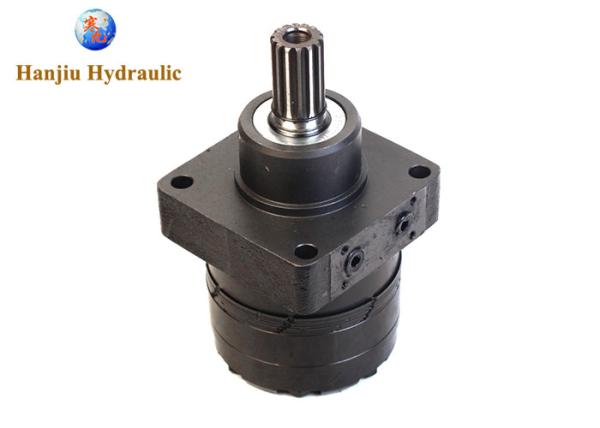

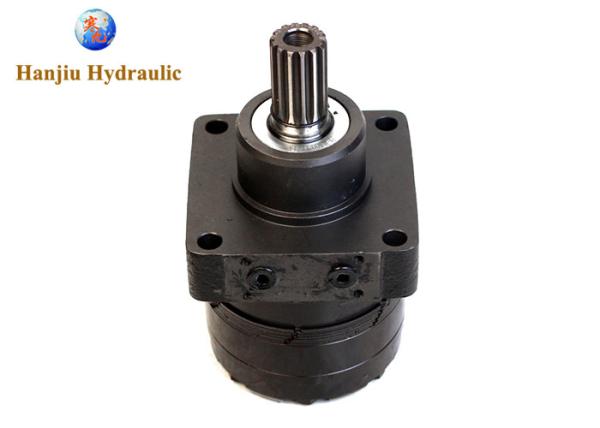

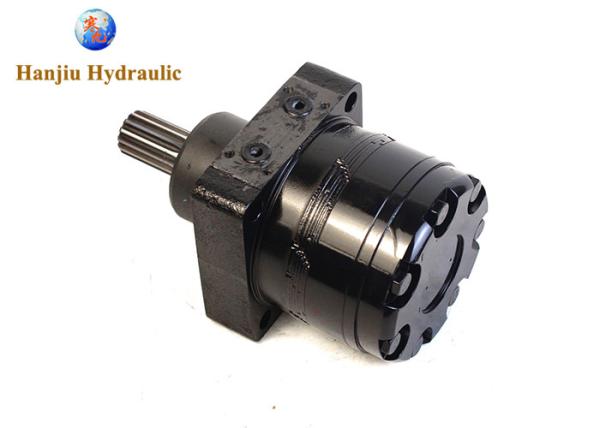

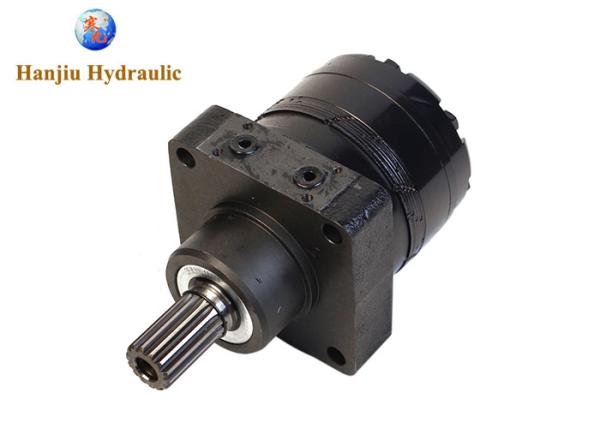

TG0475UM050AAAA, TG Series, 475cm³ Displacement, 1 1/4'' 14T spline shaft

Quick review:

This is Parker compatible motor with same form, fit and function

Apply to lown mower and tractor mowers

Here is main specifications:

Series: TG
Shaft: 1 1/4'' 14T spline shaft
Rotation:

CCW

Displacement (cm3/rev): 0475
Mounting: Wheel, Standard
Geometric Displacement: 475cm3/rev (29.1 in3/rev)
Maximum Speed: 237 rev/min
Maximum Oil Flow (continuous / intermittent): 76 lpm (20 gpm) / 114 lpm (30 gpm)
Max. Differential Pressure (continuous / intermittent): 138 bar (2000 PSID) / 207 bar (3000 PSID)
Maximum Supply Pressure: 300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent: 887 Nm (7853 lb-in) / 1372Nm (12145 lb-in)
Maximum Performance: 28 KW (38HP)
Minimum Starting Torque - Continuous / Intermittent: 740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in)

More TG series wheel motors we have, key shaft, spline shaft and taper shaft

475cm3 Displacement LSHT Slow Speed High Torque Motor TG0475UM050AAAA

475cm3 Displacement LSHT Slow Speed High Torque Motor TG0475UM050AAAA

475cm3 Displacement LSHT Slow Speed High Torque Motor TG0475UM050AAAA

More PARKER Low speed high torque compatible motors availalbe like :

TB
TC
TJ
TE
TF
TG
TK

475cm3 Displacement LSHT Slow Speed High Torque Motor TG0475UM050AAAA


About Hanjiu:

From China, Hanjiu produce variety of low speed high toqrue hydraulic motors to suit range of brands & applications, in more competitive way.

We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.

Contact us to talk work together.
