Specifications
Brand Name :
HANJIU
Model Number :
BMPH
Certification :
CE
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Model No. :
BMPH100
Displacement :
100cc
Speed :
615/770rpm
Torque :
182/227 Nm
Max Power :
11/13KW
Max Flow :
60/75LPM
Description

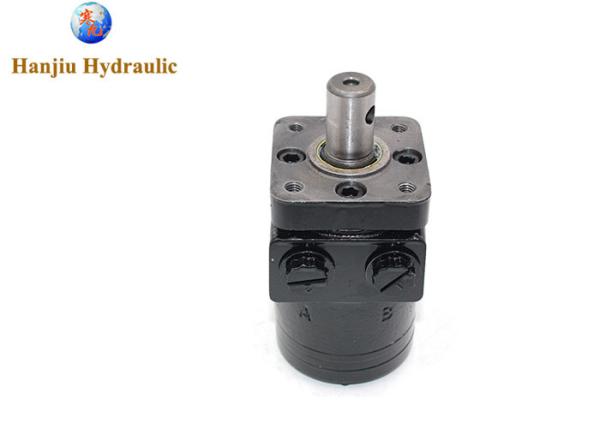

Charlynn H Series Low Speed, High Torque (LSHT) Gerotor Spool Motor 101-1857-009

HANJIU Technology supply the BMPH series motors, code BMPH-40-H4-RH-S, matching Eaton charlynn H series 101-1857-009

with needle bearing , high torque motor

Details:
- Displacement: 100cc
- Flange H4 Ø82.55mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35,with crosshole ∅10.3
- Ports: 7/8-14 o-ring (A & B), 7/16-20 UNF (T)

Geometric displacement (cm3/rev.) 100cc
Max. speed (rpm) cont. 615
int. 770
Max. torque (N•m) cont. 182
int. 227
peak 264
Max. output (kW) cont. 11.0
int. 13
Max. pressure drop(MPa) cont. 14
int. 17.5
peak 22.5
Max. flow (L/min) cont. 60
int. 75
Weight (kg) 5.9

Other types we supply

101-1835
 101-1843 101-1848 101-1854 101-1861 101-1865
101-1836 101-1497 101-1466

101-1311

 101-1313 101-1305
101-1837 101-1844 101-1849 101-1855 101-1862 101-1866
101-1838 101-1449 101-1459 101-1856 101-1312 101-1306
101-1839 101-1352 101-1850 101-1857 101-1314 101-1307
101-1840 101-1845 101-1851 101-1858 101-1863 101-1867
101-1841 101-1846 101-1852 101-1859 101-1864 101-1868
101-1842 101-1847 101-1853 101-1860 101-1315 101-1869
