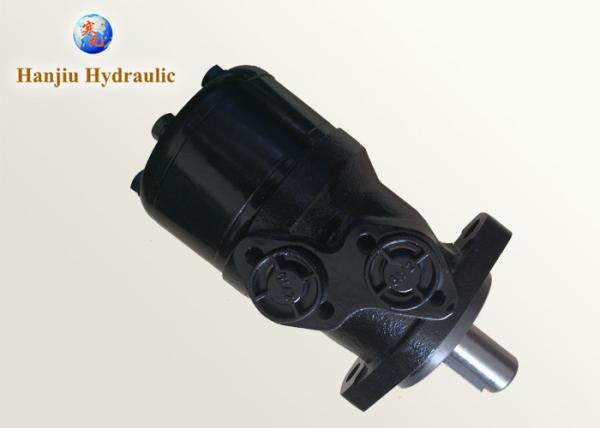

Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236
Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236
Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236
Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236
Specifications
Brand Name :
HANJIU
Model Number :
BMR250
Certification :
CE
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
80000 Pieces One Year
Packaging Details :
Carton Box
Product Name :
Hydraulic Motor BMR
Displacement :
250cc
Application :
Engineering and agricultural machinery
Power :
Hydraulic Oil
Features :
Match OMR Motor
Description

Hydraulic Motor BMR250 / OMR250 151-1236 , Shaft 25MM Cylindrical

Hanjiu Hydraulic Motor BMR250 match than OMR250 151-1236 :

• Shaft : 25mm

• Oil Port : G1/2"

• Drain port : G1/4"

• Flange : 2 flange

• Key : 8x7x32mm

Features

• Hydraulic Augers Hydraulic orbit Motor is one type of high torque low speed hydraulic motors, with high efficiency and long life.


• Orbit Motors has a wide speed range, high starting torque and rotating stable at high speed compact and light.

• It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.


• Compact design of spool and gear set , which provide mini volume, high power and low weight.


• Credible design for shaft seal , which can bear high pressure.


• Direction of shaft rotation and speed can be controlled easily and smoothly.

Application

1. Construction equipment

2. Agricultural equipment

3. Forestry equipment

4. Road Sweepers

Specification

Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236

Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236

Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236
