Feeding System Hopper Automatic Orange Squeezer , Lemon Pomegrante Juicer
Konmax Orange Juicer Machine Description:
1 .The machine adopts automatic continuous juicing way to start the machine will automatically break open so that customers are squeezed orange juice to watch the whole process , not only to attract customers , and allow customers to see a better production of sanitary conditions , no hand contact with the juice , from pollution to ensure the health drinks , customers can be assured that drink.
2.The juice over the skin and core damage is minimal , without the bitter taste of the juice squeezed into , so keep the juice and delicious flavor , one hundred percent authentic.
3. The machine is compact , with automatic feeding, safety shutdown dual monitoring , health and safety , reliable, easy to clean.
4.The investment projects of small , high-yield , more appropriate for re-employment , the same applies to the chain of operations

Konmax Orange Juicer Machine Specification:
1. Power supply:220--230V 50HZ /110--120V 60HZ
2. Power consumption:120W
3. Size of orange required:40--80mm
4. Output: 20 oranges/per minute
5. Machine Size:400L*300W*770H mm(length*width*height)
6. Weight: 43kg
7. Security:Safety cut out switches
The machines will not working without the cover place

Konmax Orange Juicer Machine Detailed Photo:

Orange storage can hold 5 kg oranges at one time

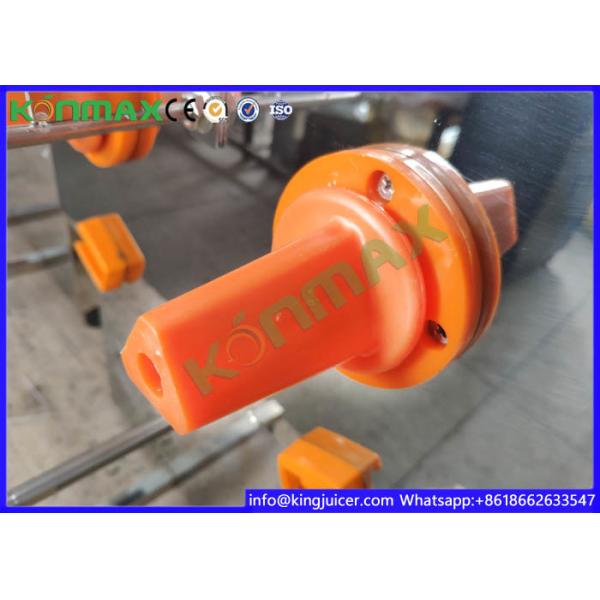

New bigger squeezing balls.
New bigger squeezing balls increse the yield rate up to 70%.It normally takes 5 oranges to make a cup of juice(350ml)

machine standard spare parts we send one set together

Konmax Orange Juicer Machine Operation Instruction:
1. Place the machine on the stable table, connect power plug to a grounded connector plug.
2. Safety check before you turn on the machine:
1) If the nut (4 units) screw down properly.
2) If place the knife rest correctly (press it on the bottom).
3) Place the cover on, screw down two side nut (2 units).
3. It can be used after turn on the power.
4．Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing
fresh juices, filtrate automatically

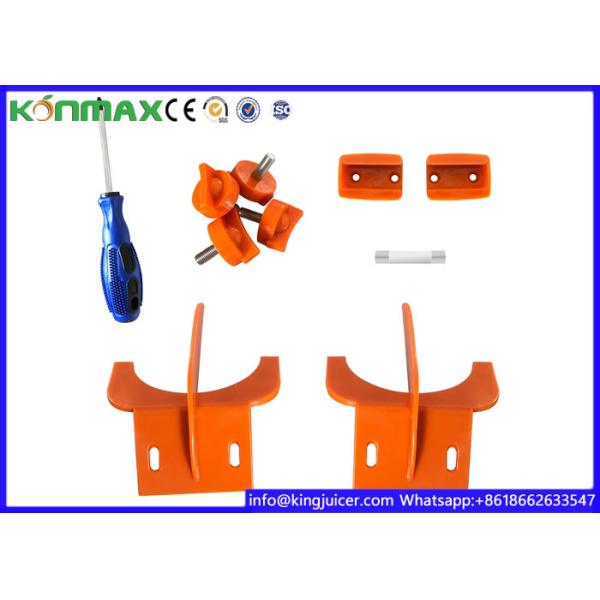

Konmax Orange Juicer Machine Accessory:
A pair of peeling implement(two),one of 5A fuze,one of cross implement, one of 8-10mm spanner,one of electronic supply.
