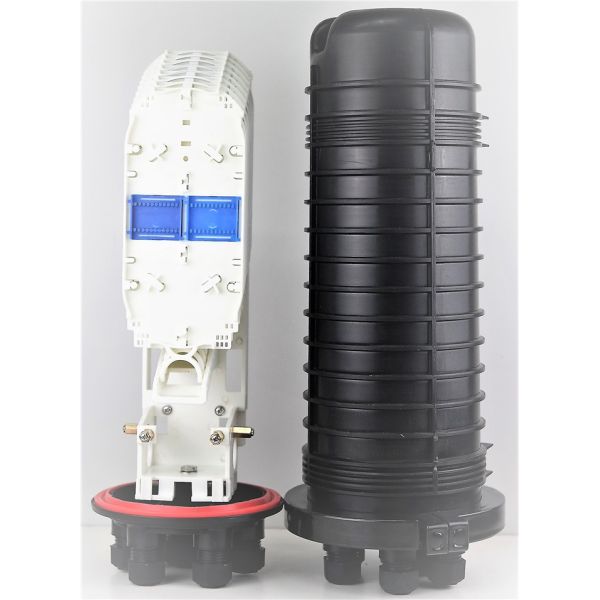

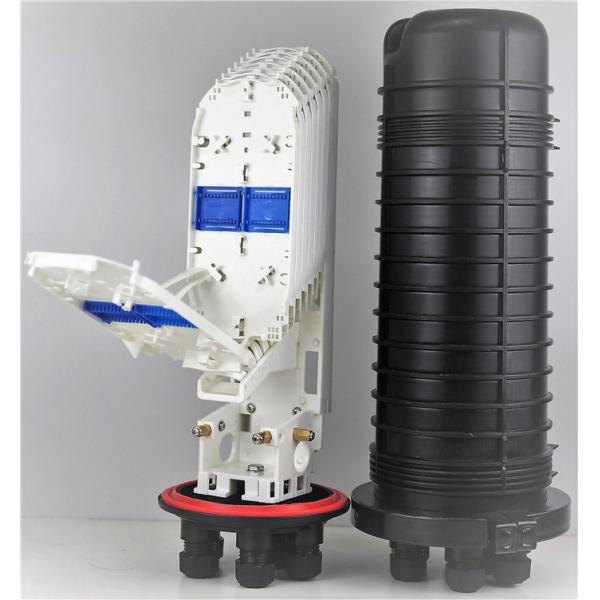

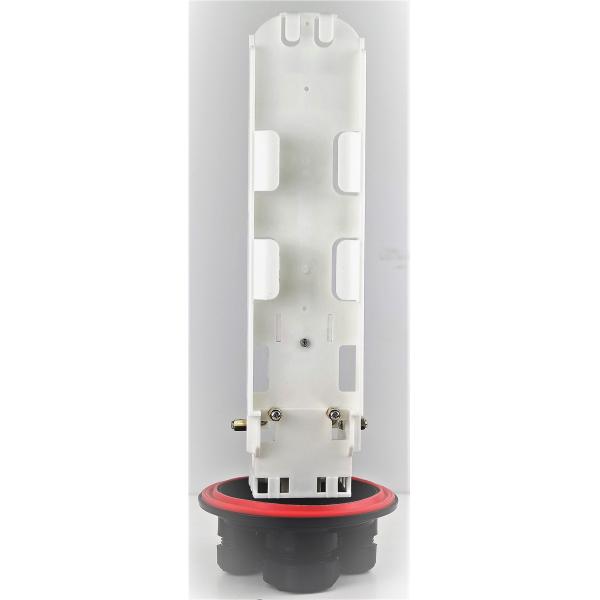

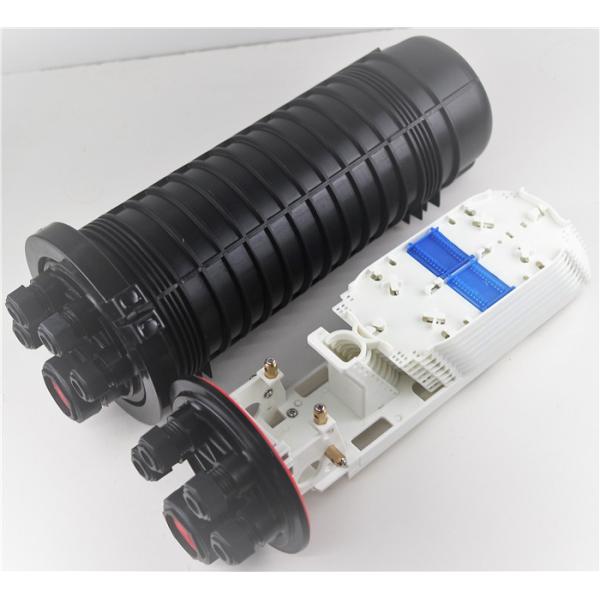

Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Dome Fiber Optic Splice Closure
Specifications
Brand Name :
GST
Model Number :
gjs20-dm01a-5port
Certification :
iso9001.TLC
Place of Origin :
china
MOQ :
100pcs
Price :
28~35usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000set/month
Delivery Time :
5-8work days
Packaging Details :
carton ,50x60x65cm 6pcs/box
material :
pp+abs
seal :
mechanical
tray :
8
core :
max192
lock :
self lock, manul lock
bracket :
back bracket
size :
L540xD160mm
Description

mechanical seal dome fiber optic splice closure,ip68,144core,192core.8tray,pp+abs,540xd160mm

1. Advantage:

1.1 The closure can be used in duct, buried, overhead..etc

1.2 High quality impact material.pp and internal is aABS

1.3 Cable magement system

1.4 Cable diameter range: 10~20

1.5 Sealing way of cables:Mechanical seaing by silicon rubber

1.6 Quality warranty:2 years

1.7 Life span:more than 25 years

1.8 IP rating is IP68

2.Technical Indexes

(1)specification

splice tray 24core/ tray 36core/ tray
1 24 36
2 48 72
3 72 108
4 96 144
5 120 180
6 144 216
7 168 252
8 192 288

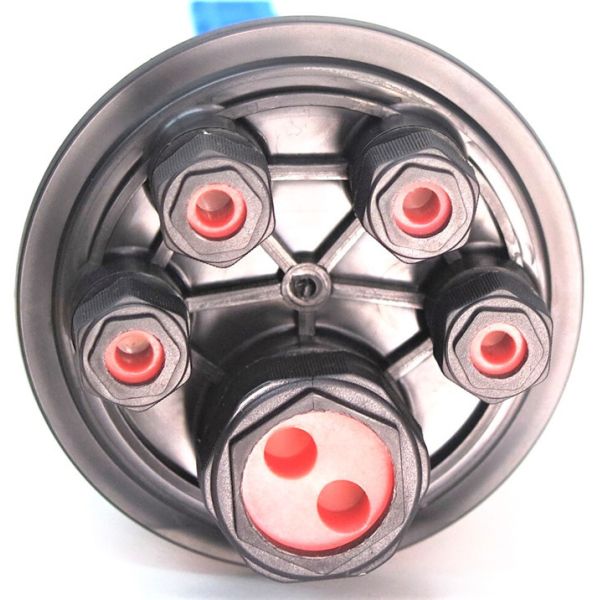

(2)Dimension of port and the closure

Model port(round(30) port(big round)50MM Total port Dome diameter maximum(mm) Length (mm)
GJS20-DM01A(24/TRAY) 4 1 5 160 540

GROMMET Model CABLE RANGE(mm) DESCRIPTION stardard
GROMMET a 10~14 1-entry grommet
GROMMET b 16~20 2-entry grommet

Environment Temperature:-30℃~+60℃

Atmospheric Pressure:70kPa~106kPa

Lifespan:more than 20 years

picture:

Dome Fiber Optic Splice Closure

Dome Fiber Optic Splice Closure

Dome Fiber Optic Splice Closure
