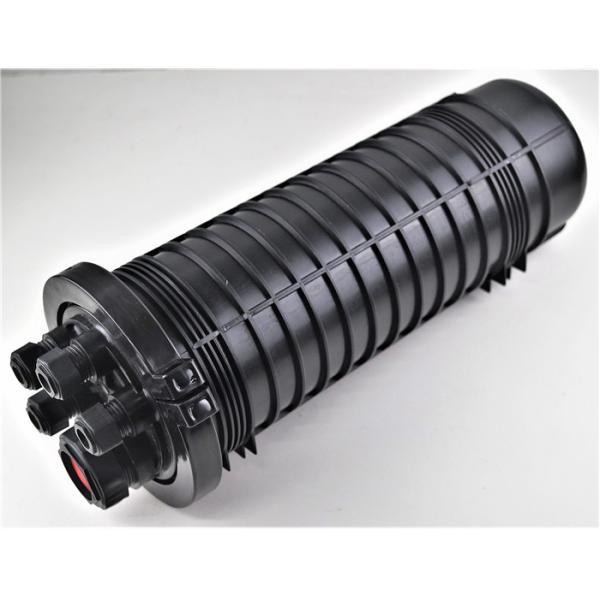

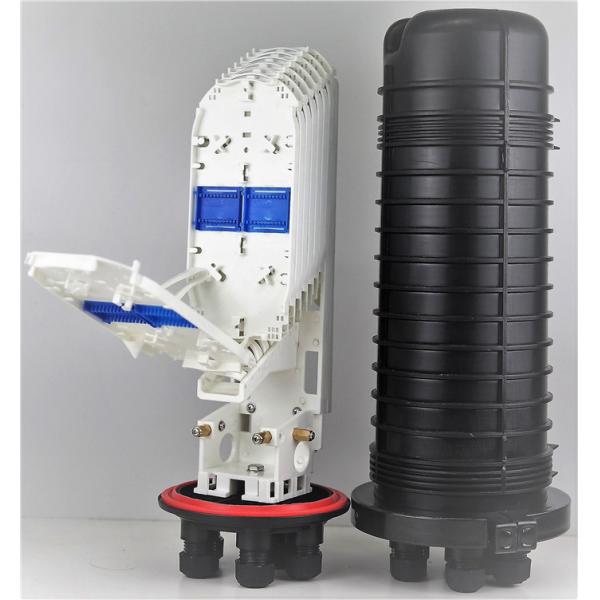

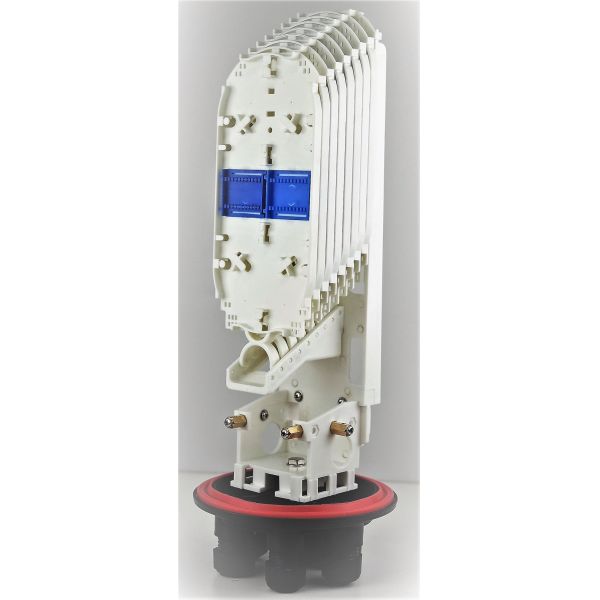

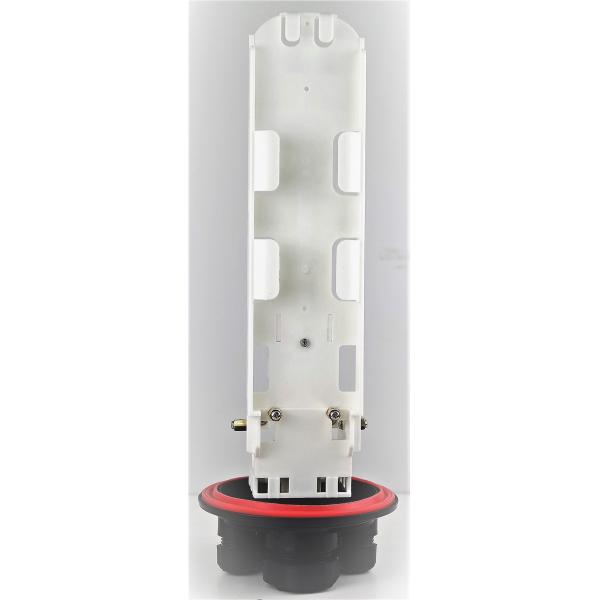

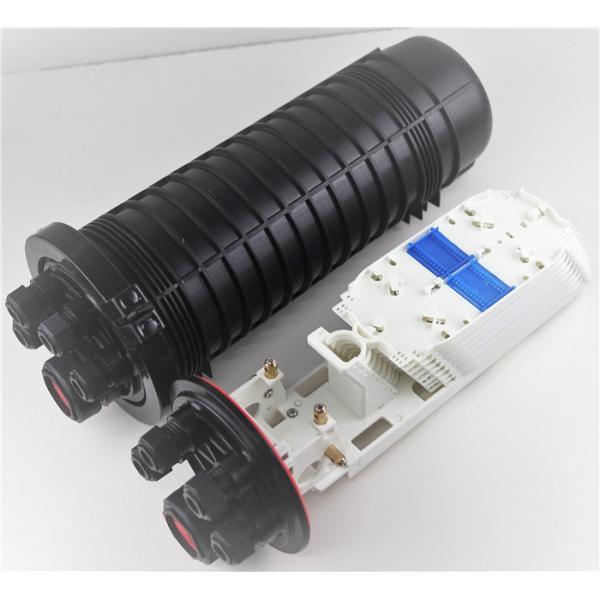

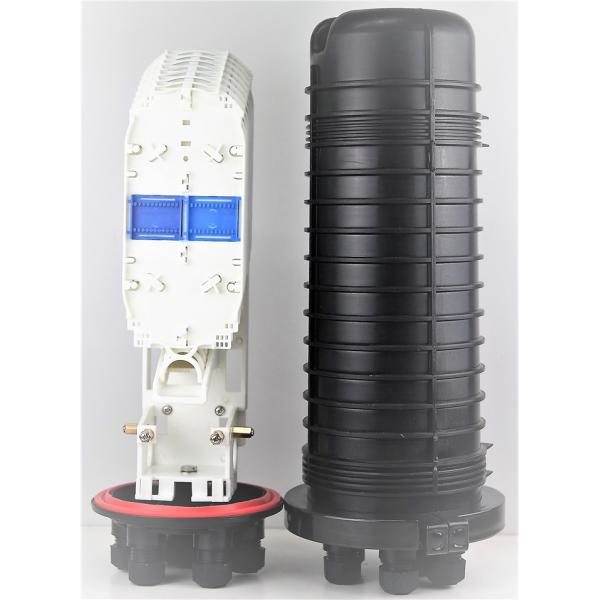

144 Core Dome Fiber Optic Splice Closure
144 Core Dome Fiber Optic Splice Closure
144 Core Dome Fiber Optic Splice Closure
144 Core Dome Fiber Optic Splice Closure
144 Core Dome Fiber Optic Splice Closure
144 Core Dome Fiber Optic Splice Closure
144 Core Dome Fiber Optic Splice Closure
144 Core Dome Fiber Optic Splice Closure
Specifications
Brand Name :
GST
Model Number :
gjs20-dm01a-5port
Certification :
ISO9001,TLC
Place of Origin :
CHINA
MOQ :
100
Price :
28~35
Payment Terms :
T/T, L/C, , Western Union
Supply Ability :
5000pcs/month
Delivery Time :
5~8 workers
Packaging Details :
CARTON 6pcs/box 50X60X65CM
5port :
dome+5port
core :
144,192
seal :
mechanical seal
material :
pp+abs
tray :
8
size :
540Lx160D
Description
Dome mechanical seal optical fiber splice closure pp abs sillicon rubber,overhead 540(l)xd160mm max144core, GJS20-DM01A- 5 ports
Quick Detail:
Dome mechanical fiber optic splice closure.

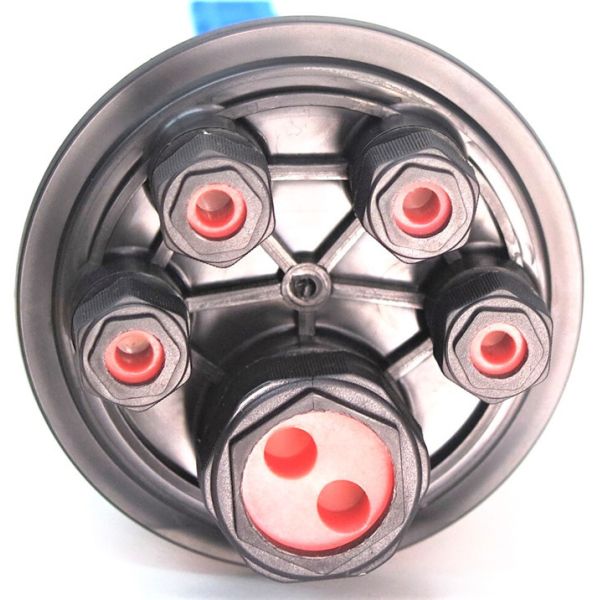

1 big round (dual hole) port+4 small round ports max for 6 cables in &out;Max 8 trays and 144 cores;Suit for 8-20mm cables;Used for wall ,pole,duct , buried..
Description:
1. Protection grade:IP68
2. Material:PP,ABS(new first hand raw material)
3. Number of cable ports: 1 big round port and 4 small round ports
4. Maximum Trays: 6trays
5. Maximum Cores:216(singlel core)
6. Dimension (HxD):540mm *160 mm
7. Package material:6pc/1Carton 0.23cbm
8. Weight:4.5-5.0Kg
9. Cable diameter range:8-20mm
10. Sealing way of cables:Mechanical seal
11. Quality warrenty:2 years
12. Life span:more than 20 years
Applications:
Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..
Specifications:
Model No.of ports Cable range Max trays
Max Capacity Dimensions
GJS20-DM01A 5 8-20mm 6 216 cores 5400×ф160mm
Competitive Advantage:
1.1 The closure can be used in duct, buried, overhead..etc
1.2 High quality impact material.pp and internal is aABS
1.3 Cable magement system
1.4 Cable diameter range: 10~20
1.5 Sealing way of cables:Mechanical seaing by silicon rubber
1.6 Quality warranty:2 years
1.7 Life span:more than 25 years
1.8 IP rating is IP68
144 Core Dome Fiber Optic Splice Closure144 Core Dome Fiber Optic Splice Closure144 Core Dome Fiber Optic Splice Closure
