Product Overview

Core Functions and Technical Features

1. Full-Process Iris Recognition & Matching

● Iris Capture & Identification: Leverages an 850nm imaging wavelength to accurately capture unique and lifelong stable iris texture features (iris texture is highly anti-counterfeiting in biometrics).

● Rapid Encoding & Matching: Achieves an encoding speed of 20 images/second and a matching speed of 2000 templates/second, supporting single-eye or dual-eye recognition. After generating iris feature templates, it quickly compares them with the local library to output identity results.

● Multi-User Capacity: Locally stores information for 1000 users (200 iris templates), meeting identity management needs for medium-scale scenarios.

2. High-Performance Imaging & Algorithm

● Advanced Imaging Specifications: Equipped with a customized high-resolution lens component, it captures images at 640×480 resolution with a 25 frames/second frame rate and 8 bits/pixel depth. The spatial resolution exceeds 4.0 lp/mm (>16 Pixel/mm), clearly presenting iris details.

● Third-Generation Algorithm: Utilizes the Phaseiris^TM3.0 hardware core algorithm, achieving a False Rejection Rate (FRR) of 10^-3 and a False Acceptance Rate (FAR) of 10^-7, greatly reducing false recognition and rejection probabilities for reliable operation in high-security scenarios.

● Parallel Image Output: Supports 320×180 resolution parallel image output, adapting to display and processing requirements of different terminals.

3. Hardware Specifications & Environmental Adaptability

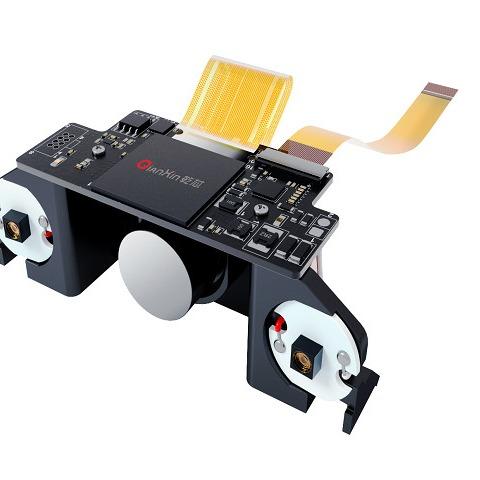

● Lightweight & Efficient Design: With dimensions of 68mm (L) ×26mm (W) ×23mm (H) and a power consumption of 3.2W, the module uses an I2C interface for easy integration into various terminal devices, simplifying hardware integration.

● Wide Environmental Tolerance:

Operating illuminance: 0~6000 Lux (captures clear iris images in both low-light and strong-light environments).

Operating temperature: -10℃ to 55℃; Operating humidity: 0~93% RH (suits indoor, outdoor, high/low-temperature deployment scenarios).

4. Compliance with Standards

● Infrared Safety: Complies with ANSI RP-27.1-96 (USA) and IEC/EN62471 (EU) infrared safety standards.

● Iris Image Standard: Aligns with China's GB/T 33767.6-2018 iris image data standard.

● Algorithm Performance: Conforms to China's GB/T20979-2019 "Information Security Technology - Technical Requirements for Iris Recognition Systems".

Typical Application Scenarios

● Smart Access Control & Attendance: Access control systems in office buildings and factory parks (350-550mm working distance supports comfortable "standing recognition") or attendance terminals for fast iris-based door opening and attendance.

● Smart Cabinet Management: Confidential file cabinets, medical supply cabinets, and tool storage cabinets (ensuring secure cabinet access via iris recognition).

● Smart Locks: Residential and commercial smart door locks, replacing traditional keys or passwords to enhance security and convenience.

● System Identity Authentication: Identity authentication login for computer systems and industrial control platforms, or permission verification for encryption systems to ensure operational security.

Why Choose HOMSH MI30-1000?

1. Advanced & Efficient Algorithm: Phaseiris^TM3.0 algorithm enables FRR 10^-3, FAR 10^-7, fast encoding/matching, and accurate/reliable recognition.

2. Flexible & Lightweight Integration: I2C interface + lightweight form factor (68×26×23mm) for easy embedding into various smart terminals.

3. Strong Environmental Adaptability: Wide temperature, illuminance, and humidity ranges for deployment in complex scenarios.

4. Standard Compliance & Reliability: Meets safety and technical standards in China, the US, and Europe for authoritative deployment.

5. Suitable Capacity: Stores 1000 users (200 iris templates), meeting identity management needs for medium-scale scenarios.

As a professional enterprise in the biometric sector, Wuhan Homsh Technology drives secure authentication through technological innovation. Leveraging proprietary core algorithms, end-to-end technical capabilities, and high-precision hardware expertise, we provide professional support for our full range of biometric products, including iris recognition and vein recognition.

We cater to the needs of global industries like finance and security, offering technical consultation, custom development, and round-the-clock after-sales support. We look forward to partnering with global counterparts to build a secure authentication ecosystem via biometric technology and empower industrial digital upgrading.

Specification parameters
