High Strength Fiber Optic Indoor Cable 24 Core Multimode Optical Cable Mulit Purpose
High Strength Fiber Optic Indoor Cable 24 Core Multimode Optical Cable Mulit Purpose
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-2000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Strength Member :
Aramid Yarn
Name :
24 Core Multimode Fiber Optic Cable
Jacket Color :
Yellow, Orange,Aqua Black
Outer Sheathsion :
LSZH Or Pvc
Highlight :
fiber optic drop cable, breakout fiber optic cable, PVC 24 Core Multimode Fiber Optic Cable
Description
High Strength Fiber Optic Indoor Cable 24 Core Multimode Optical Cable Multi Purpose
24 Fiber Multimode Fan-out Indoor Breakout Fiber Optic Cable with High Strength
Multi Purpose Distribution Cable uses simplex cable (φ900μm tight buffer, aramid yarn as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Key Features
  • Stranded non-metallic strength member structure ensures the cable endures large tensile strength
  • The jacket provides anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant properties and is environmentally friendly
  • Storage Operating Temperature: -20ºC to +60ºC, Installation Temperature: -5ºC to +50ºC
Applications
  • Indoor cable distribution
  • Intra-building backbone cabling including floors, terminal boxes and work stations
  • Short and middle distance direct terminals intra-buildings and within different buildings, each sub-cable unit can be directly connected by standard connector
Fiber Parameters
No. Items Unit Specification G.652D
1 Mode Field Diameter
1310nm
1550nm		 μm
μm		 9.2±0.4
10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.)
1310nm
1550nm		 dB/km
dB/km		 ≤0.4
≤0.3
Cable Parameters
Items Specifications
Fiber Count 2-48
Tight-buffered Fiber
Dimension
Material
Color		 850µm±50µm
PVC
White
Simplex Cable
Dimension
Material
Color		 1.9mm±0.1mm
LSZH
Yellow
Strength Member Kevlar
Printing Marks (1)-(48)
Central Strength Member
Diameter
Material
Color		 3.8mm±0.1mm
FRP+LSZH
Yellow
Outer Jacket
Dimension
Material
Color		 14.5mm±0.5mm
LSZH
Yellow
Mechanical and Environmental Characteristics
Items Unit Specifications
Tension (Long Term) N 600
Tension (Short Term) N 1500
Crush (Long Term) N/10cm 300
Crush (Short Term) N/10cm 1000
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature ºC -10 to +50
Operating Temperature ºC -20 to +60
Storage Temperature ºC -20 to +60
Technical Parameters
Geometrical Characteristics 4 6 8 12 16 18 24
Break-out Cable Diameter (mm) 7.5 8.5 10 12.5 12.5 12.5 14.5
Break-out Cable Weight (kg/km) 45 62 84 138 150 158 202
Mechanical Characteristics
Max Load (N)
Long term
Short term		 200
600
Bending Radius (mm)
Dynamic
Static		 20*D (D: Cable Diameter)
10*D (D: Cable Diameter)
Fiber
Fiber type (core/cladding dimension) 9/125 50/125 62.5/125
Transmission Characteristics SM (1310/1550 nm) 50/125 (850/1300 nm) 62.5/125 (850/1300nm)
Max Attenuation (dB/km) 0.45/0.30 3.5/1.5 3.5/1.5
Typical Attenuation (dB/km) 0.40/0.25 3.1/1.0 3.0/1.0
Min Bandwidth (Mhz.km) -- 400/400 160/500

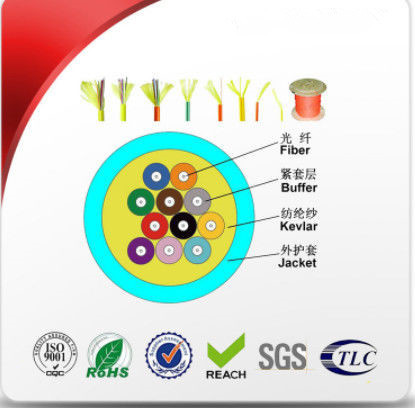

Product Structure
High Strength Fiber Optic Indoor Cable 24 Core Multimode Optical Cable Mulit Purpose High Strength Fiber Optic Indoor Cable 24 Core Multimode Optical Cable Mulit Purpose
Packing & Shipping
High Strength Fiber Optic Indoor Cable 24 Core Multimode Optical Cable Mulit Purpose
