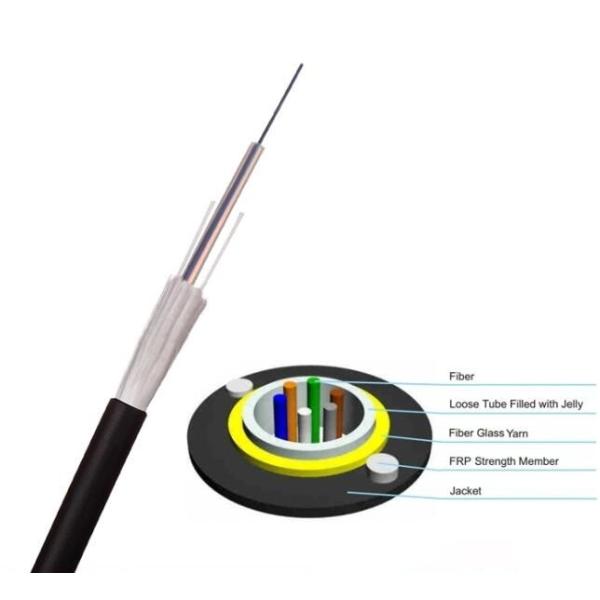

OEM Length GYFXTY Glass Yarn Armored Optical Cable Uni Loose Tube Fiber Cable
OEM Length GYFXTY Glass Yarn Armored Optical Cable Uni Loose Tube Fiber Cable
OEM Length GYFXTY Glass Yarn Armored Optical Cable Uni Loose Tube Fiber Cable
OEM Length GYFXTY Glass Yarn Armored Optical Cable Uni Loose Tube Fiber Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Applocation :
Indoor/Outdoor
Outer Jacket :
LSZH
Shape Or Structure :
Can Be Produced As Per Buyer's Request
OEM :
Yes
Jacke :
PVC Or LSZH
Reinforce :
Steel Or FRP
Cable Dimension :
3.1*2.0mm
Cable Material :
LSZH/PVS/ZRPO/OFNR/OFNP/PE
Construction :
Steel Messenger
Tensile Strength :
100N, 200N, 300N
Fiber Count :
1-4 Fibers
Keyword :
FTTH Drop Cable
Fiber Type :
Single-mode G.657A2
Highlight :
All Dielectric Optical Fiber Cable, GYFXTY Uni-Loose Tube Cable
Name :
Universal Fiber Optic Cable
Description
GYFXTY Glass Yarn Armored Fiber Optic Cable Uni Loose Tube All Dielectric Optical Fiber Cable
Product Overview

GYFXTY Glass Yarn Armored Uni-Loose Tube All Dielectric Optical Fiber Cable is designed for reliable performance in demanding environments.

OEM Length GYFXTY Glass Yarn Armored Optical Cable Uni Loose Tube Fiber Cable
Application Fields
  • Long-distance communication systems
  • Local Area Networks (LAN)
  • Moisture-proof and rodent-proof installations
Key Characteristics
  • Corrugated aluminum tape provides high tension and crush resistance
  • Special gel in the tube offers critical protection for optical fibers
  • Steel wire central strength member for structural integrity
  • Anti-UV PE jacket for outdoor durability
  • Resistant to high and low temperature cycles, resulting in anti-aging properties and extended lifespan
Technical Specifications
Fiber Count Outer Diameter (mm) Weight (kg/km) Min. Bending Radius (mm) Tension (N) Crash Loading (N/100mm)
Static Dynamic Short Term Long Term Short Term Long Term
2-30 9.8 95 10×O.D. 20×O.D. 1500 600 1000 300
32-36 10.3 115 10×O.D. 20×O.D. 1500 600 1000 300
38-60 10.7 115 10×O.D. 20×O.D. 1500 600 1000 300
62-72 11.3 140 10×O.D. 20×O.D. 1500 600 1000 300
74-96 12.9 175 10×O.D. 20×O.D. 1500 600 1000 300
98-120 14.4 210 10×O.D. 20×O.D. 1500 600 1000 300
122-144 15.8 245 10×O.D. 20×O.D. 1500 600 1000 300
146-216 16.3 260 10×O.D. 20×O.D. 1500 600 1000 300
218-240 19.5 345 10×O.D. 20×O.D. 1500 600 1000 300
242-288 21.7 415 10×O.D. 20×O.D. 1500 600 1000 300
GYTA Aluminum Tape Armored G652D Fiber Optic Cable
Description and Standards

The fibers (250μm) are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cables with high fiber count, locates in the center of the core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with filling compound to protect it from water ingress. The cable is completed with a PE sheath.

GYTA fiber cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

GYTA Cable Characteristics
  • Excellent mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensures critical protection of fibers
  • Specially designed compact structure prevents loose tubes from shrinking
  • PE sheath protects cable from ultraviolet radiation
Watertight Protection Measures:
(1) Steel wire used as the central strength member
(2) Loose tube filling compound
(3) 100% cable core filling
(4) APL moisture barrier
