G652D G657A1 G657A2 OPGW Fiber Cable Ground Wire 36 Core Outdoor Use
G652D G657A1 G657A2 OPGW Fiber Cable Ground Wire 36 Core Outdoor Use
Specifications
Brand Name :
MingTong
Model Number :
OPGW
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-5000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Application :
Telecommunication, Aerial, Telecom, Network
Fiber :
G652D, G657A1, G657A2
Cable Diameter :
9-18.2mm
Bending Radius :
25 Times Cable Diameter
Package :
Iron-wooden Reel
Highlight :
Aerial Optical Fiber Ground Wire
Name :
OPGW Cable
Description

OPGW Optical Ground Wire 36 Core Outdoor Aerial Fiber Optic Cable

The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.

Features

• Large diameter, large fiber capacity

• The structure is stable and the reliability is high

• Excellent capability against side and outstanding short circuit current capacity

• The optimum stranding design can obtain the surplus length of secondary optical fiber

• The number of strands can be designed in two or three layers

• Match with common ground wires

Speicfication

Structure Max fiber count AS sectional area Dia.(mm) Weight (kg/km) RTS(kN) 20°C DC resistance (O/km) 40-200°C Allowable short circuit current capacity(KA2.S )
OPGW-36B1.3-120-[145;73] 1/3.0/20AS+5/2.9/20AS+ 36 ≈120 14.6 ≤820 ≥145 ≤0.77 ≥73
12/2.9/20AS,Unit 1/2.8
OPGW-36B1.3-120-[95;98] 1/3.0/30AS+5/2.9/30AS+ 36 ≈120 14.6 ≤700 ≥95 ≤0.55 ≥98
12/2.9/30AS,Unit 1/2.8
OPGW-36B1.3-120-[74;110] 1/3.0/40AS+5/2.9/40AS+ 36 ≈120 14.6 ≤582 ≥74 ≤0.42 ≥110
12/2.9/40AS, Unit 1/2.8

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

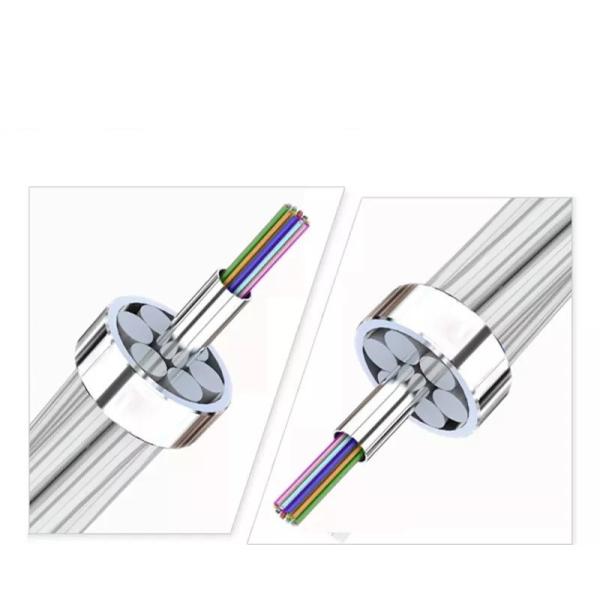

Structure and Product Pictures

G652D G657A1 G657A2 OPGW Fiber Cable Ground Wire 36 Core Outdoor Use G652D G657A1 G657A2 OPGW Fiber Cable Ground Wire 36 Core Outdoor Use

Packing and Shipping

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

G652D G657A1 G657A2 OPGW Fiber Cable Ground Wire 36 Core Outdoor Use

G652D G657A1 G657A2 OPGW Fiber Cable Ground Wire 36 Core Outdoor Use
