Fiber Optic Cable Outdoor Gcyfy - 96b1.3 G652D Air Blown Fiber ABF SM
Fiber Optic Cable Outdoor Gcyfy - 96b1.3 G652D Air Blown Fiber ABF SM
Fiber Optic Cable Outdoor Gcyfy - 96b1.3 G652D Air Blown Fiber ABF SM
Fiber Optic Cable Outdoor Gcyfy - 96b1.3 G652D Air Blown Fiber ABF SM
Specifications
Brand Name :
Aitong
Model Number :
GCYFY
Certification :
ISO9001
Place of Origin :
China
MOQ :
10KM
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100KM/Day
Delivery Time :
5-8 Days
Packaging Details :
Wooden Drum
Product name :
96B1.3 G652D GCYFY
Application :
OUTDOOR
Number of conductors :
96
Fiber type :
G652D,G657A2,G657
Color :
Black,Customized
Length :
2KM,Customized
Type :
Outdoor Optical Cable Aerial
Description

GCYFY 96B1.3 Single Mode G652D Air Blown Fiber ABF Outdoor Fiber Cable

Description

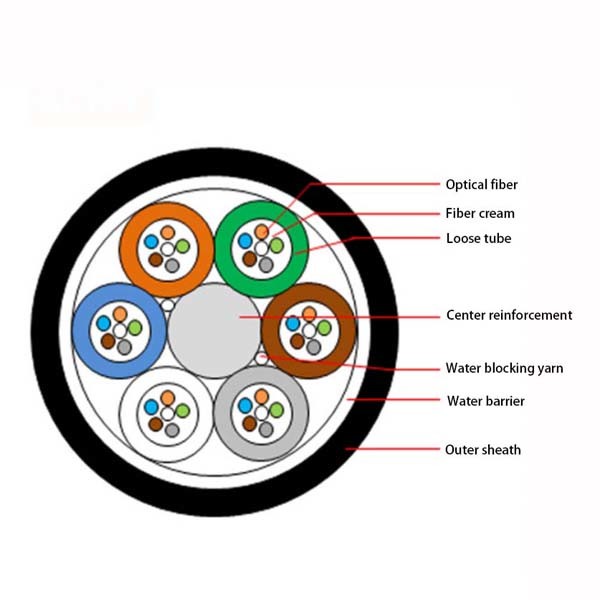

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a HDPE sheath.

Characteristcs:

1. Small diameter, light weight, easy to bend when laying by air blowing equipment, easy to operate;
2. All non-metal structure, no need to be grounded , low friction coefficient sheath material and structure design, long distance air blown laying;
3. Full use of pipe hole resources, construction speed is fast;
4. With the growth of communication business volume, it can be blown into optical cable in batches, and the investment is distributed to reduce the early investment;
5. It is suitable for construction in crowded MAN pipeline and avoids the destructive excavation in the past;

Properties:

1. Non-mental design can prevent the cable from radio interference and magnetic wave interference
2. Specially designed compact structure is good at preventing loose tubes from shrinking
3. Loose tube filling compound ensure good moisture resistance performance
4. Good flexibility
5. High dense fiber packed,small diameter and light weight; it`s the better option for blowing installation progress.

APPLICATIONS
It is used for backbone network, MAN and access network laying installation.
Basic parameters:
Country of Origin
China
Product name
ABF air blown fiber optic cable
Brand name
OUFU or OEM
Type
GCYFY-96B1.3
Fiber count
96 cores
Fiber model
Single mode G652D (B1.3)
Weight
about 33kg/km
5.5Outer diameter
6.9mm
Structure
Loose tube stranding;
Non-metallic structure
Strength member
GFRP
Sheath material
HDPE
Color
Black
Operation temperature
-40~+70℃
Micro tube diameter
≤10.0mm

Fiber Parameter:
Item
Unit
Specification
G. 652
Mode field diameter
1310nm
mm
8.6±0.4um
1550nm
mm
9.8±0.8um
Cladding diameter
mm
124.8±0.7 um
Cladding non-circularity
%
≤0.7%
Core/cladding concentricity error
mm
£0.5
Coating diameter
mm
242 ± 7
Coating/cladding concentricity error
mm
£12
Cable cut-off wavelength
nm
£ 1260
Attenuation Coefficient
1310nm
dB/km
£0.36
1550nm
dB/km
£0.22
Proof stress level
kpsi
≥100

Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.


Fiber Optic Cable Outdoor Gcyfy - 96b1.3 G652D Air Blown Fiber ABF SM

Fiber Optic Cable Outdoor Gcyfy - 96b1.3 G652D Air Blown Fiber ABF SM Fiber Optic Cable Outdoor Gcyfy - 96b1.3 G652D Air Blown Fiber ABF SM

Packaging & Shipping

Package Details:

Iron-wooden drum or fumugated wooden drum,normal wooden drum

Drum size can be designed,details will calculation for suitable for containers

Package:

Standard Wooden Drum With Protection
Standard reel length:2/3/4/5km/reel,other length is also available
