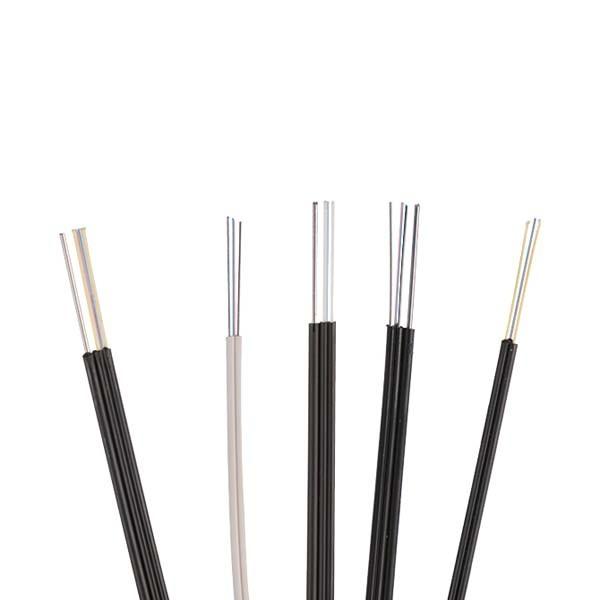

Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH
Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH
Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH
Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH
Specifications
Brand Name :
Aitong
Model Number :
GJYXCH
Certification :
ISO9001,ISO9001/CE/RoHS
Place of Origin :
China
MOQ :
10KM
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, T/T
Supply Ability :
100KM/Day
Delivery Time :
5-8 Days
Packaging Details :
Wooden Drum
Product name :
2 Core FRP GJYXCH FTTH Drop Cable
Fiber type :
G657A2,G652D
Application :
FTTH FTTB FTTX Network,indoor/outdoor,Telecom
Fiber count :
capacity 1-4fibers
Material :
LSZH Jacket
Color :
black/white
Type :
Butterfly Drop
Description

2 core FRP GJYXCH bow-type drop cable Black FTTH Fiber Optic Cable

Description

The GJYXCH FTTH fiber optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.
Characteristics
1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3. Single steel wire as the additional strength member ensures good performance of tensile strengh.
4. Simple structure, light weight and high practicability.
5. Novel flute design, easily strip and splice, simplify the installation and maintenance.
6. Low smoke,zero halogen and flame retardant sheath.

Features

1. Compact structure of protable, convenient for indoor wiring.

2. Excellent resistance to lateral pressure protection design.

3. Soft, flexible, easy to splice, and high practicability.

4. Environmental protection. Low smoke, zero alogen and flame retardant sheath.

Applications

1. Used in indoor outdoor cabling,especially used for FTTH.
2. Used as access building cable.

Cable Parametres

Model No. Fiber count (core) Cable diametre (mm) Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N) Bending Radius
Static/Dynamic
(mm)
GJYXCH 1 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
GJYXCH 4 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5

Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH

We produce and test cable comply with following standard

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14

Why Choose Us?

Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH

Production and Qulaity Test

Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH

Packing and Delivery

Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH Bow Type Drop Black FTTH Fiber Optic Cable 2 Core FRP GJYXCH

FAQ

Q1: Where is your factory ?
A1: Our factory is located in Deyang City, Sichuan Province, China.
Q2: How long has your company been doing this?
A2: More than 31 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3: How about the cable's quality?
A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A6: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5: Do you accept the OEM order and how many is the MOQ?
A7: Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
