Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Specifications
Price :
SG$17.14-22.33
Product Name :
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Pull out torque :
5.5gf-cm
Delivery Time :
1-4WEEK
No. of Phase :
2 Phase
Resistance :
19Ω
Voltage :
5.0 DCV
Model Number :
07-005-042
Payment Terms :
T/T&ID card
Excitation type :
2-2 Phase excitation
Place of Origin :
Sichuan, China
MOQ :
100
Packaging Details :
CARTON
Step angle :
18°/Step
Brand Name :
CCHT
Diameter of motor :
OD 10mm
Description
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Product Performance

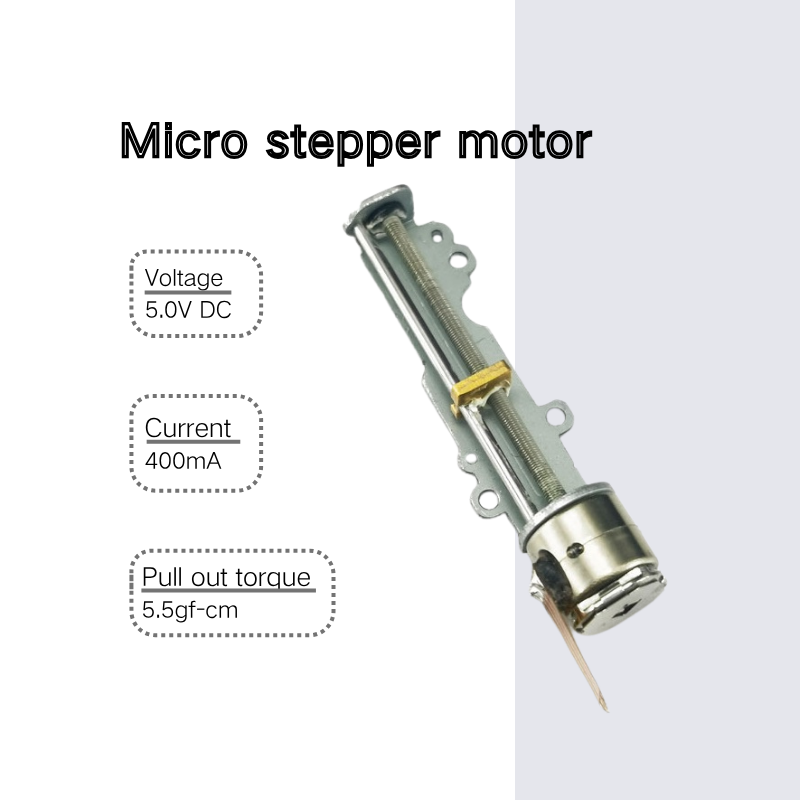

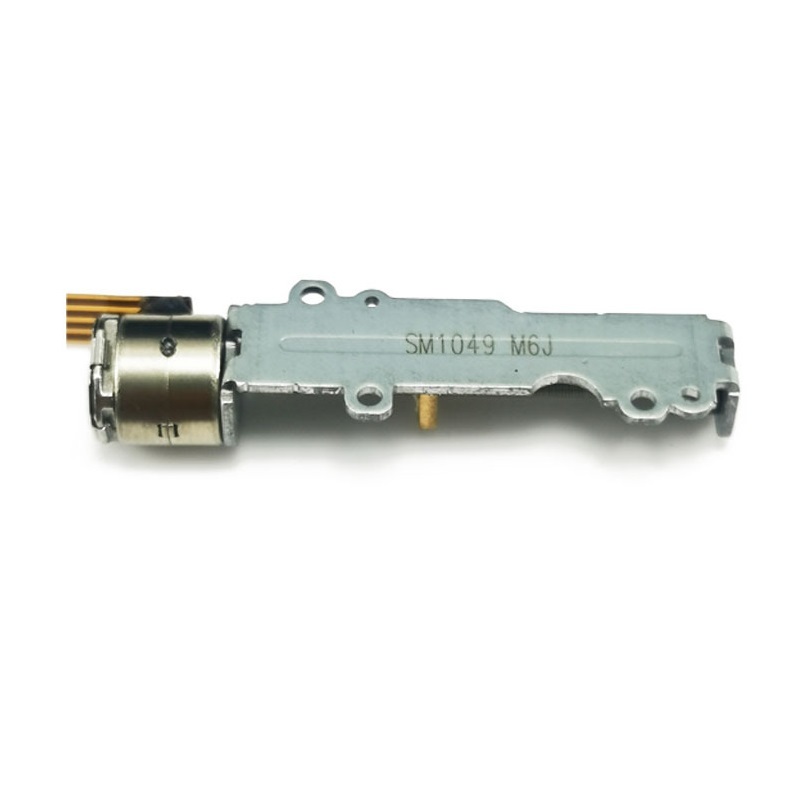

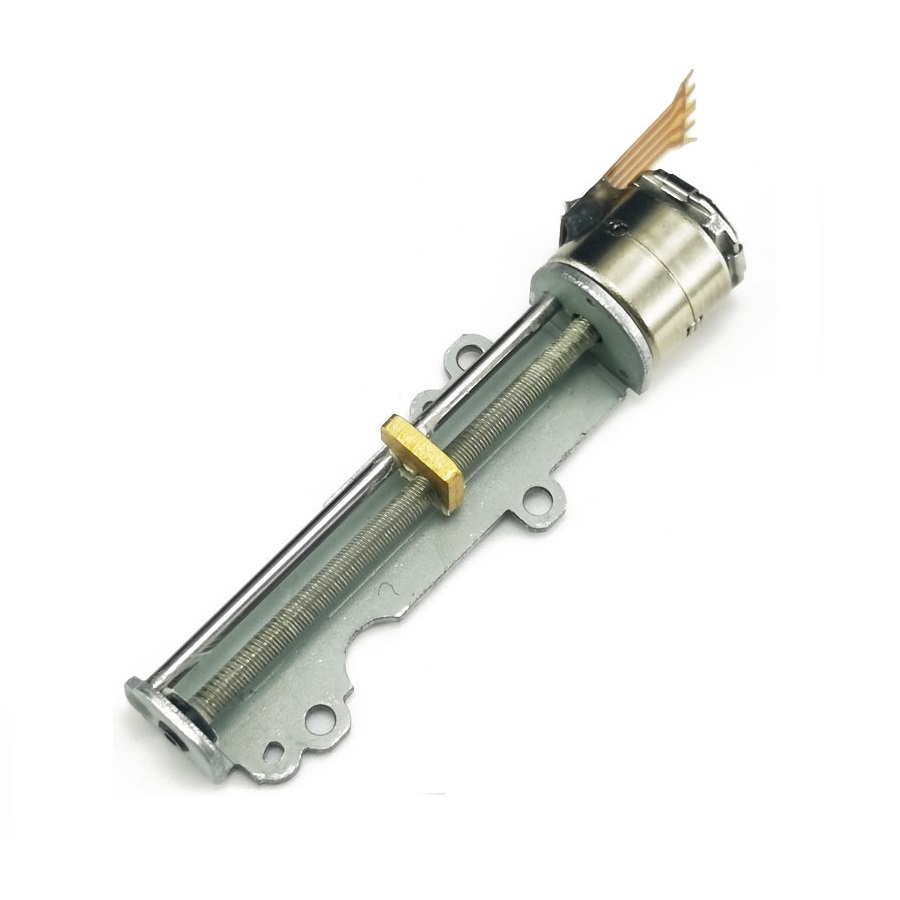

Model 07-005-042 is a DC micro linear stepper motor designed for precision blade shutter applications. It converts rotational motion into linear displacement via a copper slider, delivering accurate stroke positioning for detector calibration.

  • Dimensions: Φ10*(10.62+37.6)mm, Stroke: 34.4mm
  • Rated Voltage: 5V DC, Current: 400mA
  • Phase Resistance: 19Ω
  • Pull-out Torque: ≥5.5gf-cm (500PPS, 5V DC)
  • Slider Material: Copper, Body Material: Plastic & Metal
  • Package: Blister/foam tray inner, carton outer
Product Usage & Features

Usage: Primarily used for blade shutter mechanisms in detector calibration systems, addressing measurement deficiencies through precise position adjustment. Suitable for mini optical instruments, detection devices and precision micro-adjustment modules requiring linear stepping control.

Features:

  • Linear motion output: 34.4mm effective stroke with copper slider for smooth movement
  • Low voltage operation: 5V DC input, easy integration with low-power control systems
  • Compact size: Φ10mm miniature diameter, ideal for space-limited assemblies
  • Reliable torque: ≥5.5gf-cm pull-out torque ensures consistent shutter actuation
  • Durable construction: Plastic & metal body with copper sliding component
Applications
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Packing & Shipping
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Company Introduction
Chengdu Century Huasha Trading Co., Ltd. (CCHT) is located in Chengdu which is the largest and most developed city in southwest China. CCHT is a professional supplier of micro drive module, lens, camera module, etc. CCHT supplies 1000+ products, services 100+ customers and exports to 40+ countries world-wide.
Micro Stepper Motor 10mm 5V DC Linear Actuator with Long Stroke Lead Screw for Automation & Robotics
Our Services & Strength
One stop factory: Customize, Design, Manufacture
