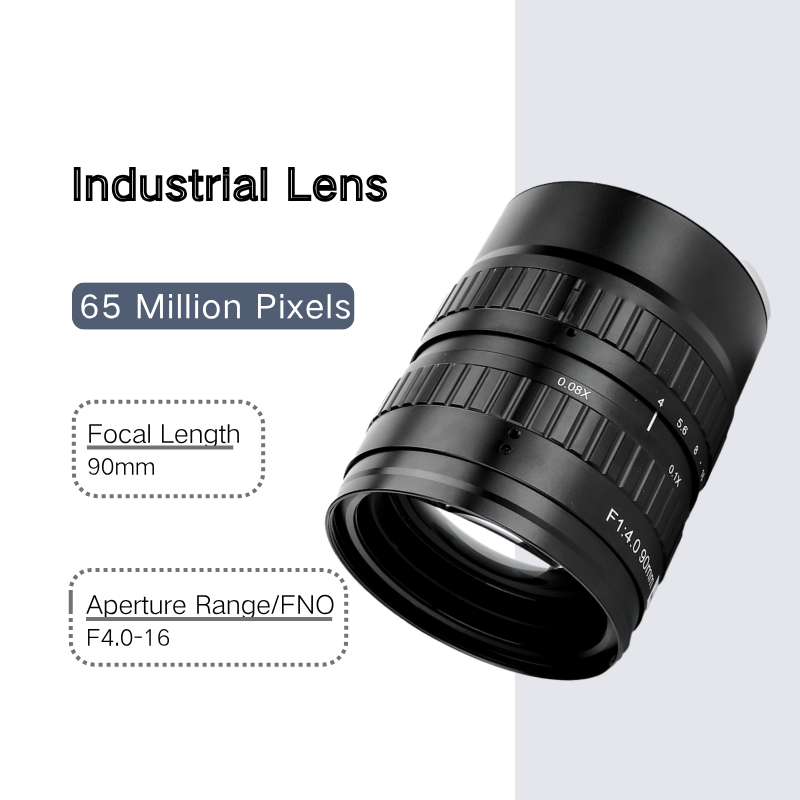

65MP 90mm F4.0 F-Mount Machine Vision Lens
65MP 90mm F4.0 F-Mount Machine Vision Lens
65MP 90mm F4.0 F-Mount Machine Vision Lens
65MP 90mm F4.0 F-Mount Machine Vision Lens
65MP 90mm F4.0 F-Mount Machine Vision Lens
65MP 90mm F4.0 F-Mount Machine Vision Lens
65MP 90mm F4.0 F-Mount Machine Vision Lens
65MP 90mm F4.0 F-Mount Machine Vision Lens
Specifications
Model Number :
26-008-056
Resolution :
65MP
Payment Terms :
T/T&ID card
Flange distance :
46.5mm
Place of Origin :
Sichuan, China
Sensor Size :
φ43.2mm
Price :
$95-105 / piece
Distortion :
＜0.01%
Magnification Range :
0.08X-0.14X
Delivery Time :
1-4WEEK
FL :
90mm
Dimension :
φ72×91.05mm
MOQ :
100 pieces
FNO :
F4.0-16
Packaging Details :
CARTON
O/I :
1123.5mm
Filter size :
M62×P0.75
Brand Name :
CCHT
Product Name :
90mm F4.0 65MP Fixed Focal Machine Vision Industrial Lens
Mount :
F-Mount
Description

65MP 90mm F4.0 F-Mount Machine Vision Lens

Product Performance

  • 65MP High Resolution: Optimized for 65‑megapixel large‑format industrial cameras, delivers ultra‑sharp imaging for high‑precision inspection and measurement tasks.

  • 90mm Long Focal Length: Telephoto large‑format optical design, suitable for medium‑long working‑distance detection and high‑accuracy dimensional measurement.

  • F4.0‑F16 Adjustable Aperture: Flexible aperture tuning balances brightness and depth of field to adapt complex factory lighting conditions.

  • Large‑format Compatibility: Supports sensor up to φ43.2mm, meets imaging requirements for large area scanning vision systems.

  • Extremely Low TV Distortion: TV distortion less than 0.01%, ensures exceptional geometric accuracy for measurement‑oriented machine‑vision applications.

  • Magnification Range 0.08X‑0.14X: Covers multiple magnification demands, standard at 0.1X for stable field‑of‑view performance.

  • Standard F‑mount Interface: Mature F‑mount design, widely compatible with large‑format industrial cameras, easy for system integration.

  • Precision‑oriented Industrial Construction: Rigorous optical and mechanical design, reliable performance for demanding large‑format machine‑vision environments.

Application Scenarios

  • Robotic Bin Picking: Providing a wide, stable view for robotic arms to identify, locate, and pick random parts from cluttered bins on assembly lines.

  • Conveyor Belt Overview Inspection: Monitoring products over a wide area on high-speed logistics or packaging lines to check for presence, orientation, or gross defects.

  • AGV Navigation & Safety: Serving as a primary vision sensor for Autonomous Guided Vehicles to map surroundings, detect obstacles, and ensure safe navigation in dynamic warehouses.

Product Usage
65MP 90mm F4.0 F-Mount Machine Vision Lens 65MP 90mm F4.0 F-Mount Machine Vision Lens
Object Measurements
65MP 90mm F4.0 F-Mount Machine Vision Lens
Industrial Robot Vision Localization
65MP 90mm F4.0 F-Mount Machine Vision Lens
Object Sorting
65MP 90mm F4.0 F-Mount Machine Vision Lens
Company Introduction

Chengdu Century Huasha Trading Co., Ltd. (CCHT) is located in Chengdu which is the largest and most developed city in southwest China.

CCHT is a professional supplier of micro drive module, lens, camera module, etc.

CCHT supplies 1000+ products, services 100+ customers and exports to 40+ countries world-wide.

65MP 90mm F4.0 F-Mount Machine Vision Lens
Our Services & Strength

One stop factory: Customize, Design, Manufacture
