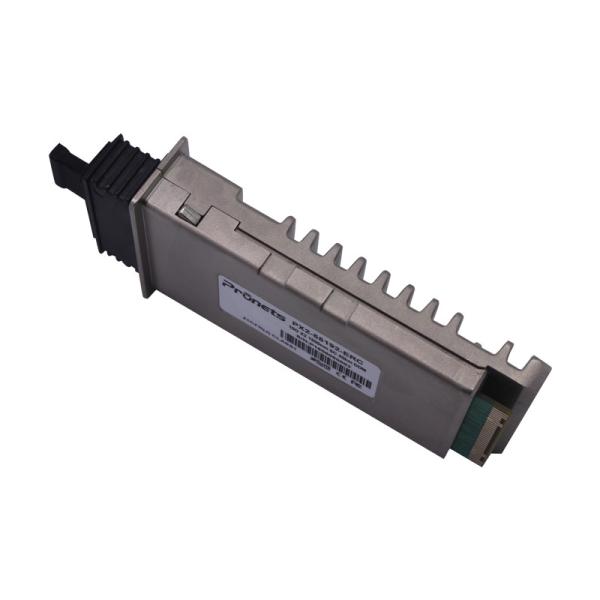

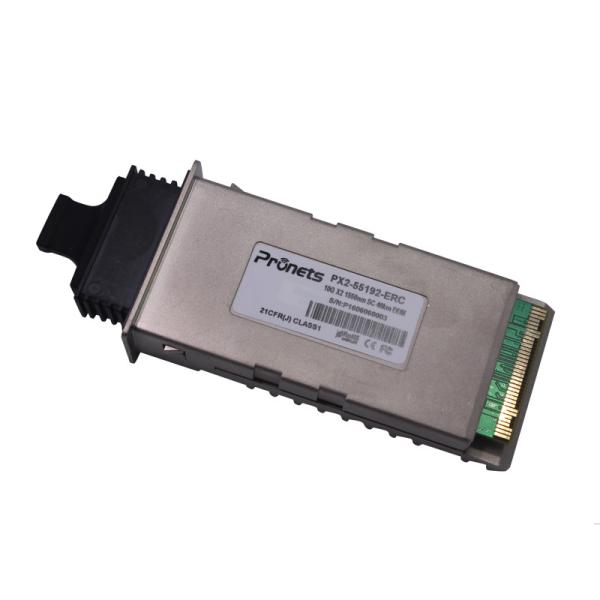

10Gbps 10G X2 And XENPAK Transponder P2C-XX192-XXC Compatible With Aruba H3C
10Gbps 10G X2 And XENPAK Transponder P2C-XX192-XXC Compatible With Aruba H3C
10Gbps 10G X2 And XENPAK Transponder P2C-XX192-XXC Compatible With Aruba H3C
10Gbps 10G X2 And XENPAK Transponder P2C-XX192-XXC Compatible With Aruba H3C
10Gbps 10G X2 And XENPAK Transponder P2C-XX192-XXC Compatible With Aruba H3C
10Gbps 10G X2 And XENPAK Transponder P2C-XX192-XXC Compatible With Aruba H3C
Specifications
Brand Name :
Pronets or OEM
Model Number :
P2C-XX192-XXC
Certification :
UL FCC RoHS FDA
Place of Origin :
China
MOQ :
1pcs
Price :
US $
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Packaging Details :
plastic containers
type :
fiber optical active passive product
keyword :
optical transceiver/Network switch/Media converter
Description

10Gbps P2C-XX192-XXC compatible with Cisco Juniper Huawei HP Aruba H3C

PRONETS 70KM~80KM 10 Gbp/s CWDM X2 ZR Transponder

Features

X2 MSA Compliant

70-PIN connector

SC duplex receptacle package

Wavelength selectable to ITU-T standards covering

CWDM grid wavelengths

Cooled EA-DFB/APD

1470nm~1570nm link length up to 80km (1600ps/nm)

1590nm~1610nm link length up to 70km (1400ps/nm)

Power supply: +5.0 V, +3.3 V, APS:+1.2 V

Power Dissipation 9W Maximum

0ºC to 70ºC Operating Case Temperature

Digital Diagnostic Monitoring

Management and control with MDIO 2-wire bus

XAUI electrical interface 4 x 3.125 Gb/s Ethernet

RoHS compliant and lead free

Applications

10 Gb/s Ethernet transmission systems

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage+5V Vcc5 6.0 V
Supply Voltage_3.3V Vcc3 4 V
Supply Voltage APS Vaps 2 V
Storage Temperature Tst -20 85 ºC
Optical Input Received Power PIN - -1 dBm
