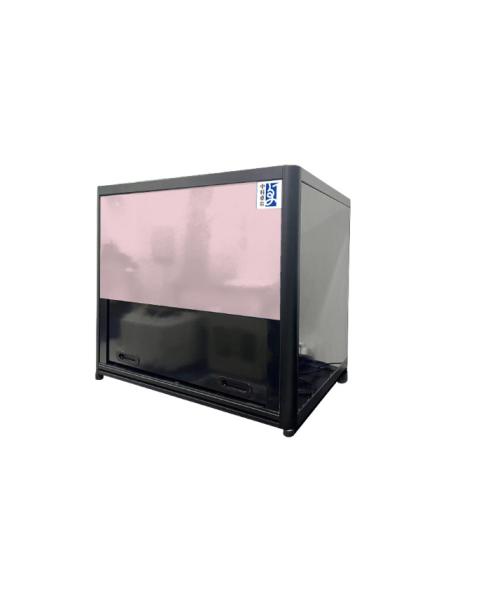

Wafer Flatness Detection Surface Shape Detection Equipment
Wafer Flatness Detection Surface Shape Detection Equipment
Specifications
Brand Name :
ZEIT
Model Number :
SSD-W-X—X
Certification :
Case by case
Place of Origin :
Chengdu, P.R.CHINA
MOQ :
1set
Price :
Case by case
Payment Terms :
T/T
Supply Ability :
Case by case
Delivery Time :
Case by case
Packaging Details :
Wooden case
Size :
Customizable
Customizable :
Available
Guarantee period :
1 year or case by case
Shipping Terms :
By Sea / Air / Multimodal Transport, etc
Description

Wafer Structural Light Surface Shape Detection Equipment

Applications

Wafer flatness detection.

Working Principle

The point cloud distribution and curvature distribution of the measured surface are calculated according to the

deformation of the light stripe, and the surface shape error distribution can be obtained by comparing the point

cloud distribution with ideal model.

Features

Model SSD-W-X—X
Measuring range 200×150mm2
Transverse resolution Conventional 0.25mm, adjustable
Measuring precision Absolute error: ±3μm (100mm in diameter)
Note: Customized production available.

Detection Image

Wafer Flatness Detection Surface Shape Detection Equipment

Our Advantages

We are manufacturer.

Mature process.

Reply within 24 working hours.

Our ISO Certification

Wafer Flatness Detection Surface Shape Detection Equipment

Parts of Our Patents

Wafer Flatness Detection Surface Shape Detection EquipmentWafer Flatness Detection Surface Shape Detection Equipment

Parts of Our Awards and Qualifications of R&D

Wafer Flatness Detection Surface Shape Detection EquipmentWafer Flatness Detection Surface Shape Detection Equipment
