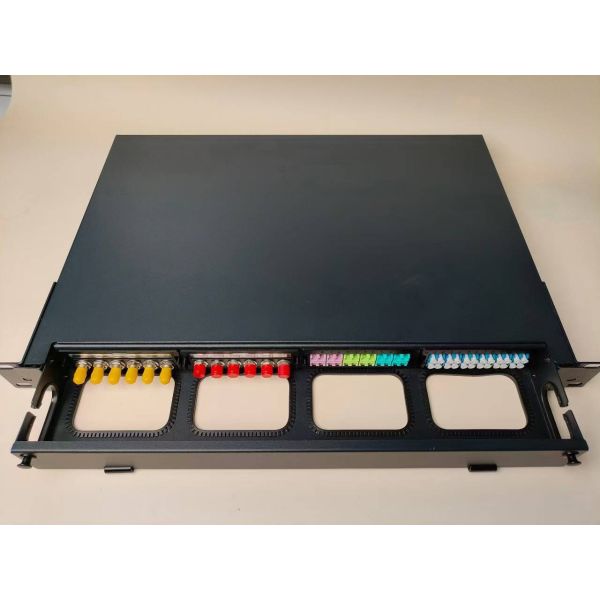

1U Cores MTP MPO -LC Patch panel ODF Chassis enclosure Sliding type for 4 Cassettes with Cable Management
1U Cores MTP MPO -LC Patch panel ODF Chassis enclosure Sliding type for 4 Cassettes with Cable Management
1U Cores MTP MPO -LC Patch panel ODF Chassis enclosure Sliding type for 4 Cassettes with Cable Management
1U Cores MTP MPO -LC Patch panel ODF Chassis enclosure Sliding type for 4 Cassettes with Cable Management
1U Cores MTP MPO -LC Patch panel ODF Chassis enclosure Sliding type for 4 Cassettes with Cable Management
1U Cores MTP MPO -LC Patch panel ODF Chassis enclosure Sliding type for 4 Cassettes with Cable Management
Specifications
Brand Name :
Twilight
Model Number :
TW-1U4MDA05
Place of Origin :
Made In China
MOQ :
5
Price :
Can be disscussed
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
15-20 working days
Packaging Details :
Standard Carton
Material :
Cold-rolled steel sheet
Size :
482.6*363*44mm
Max Capacity :
96 Core LC
Cassette Module :
4 pcs
Main body's depth :
1.2mm
Color :
Black
Warranty :
Many Years
Type :
MTP, MPO to LC Cassette Module
Description

1U Cores MTP MPO -LC Patch panel ODF Chassis enclosure Sliding type for 4 Cassettes with Cable Management


Description:

MPO patch panel is a high density panel which is specially designed to accommodate high density cabling solutionin Data Center and Telecommunication central office. MPO patch panel supports maximum 4xMPO cassettes in 1U,8 x cassettes in 2U and 12 cassettes in 3U.Each MPO cassetteisa vailable in 12 or 24xLC connectors,which provides max.96 portsin 1U,192 portsin 2U and 288 portsin 3U (LC).

Specification:

Parameters

Model

TW-1U4MDA05

Max. No. of Cores

192 Cors LC

Main Body Thick

1.2mm

Max of Splice Tray

4 pcs

Splice Tray Type

48 Fibers

Color of Splice Tray

Black

Material

Cold rolled steel sheet

Adapter Panel

LC,ST,FC,SC

Cassete type

MPO/MTP to LC

Withstanding Voltage (V/min)

3000 (DC), no breakdown, no flashover

Installation Type

Rack Mount

Color

Black

Operating Temperature (°C)

-40~ +60

Dimensions (mm)

482.6*363*44mm

Weight (kg)

5kg

Features:

♦ It is made of high quality cold rolled steel plate with a thickness of 1.2mm.
♦ No burr, no bubbles, no screw fixing, clip type top cover, no tool opening.
♦ After strict degreasing, pickling, rust-proof phosphating and pure water cleaning, which meets RoHS environmental protection standards.

♦ Suitable for 19 inch standard frame.
♦ Compact design for space saving.
♦ Modular design, which can be used in multiple module boxes and configured in MPO-LC Type Distribution Box.
♦ The MPO ribbon multi-core fiber is divided into multiple lc interfaces to realize parallel conversion of MPO-LC.

Application:

1. CATV,Metro test equipment

2. Telcommunication networks

3. Local area networks(LAN)

4. Wide area networks(WAN)

5. Premise installations
