LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
Specifications
Brand Name :
Twilight Optic or OEM
Model Number :
TW-2U6MDA04-LCD
Place of Origin :
Made In China
MOQ :
1
Price :
Can be disscussed
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
25-30 working days
Packaging Details :
Standard Carton
Material :
Cold-rolled steel sheet
Size :
433*350*2U
Max Capacity :
72 Core LC
Adapter Panel :
6 pcs
Main body's depth :
1.5mm
Color :
Black
Warranty :
Many Years
Type :
MTP, MPO to LC Cassette Module
Description

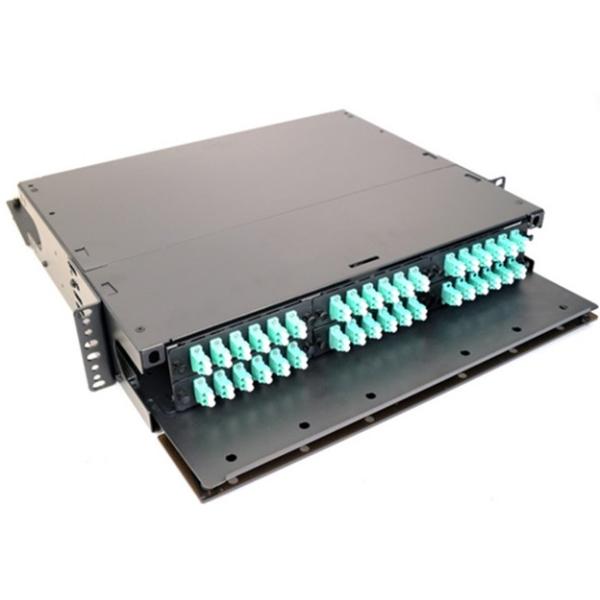

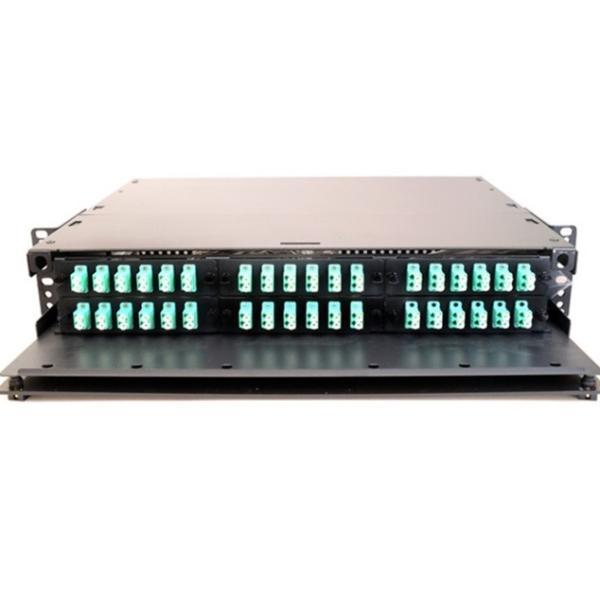

2U LGX Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F , Unloaded

Description:

2U Patch Panel, additional options include a 1U, 3U and 4U versions.

This is a full LGX compatible patch panel that accommodates LGX adapter plates or LGX MTP/ MPO Cassettes. These units have a pull out tray and offer full access from the front and rear.

They also feature a full smoked, front hinged access panel along with a hinged access panel in the rear. Come with mounting hardware and cable management accessories.

Specification:

Connector Type

LC,FC,ST,SC or MPO to LC Cassette module

Size

1U 19inch

Weight

7kg/pc

Simplex or Duplex

SC.ST,FC Simplex or LC Duplex or LC Quad

Color

Black

Material

Cold Rolled Steel Sheet

Application

For Cable Distribution

Warranty

Many years

Features:

1. LGX Compatible
2. Rack Mountable
3. Holds 6 LGX adapter panels for 12, 24 or 36 Duplex LC Port Configurations
4. 19" Standard Size, Light Weight and Robust Structure
5. Changeable Modules Inside
6. Suitable for both Ribbon and Round Cable
7. Improved design to ensure fiber optic cable bend radius not less than 40mm
8. Powder Coated
9. Smoked Lexan Front Cover
10. Slide-out Tray for Easy Access
11. Front and Rear Hinged Doors

Application:

1. Enterprise network & Datacenter
2. Indoor application
3. Accepts Indoor and Outdoor Pre-terminated cables and MTP/MPO Modules and Splicing

LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F

LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F

LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F

LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F

LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F

LGX 2U Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F
