Specifications
Brand Name :
Twilight Optic
Model Number :
TW-FAT-24C-A
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/day
Delivery Time :
3-8 work days
Packaging Details :
10 pcs/ Carton, Size:56x36x61cm, G/W:21KG
Name :
Fiber Optical FTB Distribution Enclosure
Use :
FTTH FTTX FTTB
Fiber bend radius :
More than 40mm
Network :
3G, 4g, Wired LAN, Wireless Lan
Suitable Adapter :
SC/LC/ST/FC
Ferrule End-face :
APC/UPC
Material :
PC+ABS
Size :
340*250*110mm
Description

24Port Fiber Optic Distribution Enclosure SC/LC/ST/FC APC/UPC Wall/Pole Mount

Description

FAT-24C-A fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Name Fiber Optical FTB Distribution Enclosure
Use FTTH FTTX FTTB
Fiber bend radius More than 40mm
Network 3G, 4g, Wired LAN, Wireless Lan
Suitable Adapter SC/LC/ST/FC
Ferrule End-face APC/UPC
Material PC+ABS
Size 340*250*110mm
Color Black
Waterproof IP-66 Protection Level


Features
► Water-proof design with IP-66 Protection level.
► Integrated with splice cassette and cable management rods.
► Manage fibers in a reasonable fiber radius condition.
► Easy to maintain and extend the capacity.
► Fiber bend radius control more than 40mm.
► Suitable for the fusion splice or mechanical splice.
► 1*16 Splitter can be installed as an option.
► Efficient cable management.
► 24 ports cable entrance for drop cable.
Configuration
Material Size Max Capacity Installation Size Weight Color
PC+ABS
A*B*C(mm)
340*250*110
SC
24 Ports
PLC
1x16(SC)
D*E(mm)
154*82
1.5kg
 Black




24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

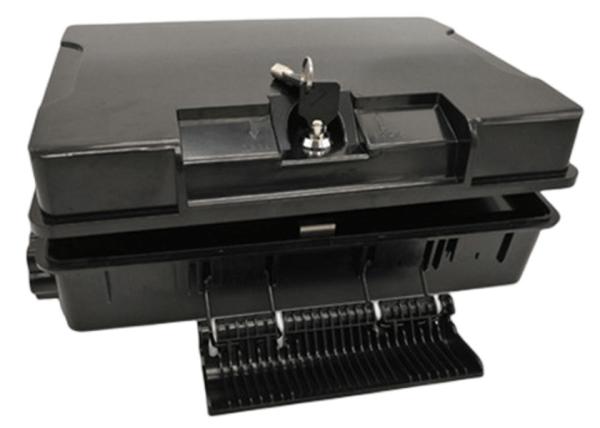

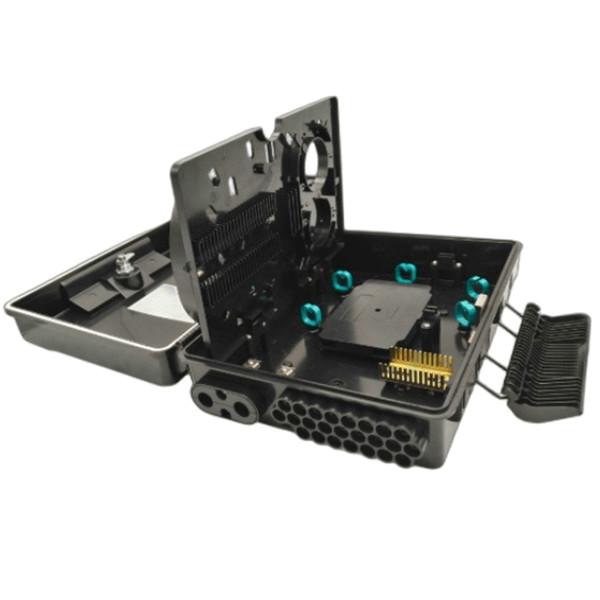

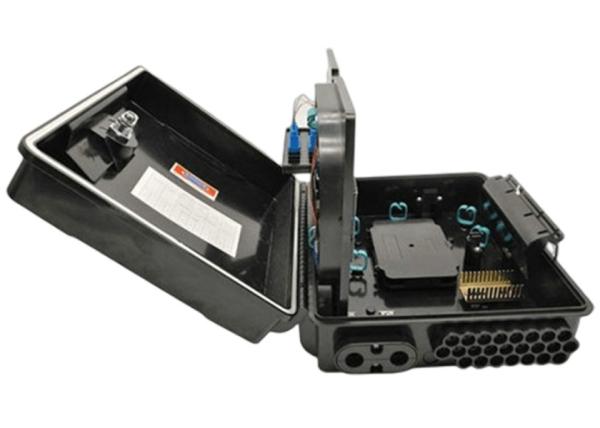

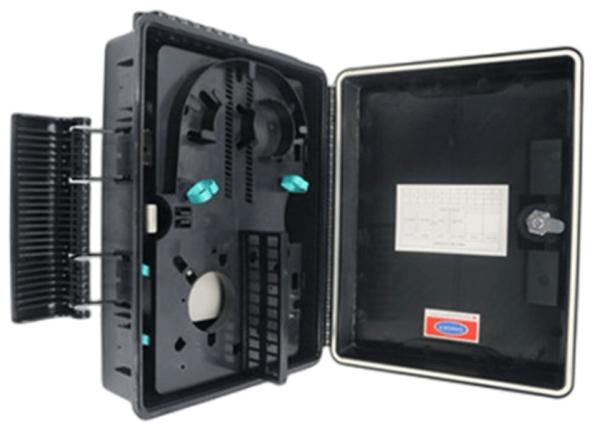

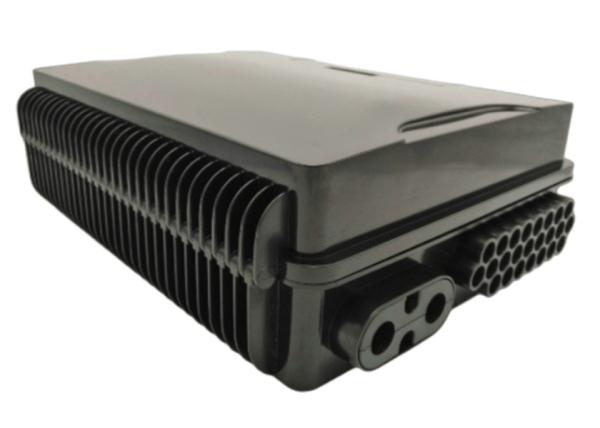

Details Picture



24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB

24Port Fiber Optic Enclosure Wall Mount / Pole Mount APC / UPC FTTB
