24Port Fiber Optic Terminal Box FATB Indoor/Outdoor SC/LC/FC/ST Aerial-hanging

Description

FATB-0424A fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

♦ Water-proof design with IP-65 Protection Level.

♦ Integrated with flap-up splice cassette and adapter holder.

♦ Maximum 120F splice capacity, stainless anti-rust bolts and nuts.

♦ Easy for maintenance and expansion.

♦ Fiber bend radius control more than 40 mm.

♦ 180 degree access with buckled lock structure.

♦ 3 pcs of 1*8 PLC Splitter can be installed.

♦ 24 pcs of mechanical ports for 3-7 mm drop cable.

♦ 1 mid-span cable entrance (10-16.5 mm) for uncut cable and 2 reserved cable entrances for distribution cable gland (8-13.5 mm).

Configuration

Application

♦ Wall-mounted Installation

♦ Pole-mounted Installation

♦ Aerial-hanging Installation

♦ Suitable for 2X3 mm indoor FTTH drop cable and outdoor 4-7 mm figure-8 self-supporting drop cable

Standard Accessories

♦ Splice cassette and cable management tool

♦ Installation nuts and bolts

♦ Protection sleeves

♦ Hose clamp

♦ Cable tube

♦ Key

♦ Wrench

♦ Rubber seal for cable entrance

Optional Accessories

♦ Pole mounted kits

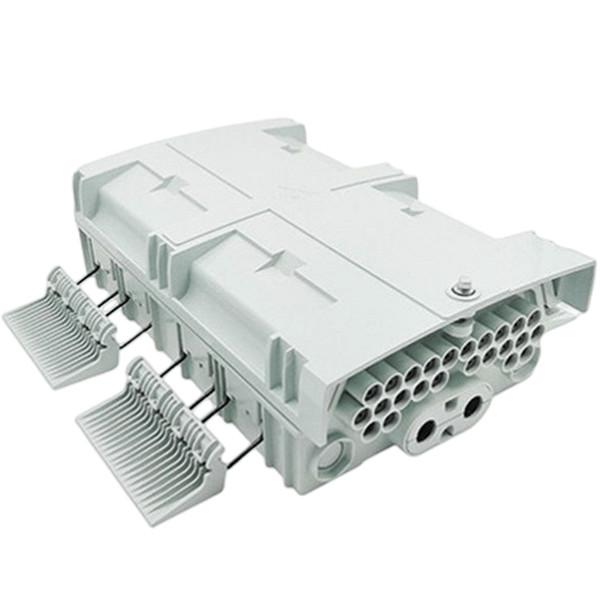

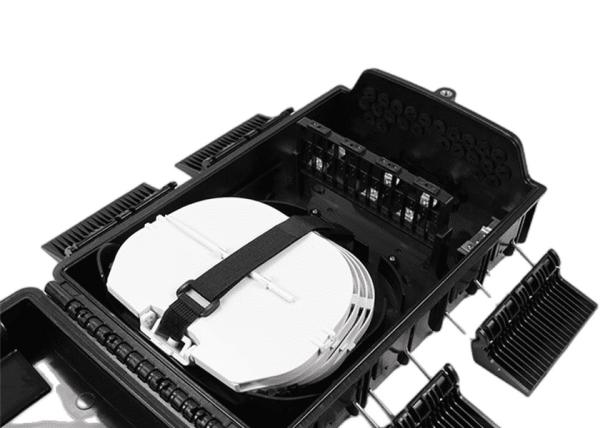

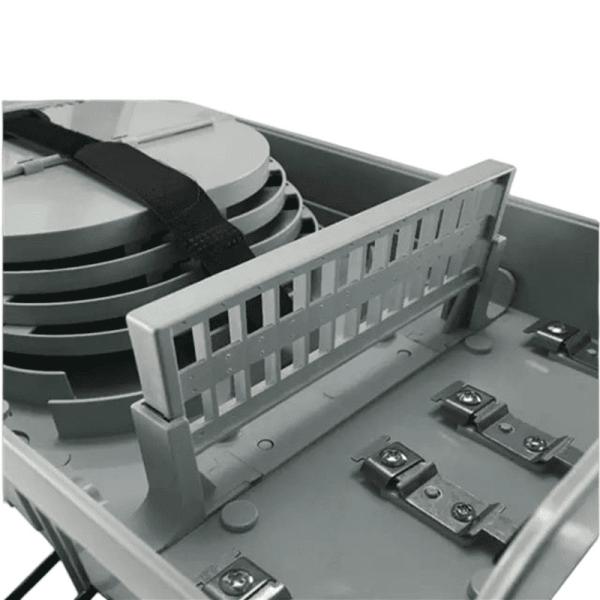

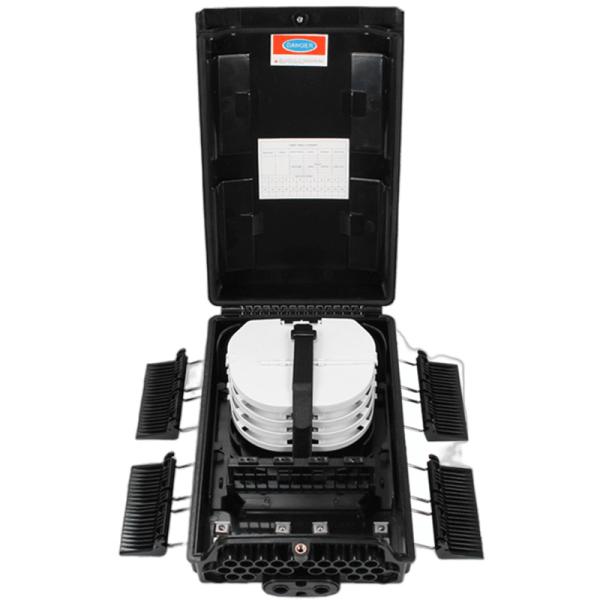

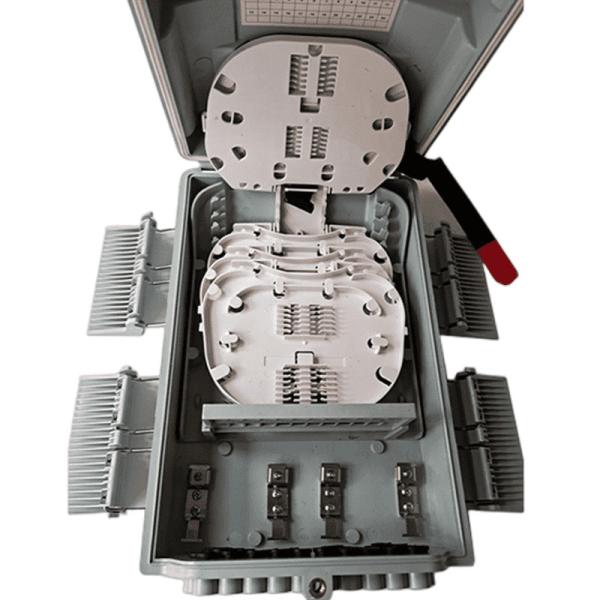

Details Picture

Packaging Details
