Self Supporting 1300nm GYTC8S Optic Fiber Cable 12core
Self Supporting 1300nm GYTC8S Optic Fiber Cable 12core
Self Supporting 1300nm GYTC8S Optic Fiber Cable 12core
Self Supporting 1300nm GYTC8S Optic Fiber Cable 12core
Specifications
Brand Name :
KNOFC
Model Number :
GYTC8S 12 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
2-288 core
Central Strength member :
Steel wire
Protective layer :
Corrugated steel tape
Outer sheath material :
HDPE
Installation :
Self- supporting Aerial
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

Self Supporting GYTC8S Figure 8 Fiber Optic Cable 12 Core Armored Optic Cable

Description:

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
◆ The following measures are taken to ensure the cable watertight:
➢ Steel wire used as the central strength member
➢ Loose tube filling compound
➢ 100% cable core filling
➢ PSP enhancing moisture-proof
➢ Water-blocking material

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Cable Mechanical Characteristic:

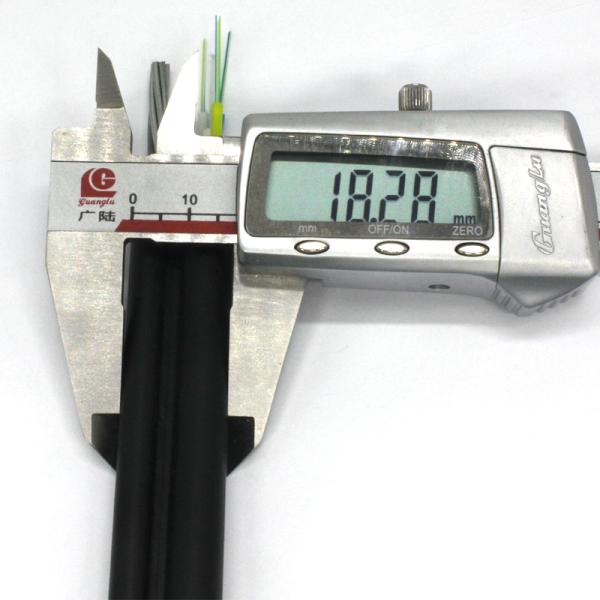

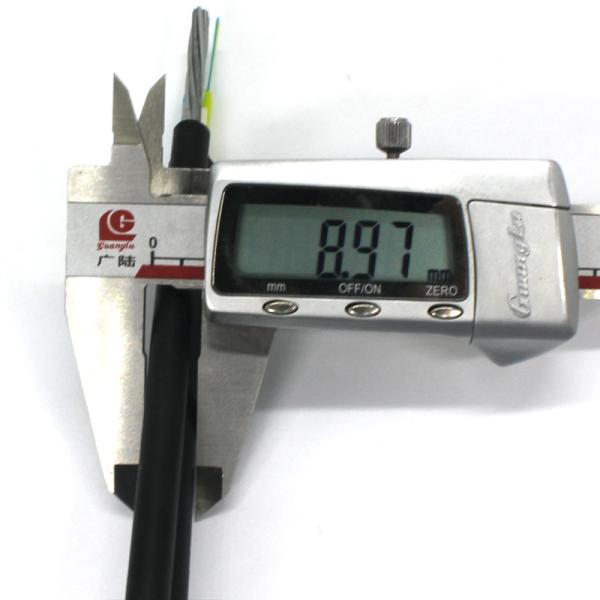

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYTC8S-2~36 8.6*15 140 600/1500 300/1000 20D/10D -20~+70
GYTC8S-38~72 10.5*16.9 190
GYTC8S-74~96 12*19 250
GYTC8S-98~120 13*20 270
GYTC8S-122~144 15*22 305
