HDPE GYXTW Central Tube Aerial Cable 6core SM Steel Wire
HDPE GYXTW Central Tube Aerial Cable 6core SM Steel Wire
HDPE GYXTW Central Tube Aerial Cable 6core SM Steel Wire
HDPE GYXTW Central Tube Aerial Cable 6core SM Steel Wire
Specifications
Brand Name :
KNOFC
Model Number :
GYXTW 6 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Corning or as your request
Fiber count :
2-24 core
Strength member :
Steel wire
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

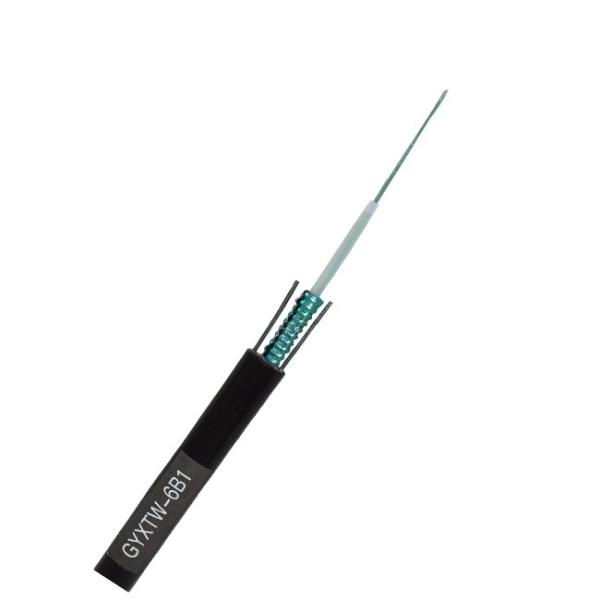

GYXTW Cable Central Tube Outdoor Aerial 6 Core SM Fiber Optic Cable

Description:

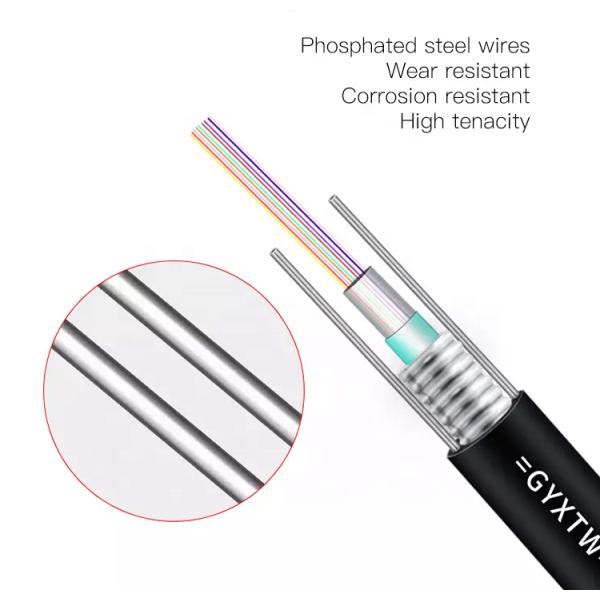

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics:

  • Low dispersion and attenuation.
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
  • Double-jacket structure make cable have nice properties of moisture resistance and crush resistance.
  • With small cable diameter, light cable weight, easily to lay.

Application:

1. Adopted to outdoor distribution.

2. Suitable for aerial, pipeline laying method.

3. Long distance and local area network communication.

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYXTW-2~24 8 70 600/1500 300/1000 20D/10D -40~+70
