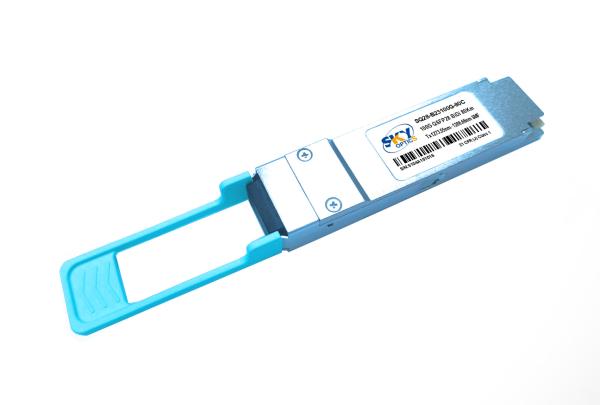

100G QSFP28 DWDM Transceiver 40km 6W Power O-Band
100G QSFP28 DWDM Transceiver 40km 6W Power O-Band
Specifications
Brand Name :
SkyOptics / OEM / ODM
Model Number :
SQ-100G-OD40-XXX5S
Certification :
CE / FCC / RoHs
Place of Origin :
China
MOQ :
1 unit
Price :
US$1~US$4999
Payment Terms :
,L/C,T/T,Western Union
Supply Ability :
100kpcs/month
Delivery Time :
Same Day Delivery~one Week
Packaging Details :
Plastic Tray/Plastic Bag/Customized
Transmission Distance :
40km
Power Dissipation :
< 6W
Form Factor :
QSFP28
Diagnostic Interface :
I²C with DDM
Tx Power :
2 to 7.1 dBm
Data Rate :
100Gbps (4x25Gbps NRZ to PAM4)
Rx Sensitivity :
≤ -16.5 dBm
Modulation Format :
PAM4
Hot Pluggable :
Yes
Power Supply :
3.3V
Hot Swappable :
Yes
Connector Type :
LC Duplex
LOS Assert :
-26 dBm
Description

Product Description


This energy-efficient 100G QSFP28 transceiver is designed for demanding network environments. It operates in the O-Band DWDM spectrum and supports up to 40km reach with best-in-class power efficiency (<6W). Its robust design ensures stable performance across a wide temperature range (0°C to 70°C), making it ideal for both data centers and outdoor applications.


Features

Power dissipation < 6W

Wide operating temperature: 0°C to 70°C

O-Band DWDM with 200GHz spacing

Integrated PFEC for enhanced error correction

Compliant with IEEE 802.3cd and CAUI-4

Digital diagnostics via I²C interface

LC duplex connector for easy integration

RoHS and safety certified


Technical Parameters

Parameter Details
Supply Voltage 3.3V
Power Consumption < 6W
Case Temperature:

0°C to 70°C
Wavelength

1304.58–1312.58nm

Tx Output Power

 2 – 7.1 dBm
Rx Sensitivity ≤ -16.5 dBm
LOS Assert -26 dBm
Rx Sensitivity: -16.5 dBm
Channel Spacing 200GHz
Link Budget > 18.5 dB
Data Rate 100Gbps (PAM4)
Distance 40km over SMF
Connector LC Duplex


Applications

Cloud data center interconnects

5G fronthaul and midhaul networks

High-speed enterprise networks

Network function virtualization (NFV) platforms
