Specifications
Brand Name :
Cisco
Model Number :
C9200L-24P-4G-E
Certification :
CE
Place of Origin :
China
Payment Terms :
T/T,Western Union
Delivery Time :
1~3 Days
License Level :
Essentials (E)
Power Supply :
600W AC (PWR-C5-600WAC or PWR-C6-600WAC)
Product Type :
Fixed Configuration Switch
Input Voltage :
100–240V AC, 50/60Hz
Switching Capacity :
96 Gbps
Description

C9200L-24P-4G-E Overview

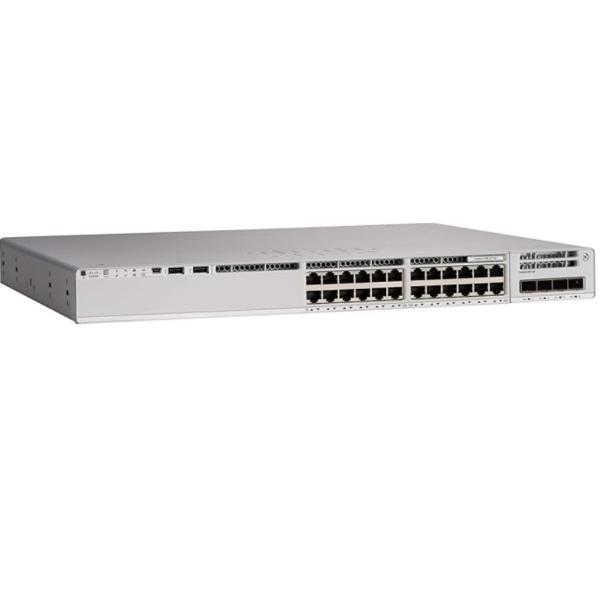

The Cisco C9200L-24P-4G-E is an enterprise-class managed switch that forms part of the renowned Catalyst 9200L Series of the Cisco brand, tailored for robust business and campus network deployments.


C9200L-24P-4G-E Catalyst 9200L 24-port PoE+ Switch With 4x 1G Uplinks Supporting Network Essentials For Secure And Scalable Enterprise NetworkingC9200L-24P-4G-E Catalyst 9200L 24-port PoE+ Switch With 4x 1G Uplinks Supporting Network Essentials For Secure And Scalable Enterprise Networking

Hardware / Physical Specs

Spec Detail
Downlink ports 24 × 10/100/1000 Mbps PoE+ copper ports
Uplink ports 4 × 1G SFP fixed uplinks
PoE Budget ~ 370 W with primary AC supply
Switching Capacity (non-stacked) 56 Gbps
Forwarding Rate ≈ 41.66 million packets/sec (Mpps)
Stacking Bandwidth 80 Gbps
Buffer / Memory DRAM: 2 GB; Flash: 4 GB

Physical / Power / Environmental

Parameter Value
Dimensions (HxWxD) ~ 1.73 × 17.5 × 11.3 in (~4.4 × 44.5 × 28.8 cm)
Weight ~ 10.4 lb ≈ 4.71 kg
Power Supply Internal AC 100-240 V; part number PWR-C5-600WAC is typical default.
Fans Fixed & redundant fans
Operating Temperature ~ 0 to 45 °C (32-113 °F)
Operating Humidity 5-90%, non-condensing

Capacity & Other Limits

  • Number of MAC addresses: ~16,000 entries

  • VLAN IDs supported: 4096

  • Max active VLANs: 1024

  • Switching / Forwarding when stacked (performance) increases accordingly.
