Specifications
Brand Name :
Cisco
Model Number :
ISR4431-K9
Certification :
CE
Place of Origin :
CHINA
name :
ISR4431-K9
model :
Cisco ISR 4431 4GE 3NIM 8G FLASH 4G DRAM IP Base Detail 500Mbps-1Gbps system throughput, 4 WAN/LAN ports, 4 SFP
Aggregate Throughput :
500 Mbps to 1 Gbps
Rack height :
1 RU
Warrranty :
1 year
shipping :
DHL&FeDex
Onboard ISC slot :
1
SFP-based ports :
4
Power-supply options :
Internal: AC DC and PoE
payment :
TT/paypal
Description

ISR4431 K9 Overview

Cisco 4431 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.

Quick Specs

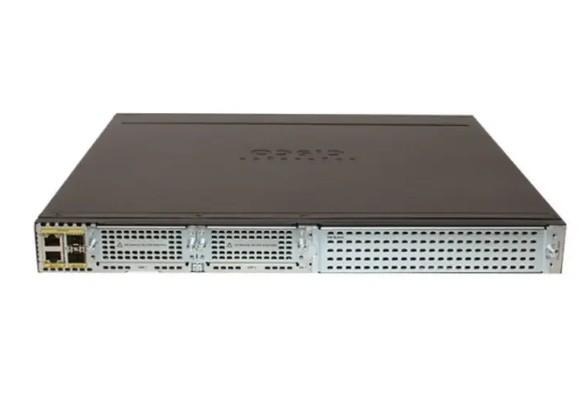

Figure 1 shows the appearance of Cisco ISR4431/K9.

ISR4431-K9 Supports 3 Network Interface Modules NIM Slots Delivers 500 Mbps To 1 Gbps Aggregate Throughput

Table 1 shows the Quick Specs.

Product Code Cisco ISR4431/K9
Aggregate Throughput 500 Mbps to 1 Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module (SM-X) slot 0
NIM (Network Interface Modules) slots 3
Onboard ISC slot 1
DDRM (data plane) 2 GB (default) / 2 GB (maximum)
DDRM (control/services plane) 4 GB (default) / 16 GB (maximum)
Flash Memory 8 GB (default) / 32 GB (maximum)
Power-supply options Internal: AC, DC, and PoE
Rack height 1 RU
Dimensions (H x W x D) 43.9 x 438.15 x 507.2 mm
Package Weight 20.88 Kg

Product Details

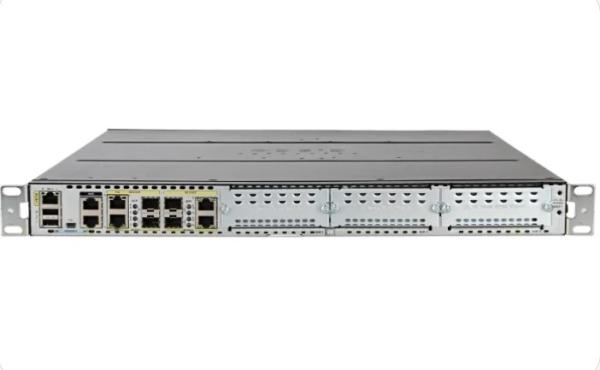

Figure 2 shows the front panel of Cisco ISR4431/K9.

ISR4431-K9 Supports 3 Network Interface Modules NIM Slots Delivers 500 Mbps To 1 Gbps Aggregate Throughput

Note:

① Power supply unit ③ Router power On/Off switch
② LEDs ④ Optional power supply unit

·LEDs include 12 indicators.


ISR4431-K9 Supports 3 Network Interface Modules NIM Slots Delivers 500 Mbps To 1 Gbps Aggregate Throughput
ISR4431-K9 Supports 3 Network Interface Modules NIM Slots Delivers 500 Mbps To 1 Gbps Aggregate Throughput
