Specifications
Brand Name :
Huawei
Model Number :
AirEngine 5761-10WD/11WD
Certification :
CE
Place of Origin :
China
Name :
AirEngine 5761 - 11WD Huawei's Wi - Fi 6 remote unit ( RU )
Single gross weight :
3.000 kg
Package Type :
new in the box.
Warranty :
1 Year
Single package size: :
57X5X32 cm
Selling Units :
Single item
Type :
Enterprise Wireless Access Point
Description

AirEngine 5761 - 11WD Huawei's Wi - Fi 6 remote unit ( RU )

AirEngine 5761-11WD is Huawei's Wi-Fi 6 remote unit (RU). It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing userswireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.

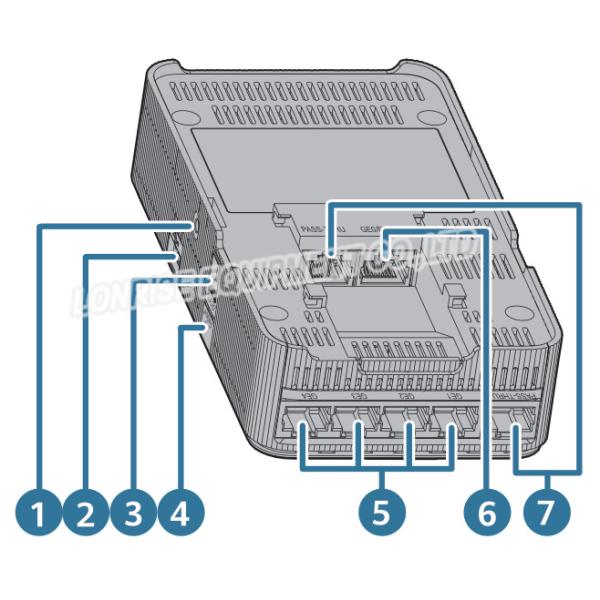

Appearance of the AirEngine 5761-11WD
Port description

No.

Name

Description
1 Captive screw hole Accommodates a captive screw.
2 USB Connects only to an IoT device for IoT application extension and supports USB 2.0.
3 DC 12V Connects to a 12 V power adapter.
4 Default Restores factory settings and restarts the device when you hold down the button more than 3 seconds.
5 GE1 to GE4 10/100/1000M auto-sensing port that connects to the wired Ethernet.
6 GE0/PoE_IN 10/100/1000M auto-sensing port that connects to the wired Ethernet and supports PoE input.
7 PASS-THRU A pair of RJ45 pass-through ports for transparent transmission and interconnection with Ethernet cables or telephone lines.
