Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module
Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module
Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module
Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module
Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module
Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module
Specifications
Brand Name :
Siemens
Model Number :
6ES7317-2EK14-0AB0
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
PFX5-CCL-MS :
PLC Industrial Control
Part Number :
6ES7317-2EK14-0AB0
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
6ES7317-2EK14-0AB0
Description
Sinamics 6ES7317-2EK14-0AB0 Overview

The 6ES7317-2EK14-0AB0 is a high-performance central processing unit for the SIMATIC S7-300 automation system, designed for demanding machine and factory automation tasks. It integrates 1 MB work memory and dual communication interfaces: an MPI/DP port (up to 12 Mbps) for fast fieldbus communication and an integrated PROFINET Ethernet port with 2-port switch for modern industrial networking.

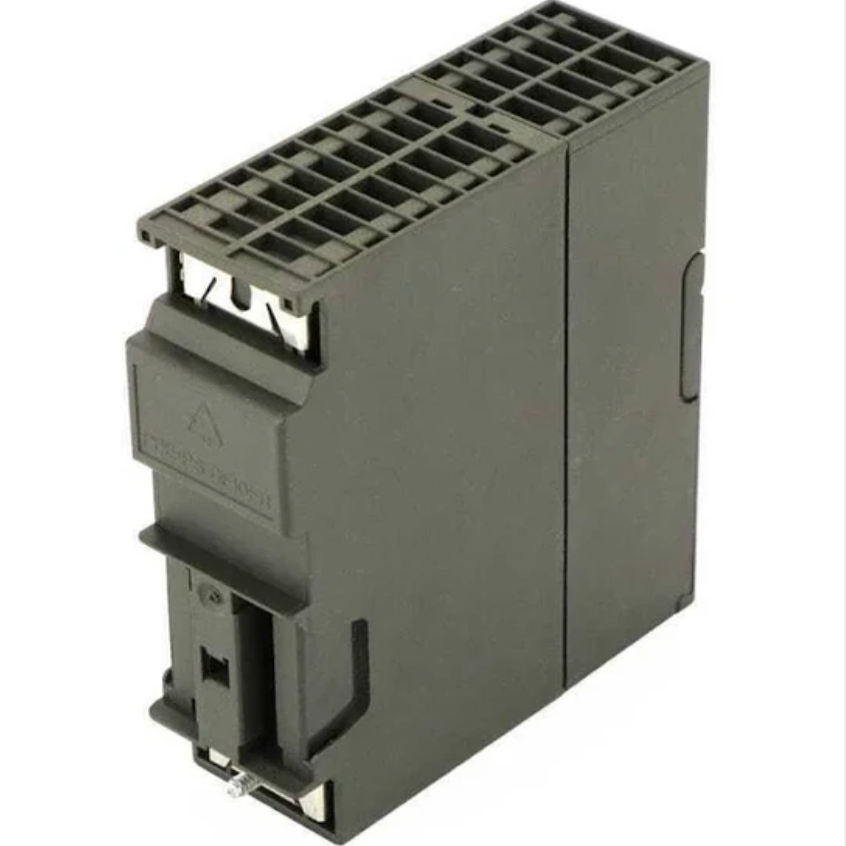

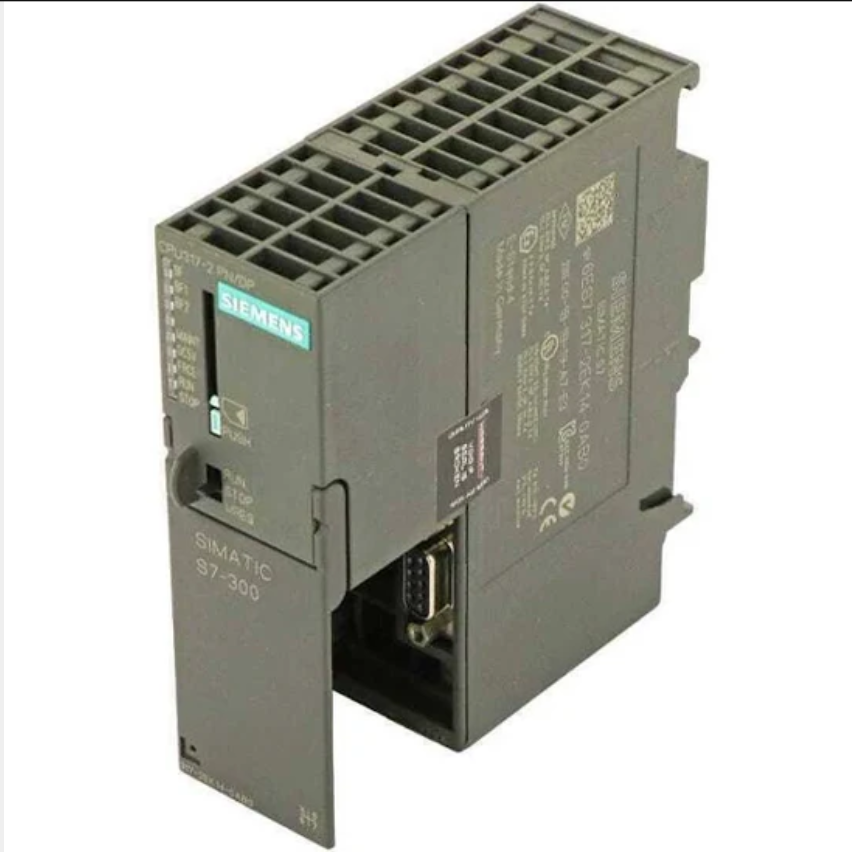

Figure 1 shows the front panel of 6ES7317-2EK14-0AB0.

Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module













Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module













Quick Specs.

Table 1 shows the Quick Specs

Item Details
Type CPU 317-2 PN/DP
Series SIMATIC S7-300
Work Memory 1 MB
Interfaces MPI/DP 12 Mbps; PROFINET 2-port switch
Power 24 V DC
Dimensions 40 × 125 × 130 mm




Full Specification Table

Parameter Specification
Order Number 6ES7317-2EK14-0AB0
Product Name CPU 317-2 PN/DP
Brand Siemens
Supply Voltage 24 V DC (20.4–28.8 V DC)
Working Memory 1 MB
Interface 1 MPI/DP, max. 12 Mbit/s
Interface 2 PROFINET Ethernet, 2-port switch
Weight Approx. 0.38 kg
Dimensions (W×H×D) 40 mm × 125 mm × 130 mm
Operating Temp 0 °C … +60 °C
Programming STEP 7 V5.5 or higher
Memory Card Micro Memory Card required





Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module
Siemens 6ES7317-2EK14-0AB0 SIMATIC S7‑300 CPU 317‑2 PN/DP Original Module
