J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF
J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF
J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF
J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF
Specifications
Brand Name :
Aruba
Model Number :
J9150D
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
Optical Transceiver Module
Part Number :
J9150D
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
J9150D
Description

Aruba J9150D Overview


J9150D is an Aruba 10G SFP+ LC SR 300m MMF XCVR.



Supported Devices

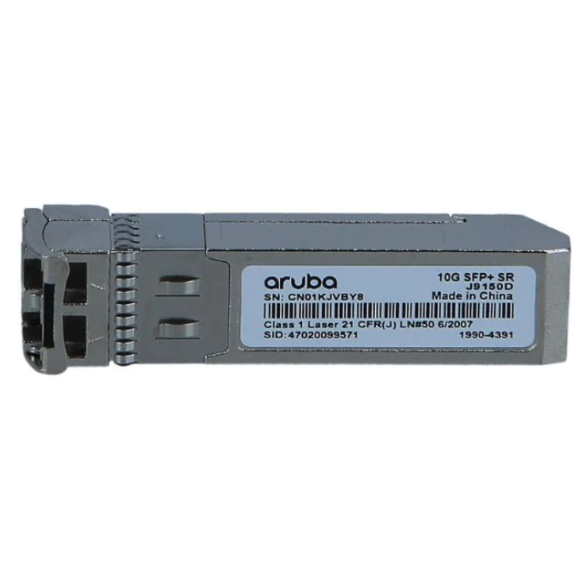

Figure 1 shows the front panel of J9150D.


J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF

J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF


Quick Specs

Table 1 shows the Quick Specs.

Product Name (SKU)

DOM - Digital Optical Monitoring (4x4 part #)

Central we (nm)

Fiber mode

Fiber diameter (µm)

Bandwidth (MHz*km)

Transmis-ion distance

Aruba 10G SFP+

LC SR 300m MMF

XCVR (J9150D)

Yes

(1990-4391,

1990-4175)

850

MMF

50/125

4700 (OM4)

400 m (1312.34 ft)

2000 (OM3)

300 m (984.25 ft)

500 (OM2)

82 m (269.03 ft)

400

66 m (216.54 ft)

62.5/125

200 (OM1)

33 m (108.27 ft)

160

26 m (85.30 ft)



Aruba J9150D Specification

J9150D Specification

Product name (SKU)

Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D)

DOM - Digital Optical Monitoring (4x4 part #)

Yes

(1990-4391 &

1990-4175)

Central wl (nm)

850

Fiber mode

MMF

Fiber diameter (µm) | Modal bandwidth (MHz*km) | Transmission distance

50/125 | 4700 (OM4), 2000 (OM3), 500 (OM2), 400 | 400 m (1312.34 ft), 300 m (984.25 ft), 82 m (269.03 ft), 66 m (216.54 ft)

62.5/125 | 200 (OM1), 160 | 33 m (108.27 ft), 26 m (85.30 ft)

Optical parameters (dBm)

Transmit power

–7.3 to –1

Optical parameters (dBm)

Receive power

–9.9 to +0.5

Product dimensions (H x W x D)

0.6 x 2.2 x 0.5 in

Weight

0.1 lb (0.05 kg)







J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF

J9150D, Aruba 10G SFP+ LC SR Transceiver, 10G SFP+/LC/300m MMF
